8 Camera IP NVR (8 POE, Up To 8MP)
This NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user friendly mouse driven interface with full remote network and mobile phone access. The NVR can auto detect ONVIF compatible IP cameras; it can support up to 8MP IP cameras and includes 8 POE ports to power POE cameras locally.
- 8 Channel Video & Audio
- Plug & Play 8 Port POE
- Supports up to 8MP IP Cameras
- Bandwidth IN: 64Mbps, OUT: 48Mbps
- HDMI & VGA Output
- ONVIF Compliance (Profiles S, G, C, Q, A, T)
- Supports H.264 and H.265
- Mac Compatible
Video/Audio Input
Video Input:
8ch H.264/H.265
Incoming Bandwidth:
64Mbps
Outgoing Bandwidth:
48Mbps
Supported Technologies:
IP
Video/Audio Output
Live View/ Playback/ Recording Resolution:
8MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIF
Frame Rate:
8MP, 5MP, 4MP, 3MP, 1080P@30fps
Playback Capacity:
8ch 720P/4ch 1080P/2ch 4MP/1ch 8MP
HDMI Output:
3840x2160, 1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768
Hard Disk
Drive quantity:
Up to 1 SATA drives
Drive capacity:
Up to 8TB
Network
Network Interface:
1 RJ45 10M/100M
Protocol:
RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoE
POE Interface:
8Ch 100Mbps, IEEE802.3af/IEEE802.3at
POE Max Power:
30W for single port/75W for all ports
General
Power Supply:
DC52V
Power Consumption:
Max ≤9W (without HDD, USB)
Operating Temperature:
-10°C ~ 55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
260mm(W) x 240mm(D) x 46mm(H)
Application
Supported OS:
Windows 7+, MacOS X 10.11+
Remote Software:
Internet Explorer 9+, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
EZView
Notifications:
Email or Push

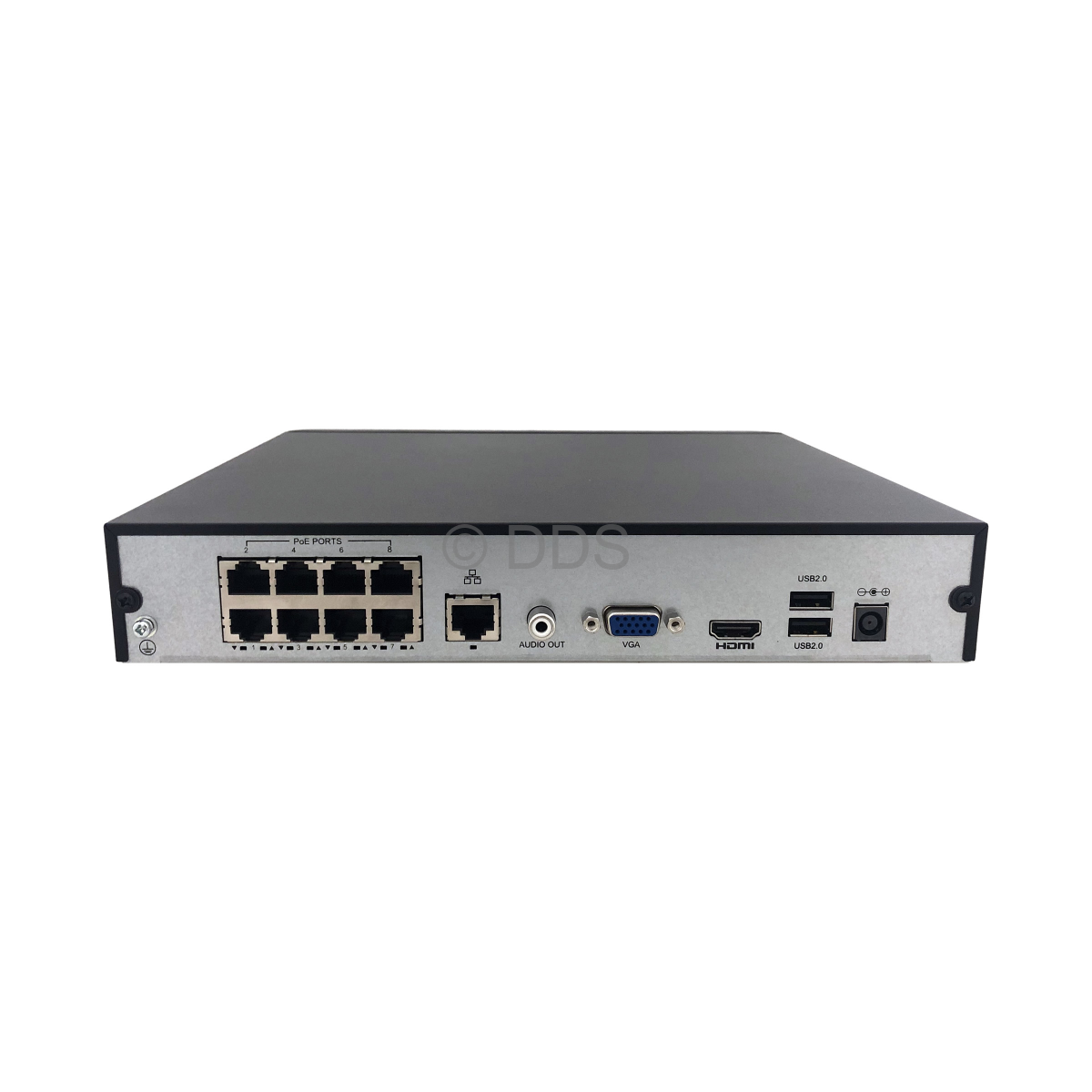

Interface
Video Outputs:
HDMI (x1), VGA (x1)
USB:
USB 2.0 (x2)
Audio I/O:
N/A
Alarm I/O:
N/A
PTZ Control:
Onvif
Control:
Mouse control
