12-24V PSU for Hub2/Hub2 Plus/ReX2

Home/Ajax Alarms/Ajax Accessories/12-24V PSU for Hub2/Hub2 Plus/ReX2

1 of 16

Save
100%

Call us for a price

Order Code: AJX-12-24VPSU2(27418/59359)

Description

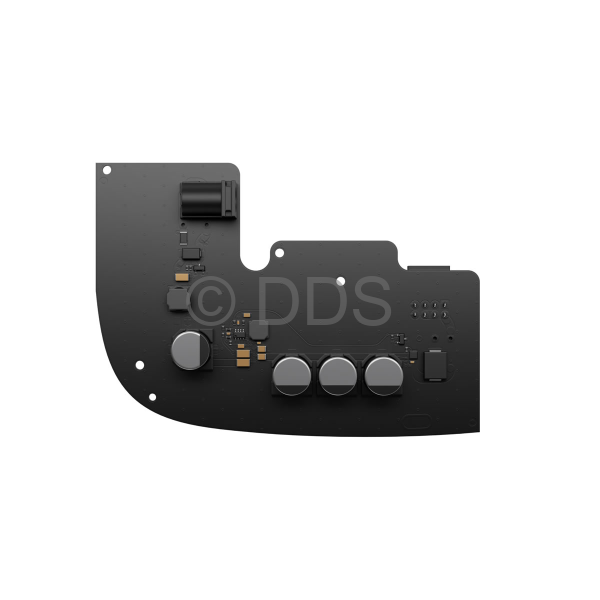

A power supply unit, connecting Hub 2, Hub 2 Plus or ReX 2 to low-voltage power sources. This allows you to use Ajax in premises lacking electricity or having an unstable power supply. A 12V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery. The 12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.

- Allows Ajax control panels to be used with 12V DC
- Can be used with a portable battery for caravans, trailers or yachts
- Features a standard socket for connecting the power jack plug and has a bundled terminal adapter.

Technical Specifications
Classification	12-24V Power Supply Unit
Compatibility	Operates with Hub 2, Hub 2 Plus and ReX 2 only
Input voltage	8-32V DC
Output voltage	4.8 V ± 5%
Switch-on voltage	8 V ± 2.5%
Switch-off voltage	7-7.5 V (depending on load)
Input current	1А
Output current	1.5A
Connection	Socket: 6.5mm x 2 mm Plug: 5.5mm x 2.1 mm (power jack)
Dimensions	98mm x 70mm x 17mm
Weight	26g
