Ajax Alarm Control Hub 2 (4G)
Save
100%
100%

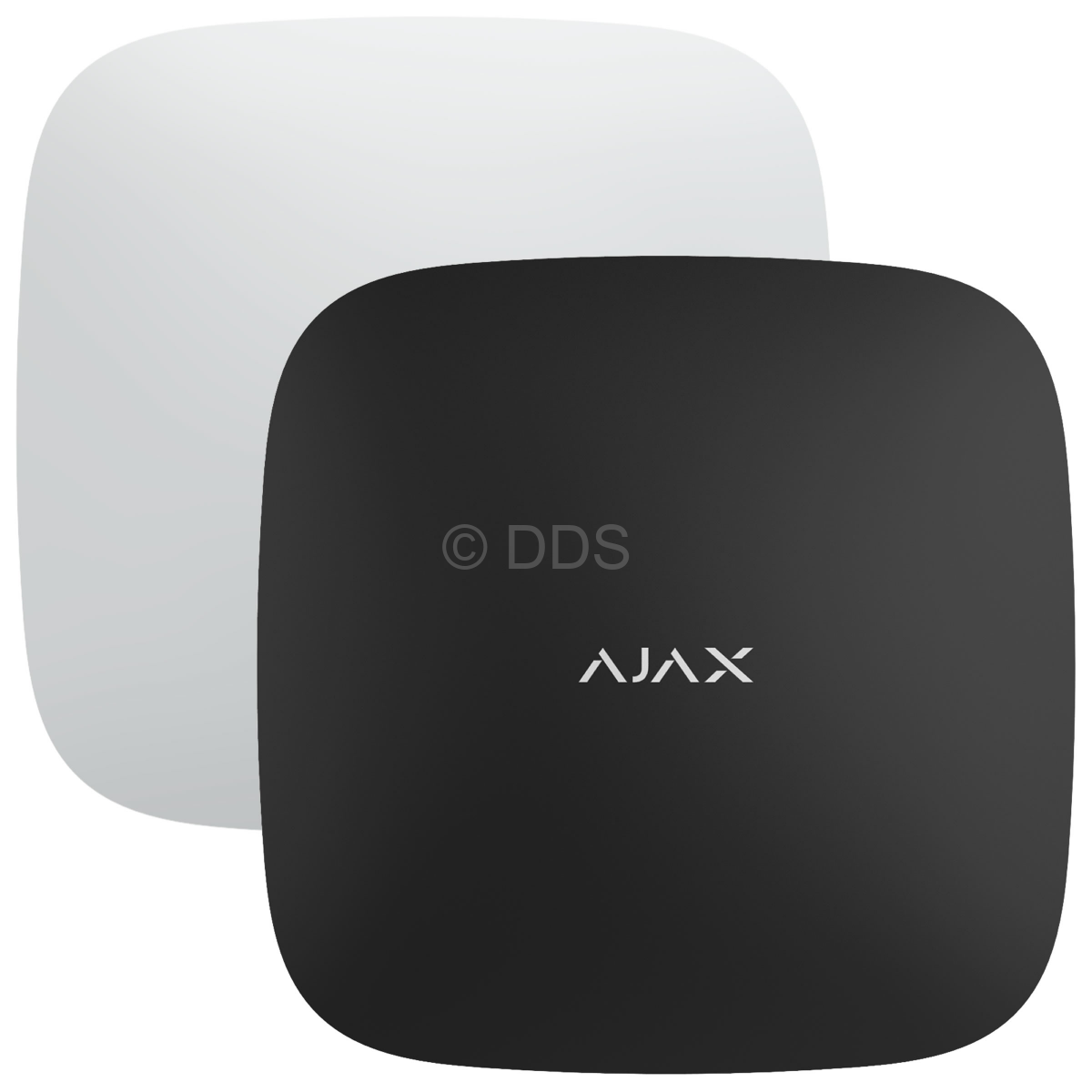

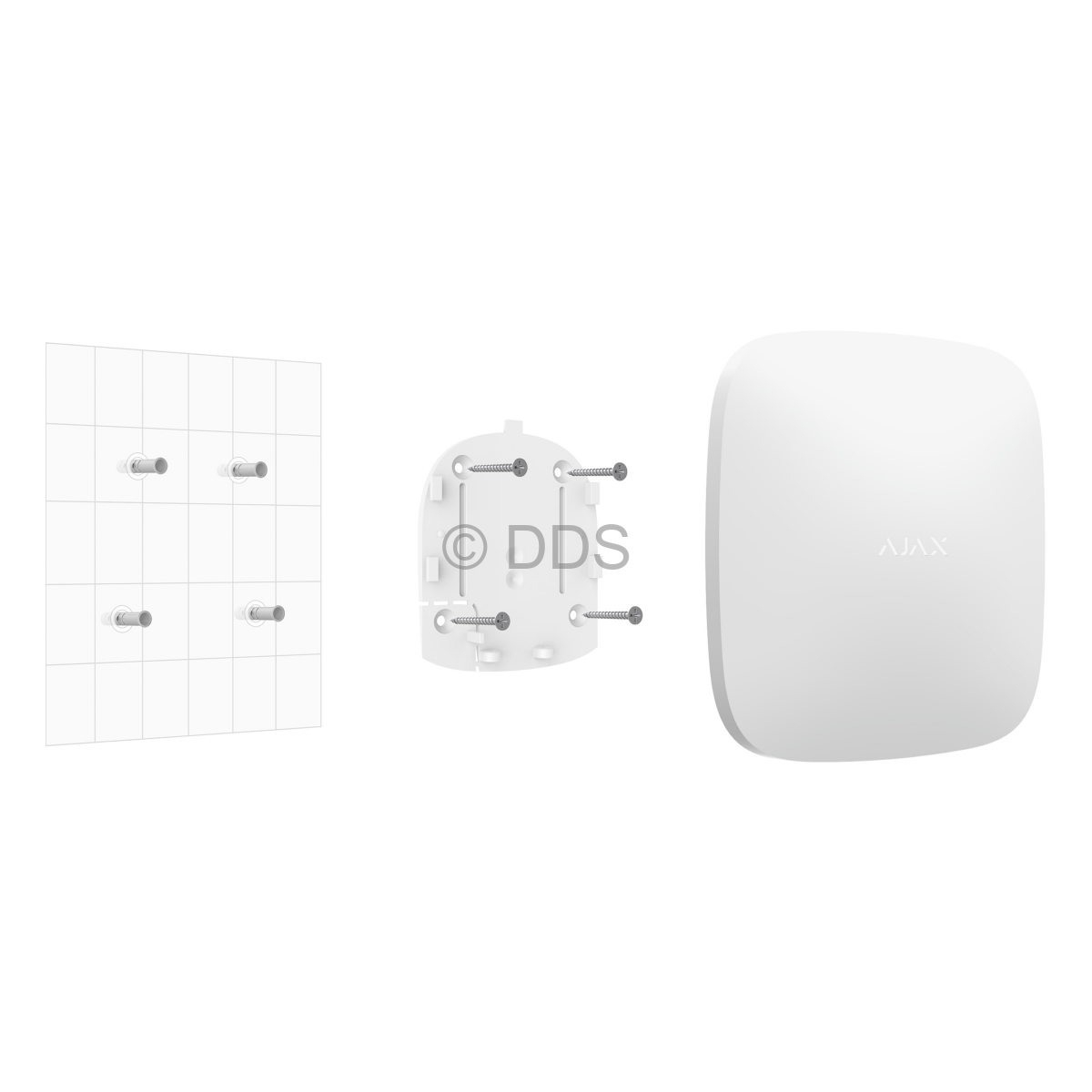

The Hub 2 intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station. The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.
- Connect up to 100 devices to the hub
- Up to 50 users per hub
- Supports the MotionCam
- Connects using ethernet or 2 Micro-SIM's
- Grade II rated
- Checks in with devices every 36 seconds (other systems tend to check in every 20 minutes)
- Built-in battery backup (2 А⋅h) for up to 16 hours of offline operation when power is switched off
- Compatible with iOS and Android
| Technical Specifications | |
| Classification | The radio channel central unit with GSM and Ethernet modules |
| Maximum number of devices connected to the hub | 100 |
| Maximum number of cameras connected to the hub | 25 |
| Maximum number of users | 50 |
| Maximum number of rooms | 50 |
| Maximum number of groups | 9 |
| Number of REX connected | 5 |
| Scenarios supported | 32 |
| Mobile apps | iOS 9.1 and later Android 4.1 and later |
| Communication channels | Ethernet GSM (850/900/1800/1900 MHz) |
| Alarm signal | Delivery time: 0.15 s Types of notifications: SMS message, call, push |
| Communication with Central Monitoring Station | Contact ID, SIA |
| Power supply |
Mains supply: 110−240 V |
| SIM card support | 2 x Micro-SIM 2G |
| Operating temperature range | +5°С to +40°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Video surveillance | Up to 25 cameras or DVRs |
| Dimensions | 163mm x 163mm x 36mm |
| Weight | 350g |
| Certification | Grade 2 (EN 50131), PD6662:2017, CE |
