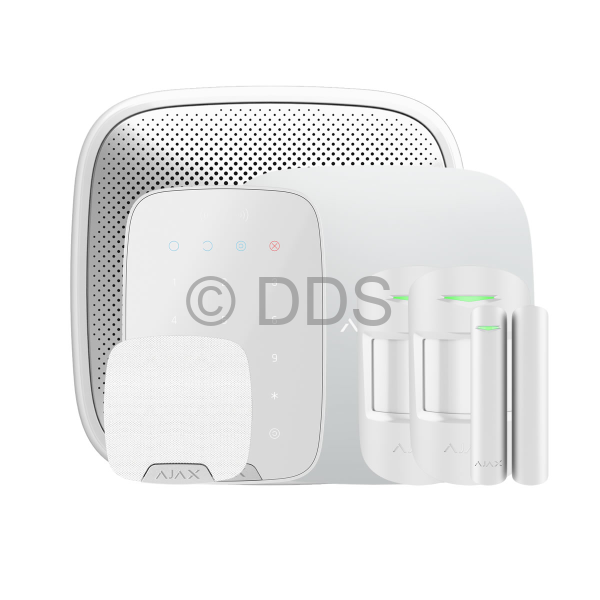

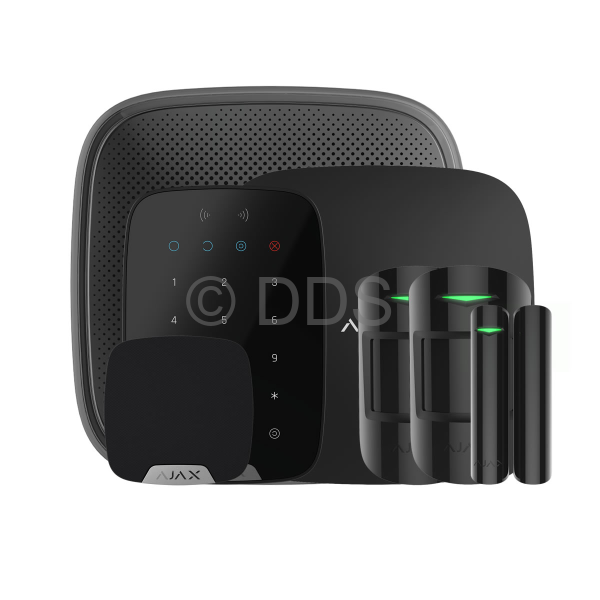

Ajax Alarm Kit 5 S (Superior)

The Hub 2 intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station. The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.

- Connect up to 100 devices to the hub
- Up to 50 users per hub
- Supports the MotionCam
- Connects using ethernet or 2 Micro-SIM's
- Grade II rated

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m

Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base. The device detects the door or window being opened by means of British-made high-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.

- Reed switch sensing element
- Alarm signal delivery time of 0.15 s
- Operates up to 7 years without battery replacement

Wireless touch keypad is used for arming/disarming of the Ajax security system. The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub. If an intruder tries to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station. The keypad is blocked automatically if the incorrect code is entered too many times. It can also be used with contactless access devices, such as cards, tags and smartphones.

- Activate the full security mode by pressing one button
- Duress code to raise a silent alarm if forced to enter the code by an intruder
- Use with Ajax cards or tags
- Grade II (EN 50131)
- Operates up to 4.5 years without battery replacement

Wireless outdoor siren that notifies of danger using sound and light. Resistant to dust, hail, and raindrops. Operates at a temperature of -25°С. The built-in accelerometer will raise the alarm if an attempt is made to remove the siren.

- Indicates armed/disarmed state by means of a built-in LED
- External LED can be connected
- Sound level configurable from 85dB to 113 dB at a distance of 1 m
- Alarm length configurable from 3s to 180s
- Grade II (EN 50131)
- IP54 rated
- Operates up to 5 years without battery replacement

Wireless indoor siren that loudly notifies of an alarm during detector activation. It is installed indoors to warn of danger or deter intruders. Sound level and alarm length are set in the mobile application.

- Indicates armed/disarmed state by means of a built-in LED
- External LED can be connected
- Sound level configurable from 81dB to 105 dB at a distance of 1 m
- Alarm length configurable from 3s to 180s
- Grade II (EN 50131)
