Curtain Outdoor Detector
Save
100%
100%

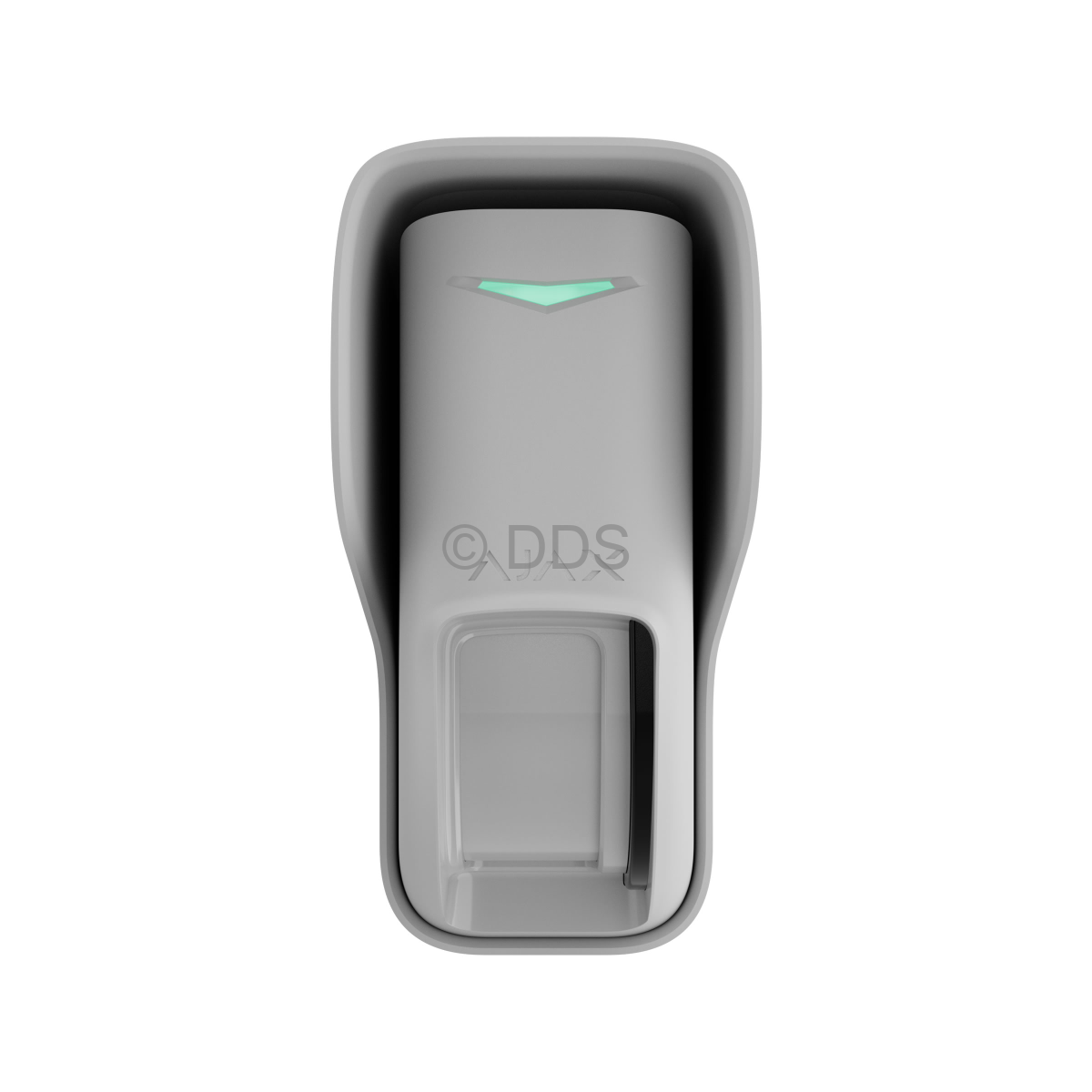

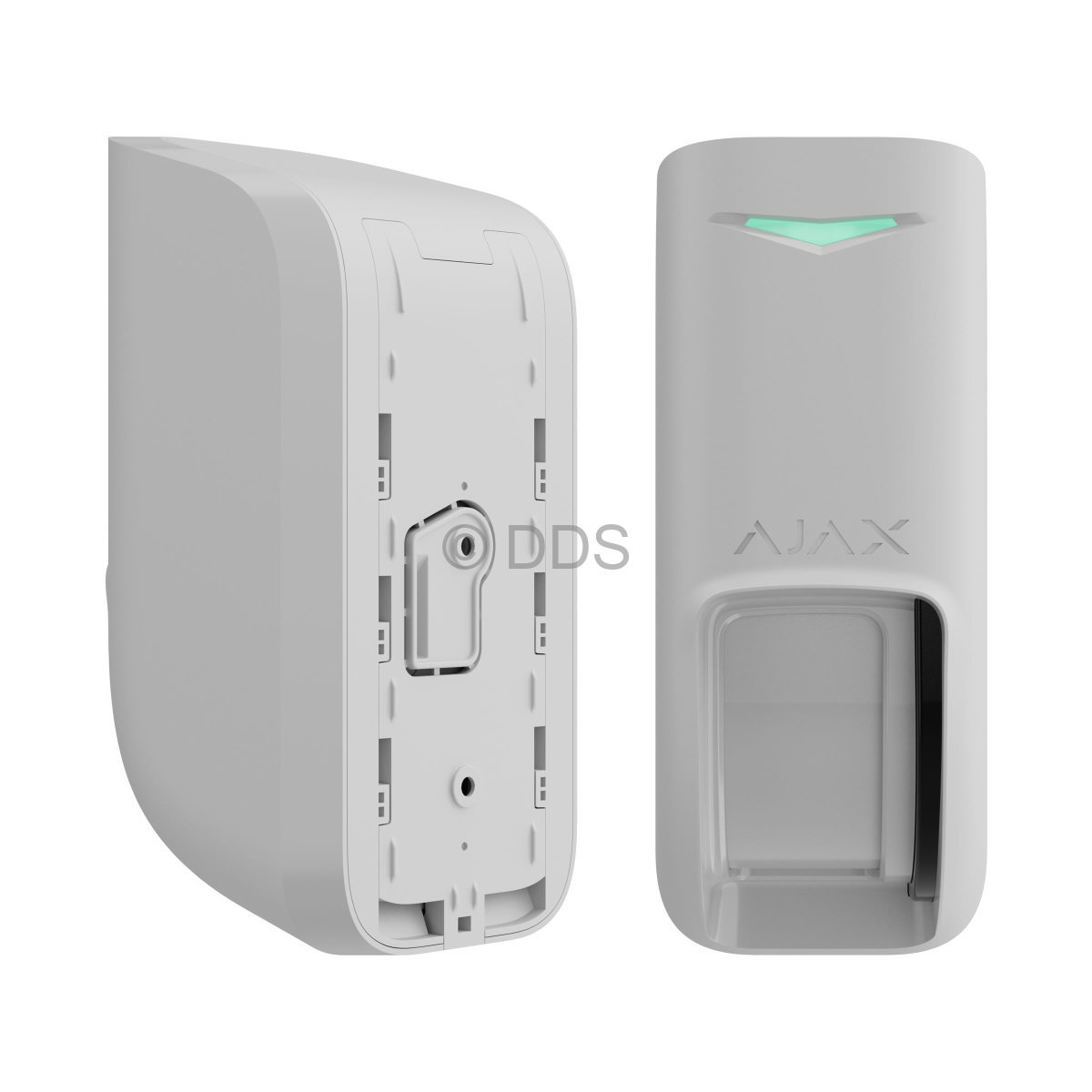

Curtain Outdoor Jeweller is a motion detector that covers the perimeter of a site with exceptional accuracy and a near-zero chance of false alarms. Featuring a unique optical system, the device looks over narrow sectors of up to 12 m long. Dual motion detection technology engaging two PIR sensors and one Ka-band microwave sensor allows filtering out false alarms caused by thermal noise, animals, or plants. The detection range and pet immunity mode are configured via a slider on the detector’s enclosure, and sensitivity is configured in Ajax apps to meet the site's specific needs. The pet immunity mode is designed to ignore the movement of animals up to 100 cm tall and minimize false alarms.
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Advanced anti-masking sensors
- Accurately detects motion in heat conditions, even at a temperature of +60°С
- Supplied with angle mount and hood
- Operates up to 3 years without battery replacement
| Technical Specifications | |
| Classification | Electro-optical radio channel security detector |
| Installation method | Indoors/Outdoors |
| Compatibility | Operates with Hub 2, Hub 2 Plus and ReX 2 (requires OS Malevich 2.11 or higher) |
| Sensing element | Two PIR sensors, One K-band microwave sensor |
| Alarm signal delivery time | 0.15s |
| Motion detection distance | From 1 to 12 m (depending on settings) for each optical system |
| Detection angles | Horizontally: 8° Vertically: 85°/15° |
| Time for motion detection | From 0.3 to 2 m/s |
| Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
| Power supply | Battery: 2 x CR123A Power supply voltage: 3 V Battery life: up to 3 years |
| Permissible humidity | Up to 95% |
| Protection class | IP55 |
| Operating temperature range | -25°С to +60°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Dimensions | 155mm х 77mm x 85mm (with hood) 141mm х 60mm x 72mm (without hood) |
| Weight | 223g (without hood) |
| Certification | Grade 2 EN 50131, PD6662:2017, CE |
