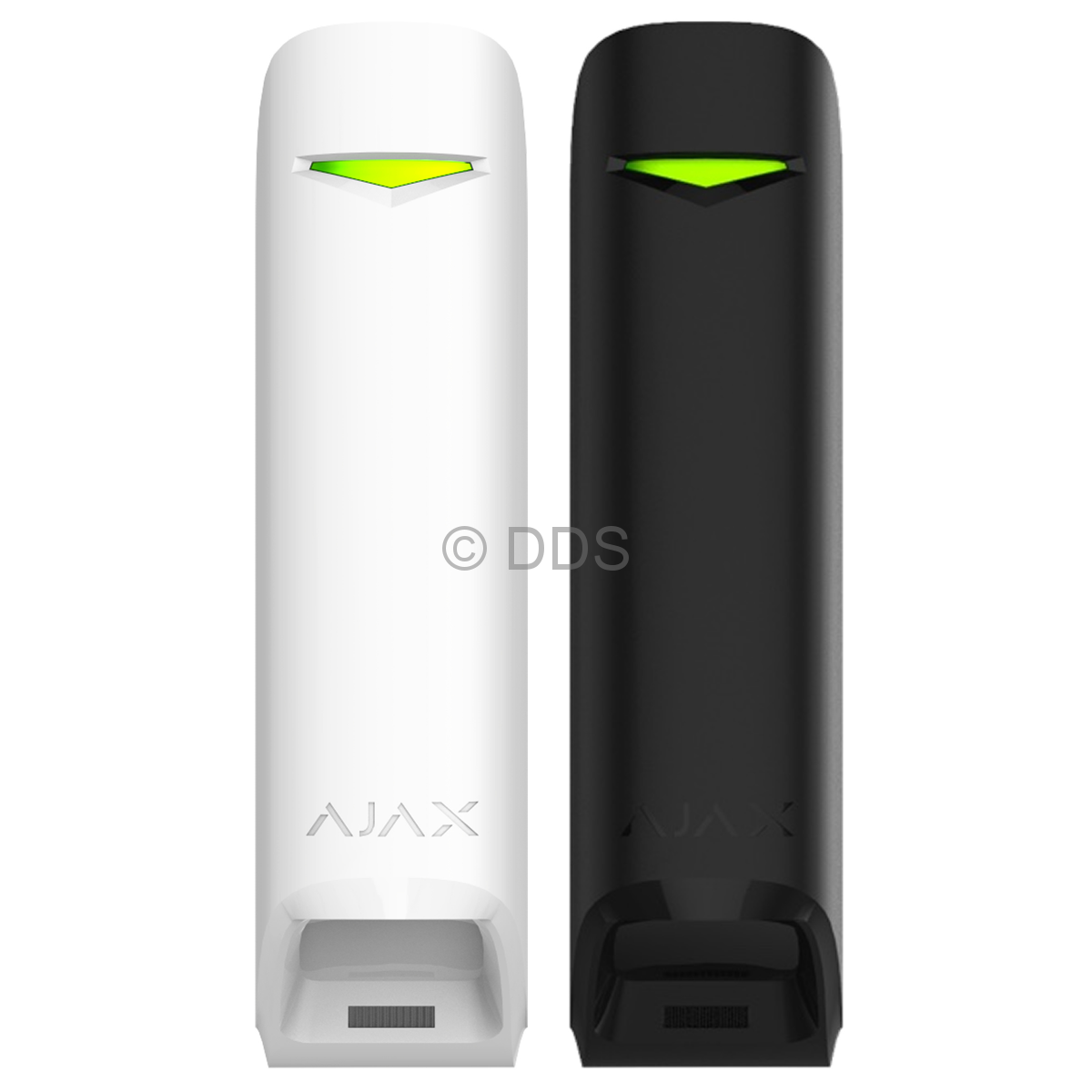

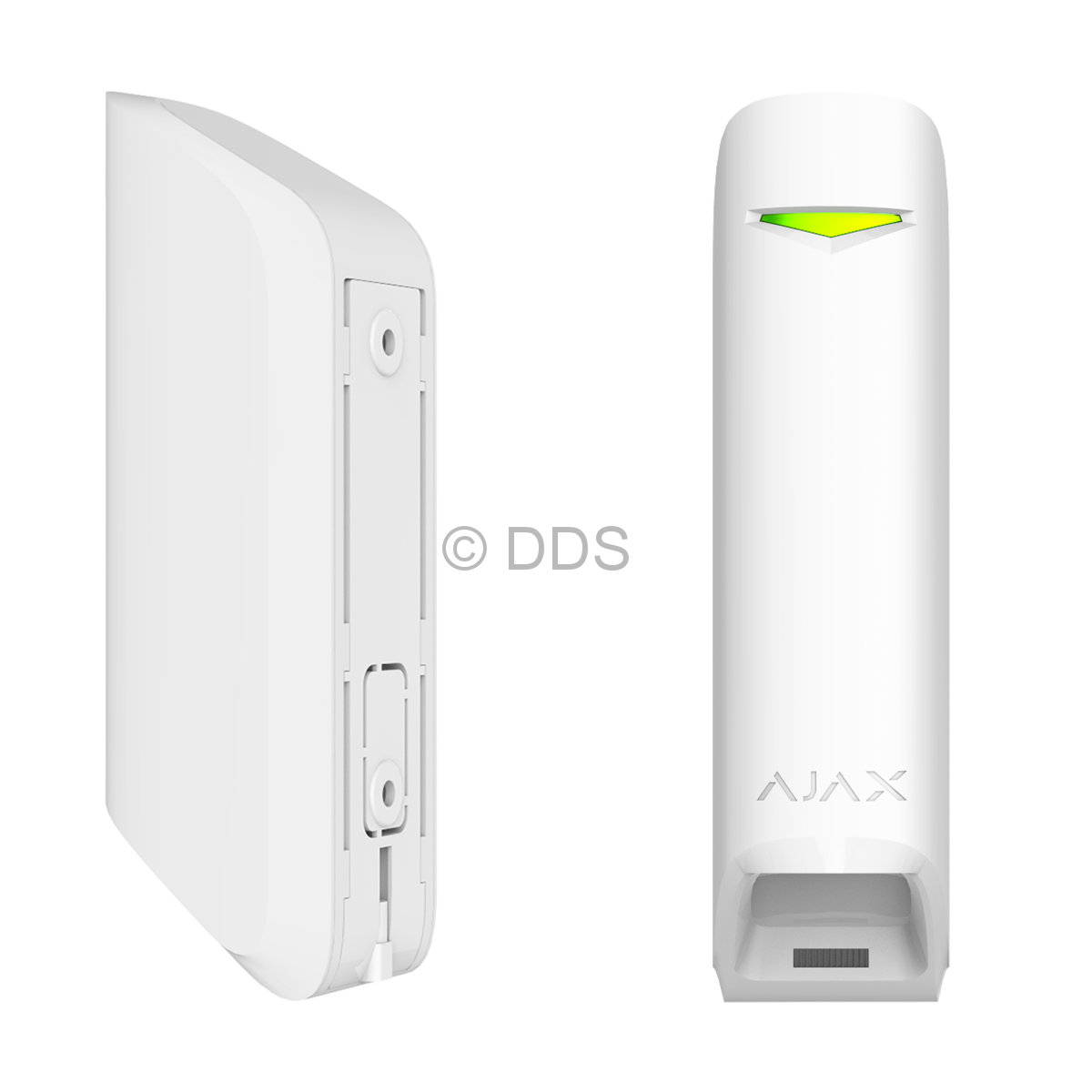

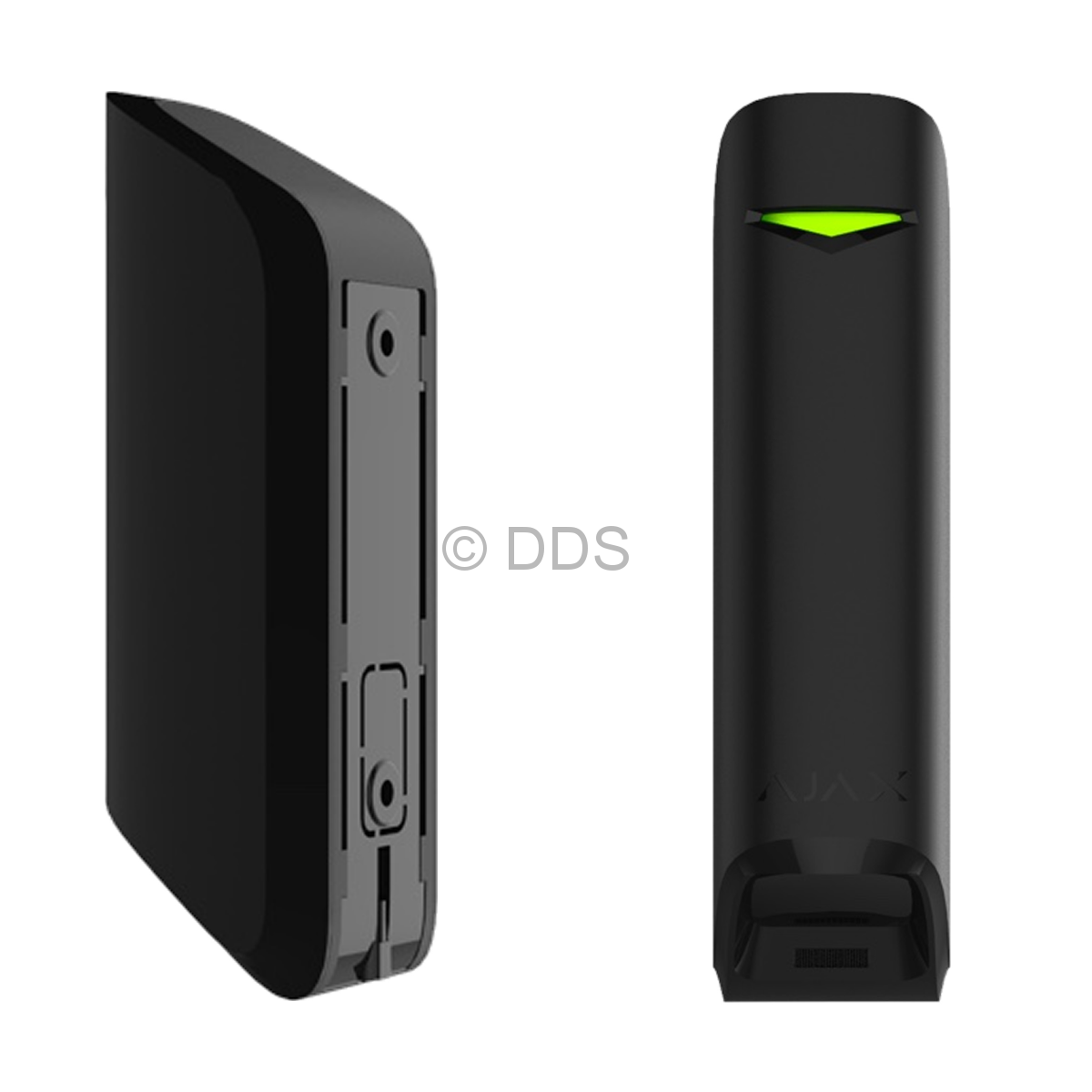

MotionProtect Curtain Detector

Call us for a price




AJX-MP-CUR(13268/22952)

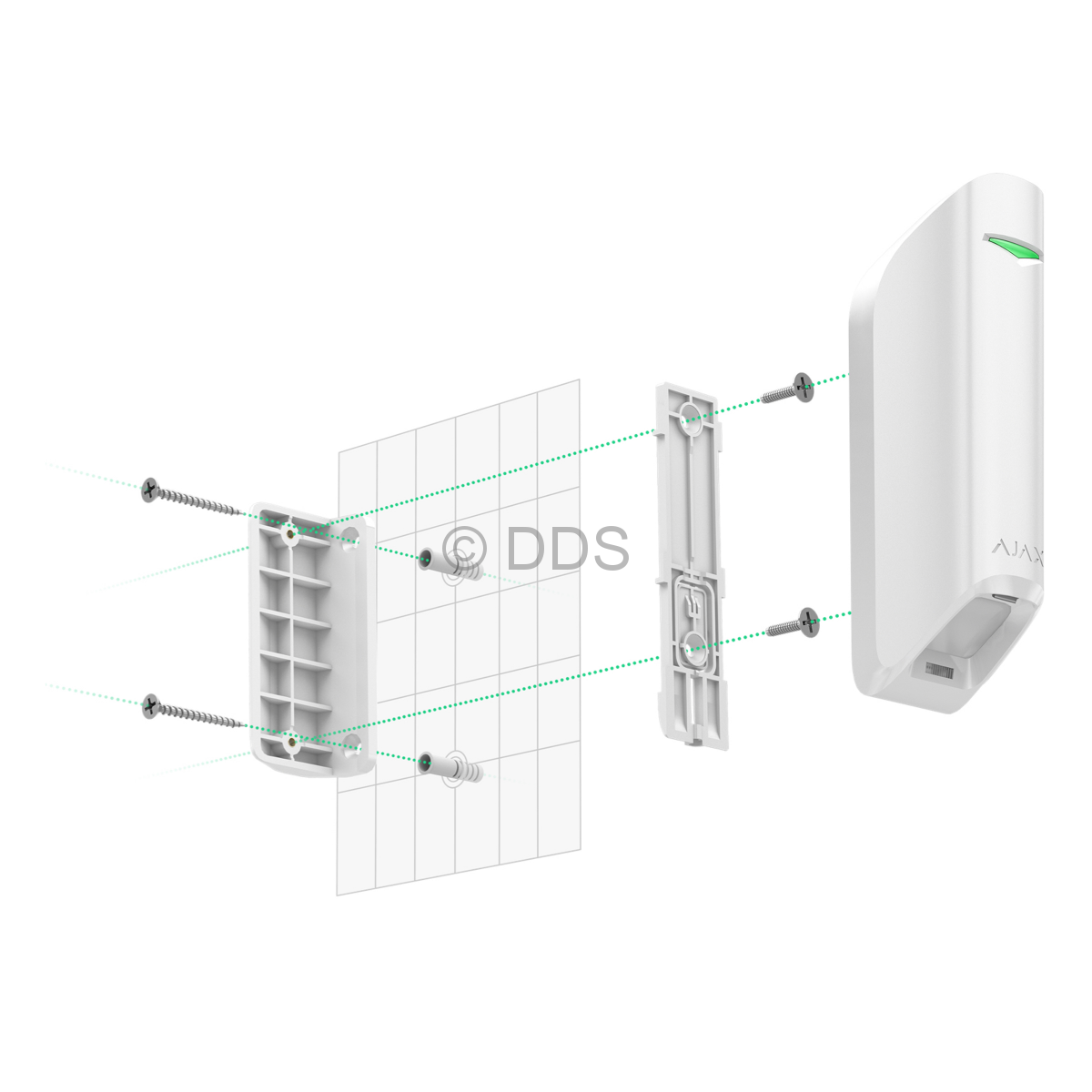

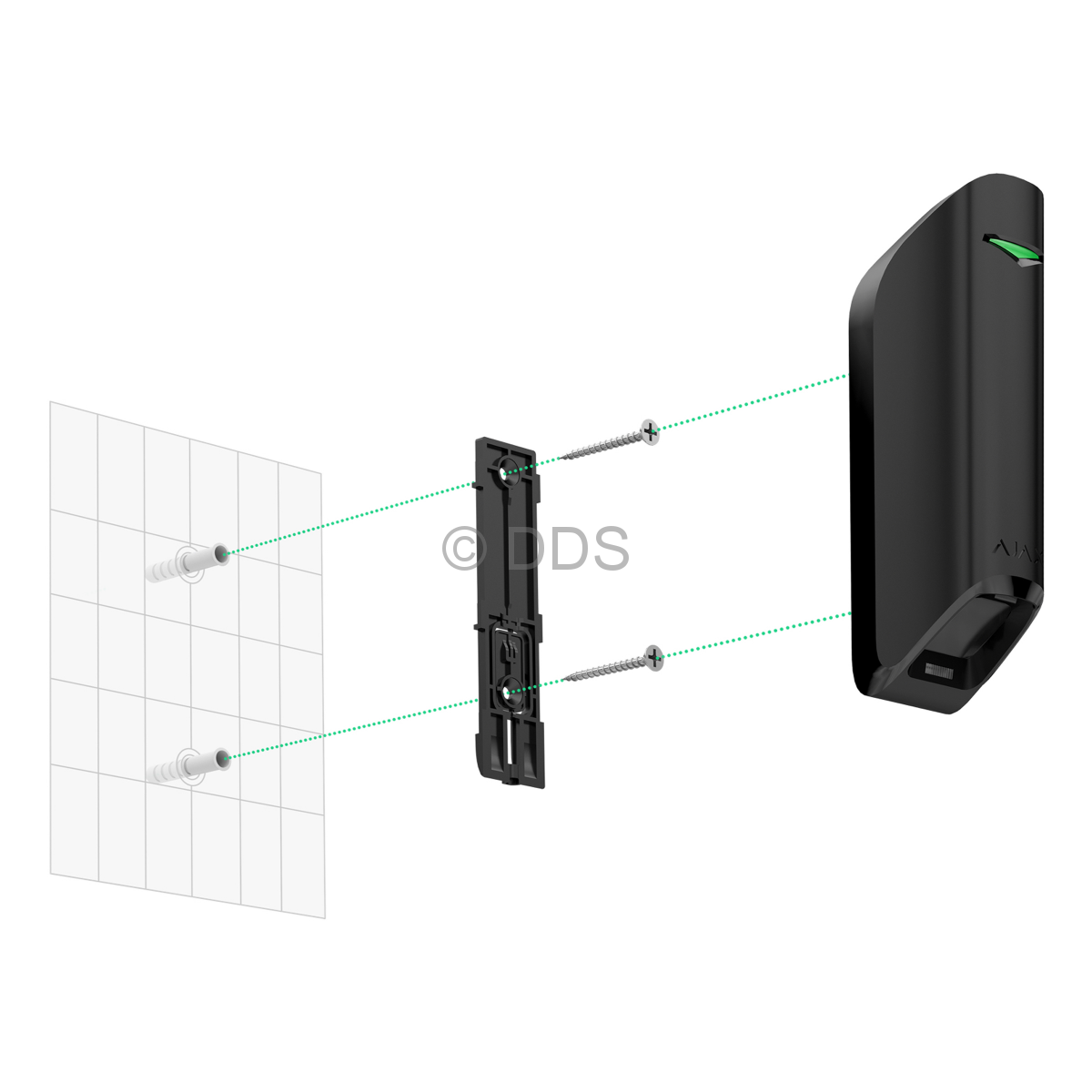

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 7 years without battery replacement
- Vertical detection: 80°
- Horizontal detection: 88.5°



Technical Specifications
Classification Radio-interlinked photoelectric security detector
Installation method Indoors
Compatibility Operates with Hub, Hub Plus, Hub 2, and ReX
Sensing element Two PIR sensors
Alarm signal delivery time 0.15s
Motion detection distance Adjustable, up to 6-15 m
Detection angles Horizontally: 6°
Vertically: 90°
Recommended installation height 2.4m
Pet immunity Weight: not relevant
Height: up to 80cm
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: CR123A
Power supply voltage: 3 V
Battery life: up to 3 years
Permissible humidity Up to 95%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 134mm х 44mm × 34mm
Weight 118g
Certification IP54
