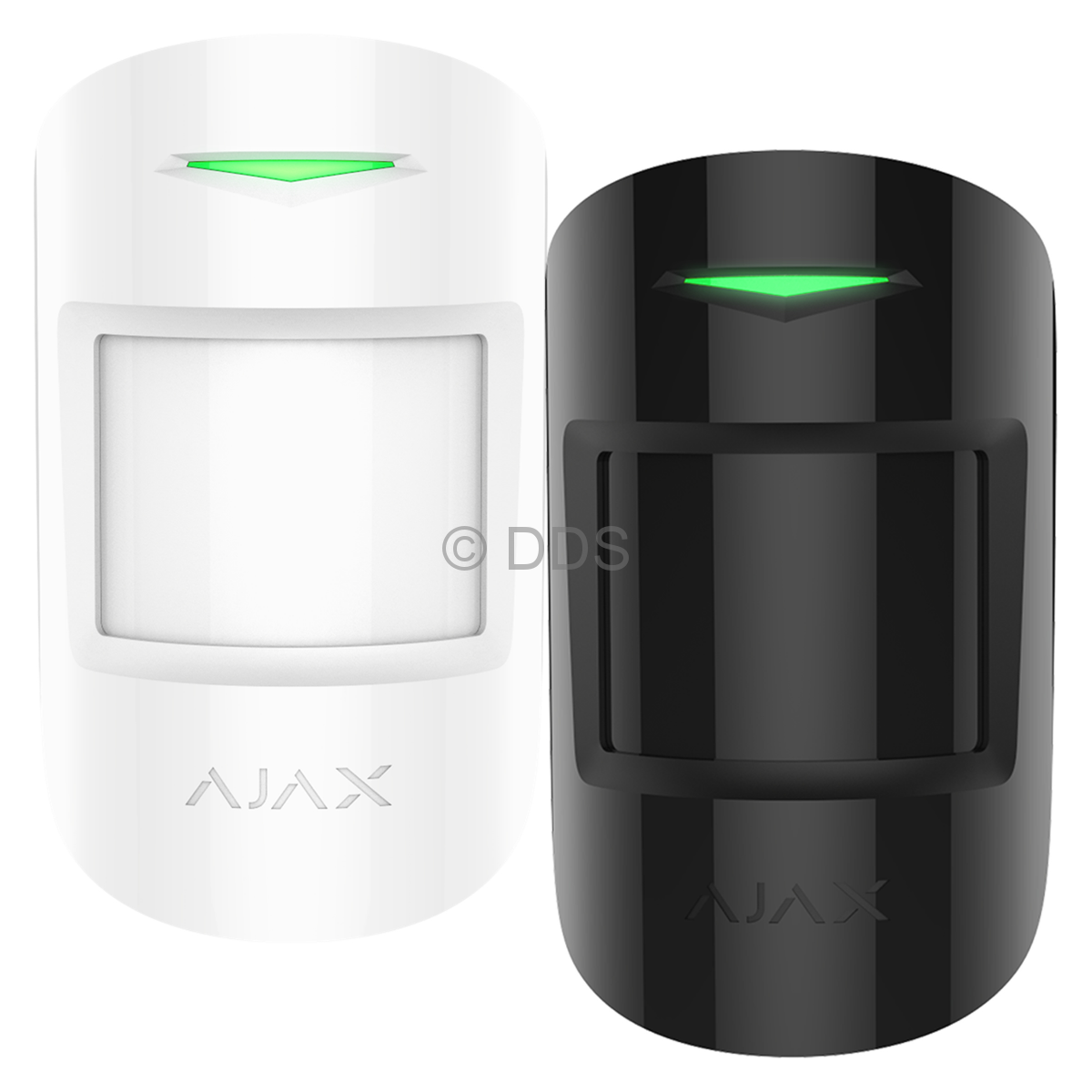

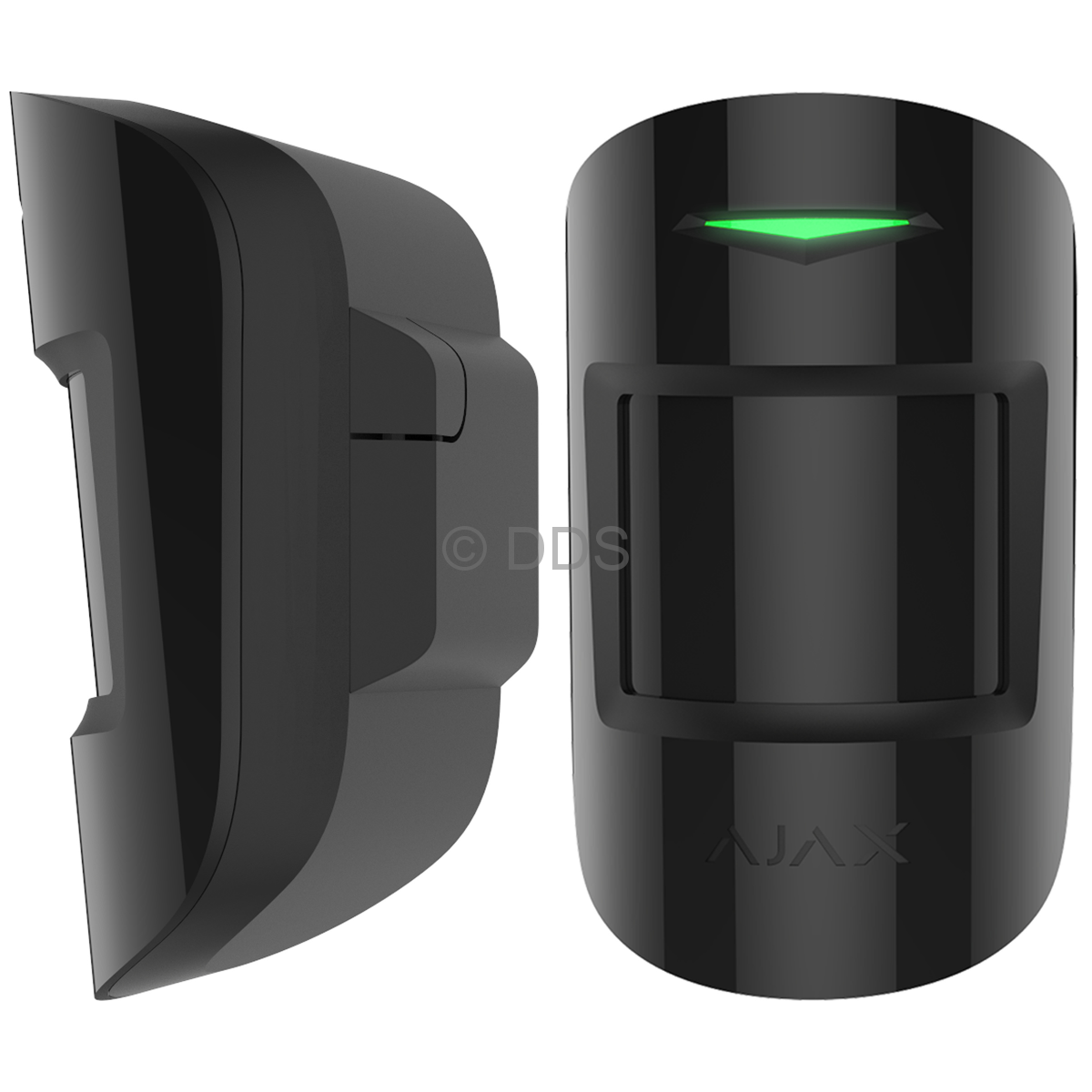

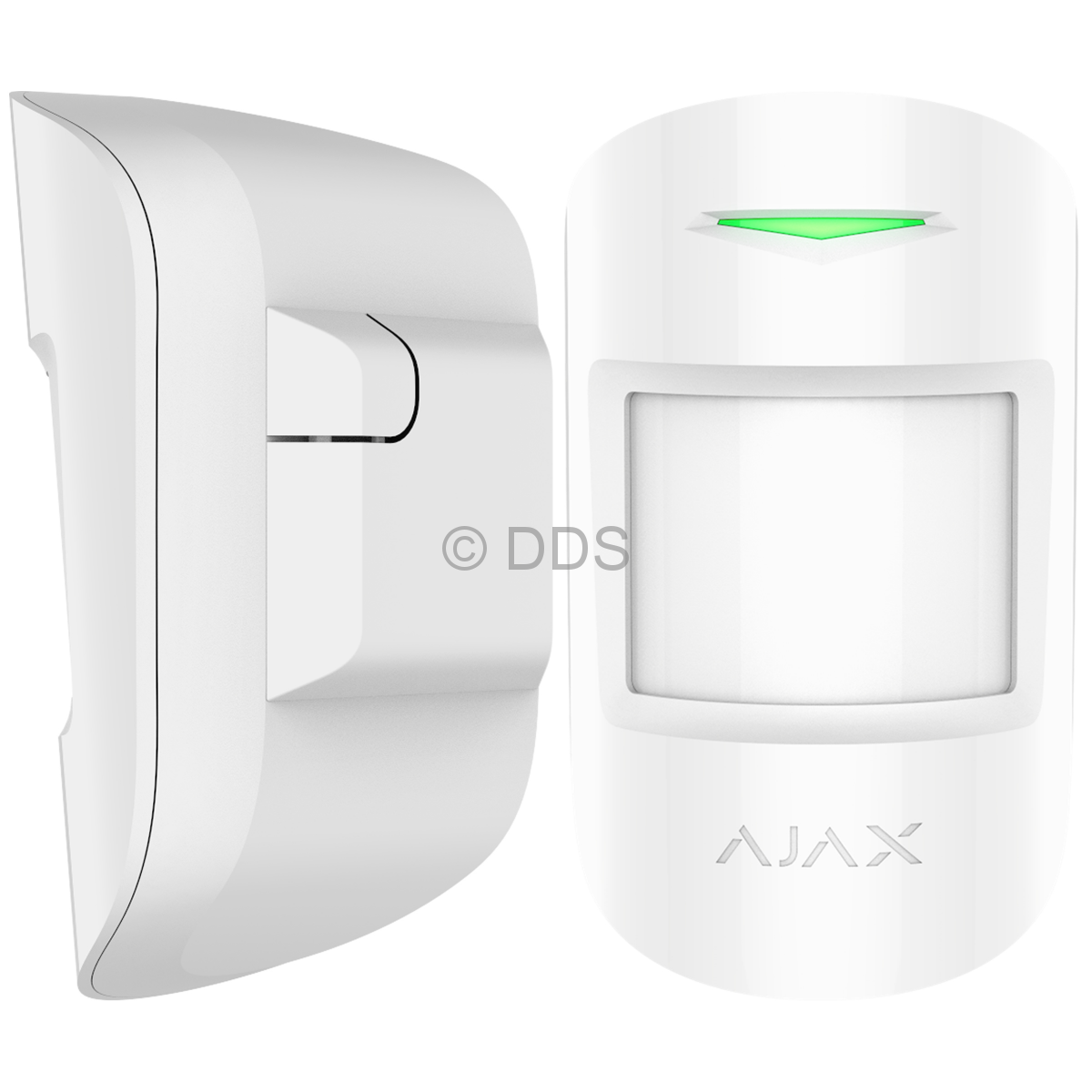

MotionProtect Plus Detector

Call us for a price

AJX-MP+(8227/22945)

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather. The additional microwave sensor filters possible interference from the air conditioner and curtain movement

- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Microwave sensor detects and ignores draughts, movement of curtains and blinds, light flickering, glare, and reflections
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 5 years without battery replacement
- Vertical detection: 80°
- Horizontal detection: 88.5°



Technical Specifications
Classification Electro-optical combined radio channel security detector
Installation method Indoors
Compatibility Operates with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
Sensing element PIR sensor, microwave sensor (24 GHz)
Alarm signal delivery time 0.15s
Motion detection distance Up to 12m
Detection angles Horizontal: 88.5°
Vertical:  80°
Recommended installation height 2.4m
Pet immunity Weight: up to 20 kg
Height: up to 50 cm
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: CR123A battery
Power supply voltage: 3 V
Battery life: up to 5 years
Permissible humidity Up to 75%
Operating temperature range +5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 110mm х 65mm × 50mm
Weight 96g
Certification Grade 2, CE
