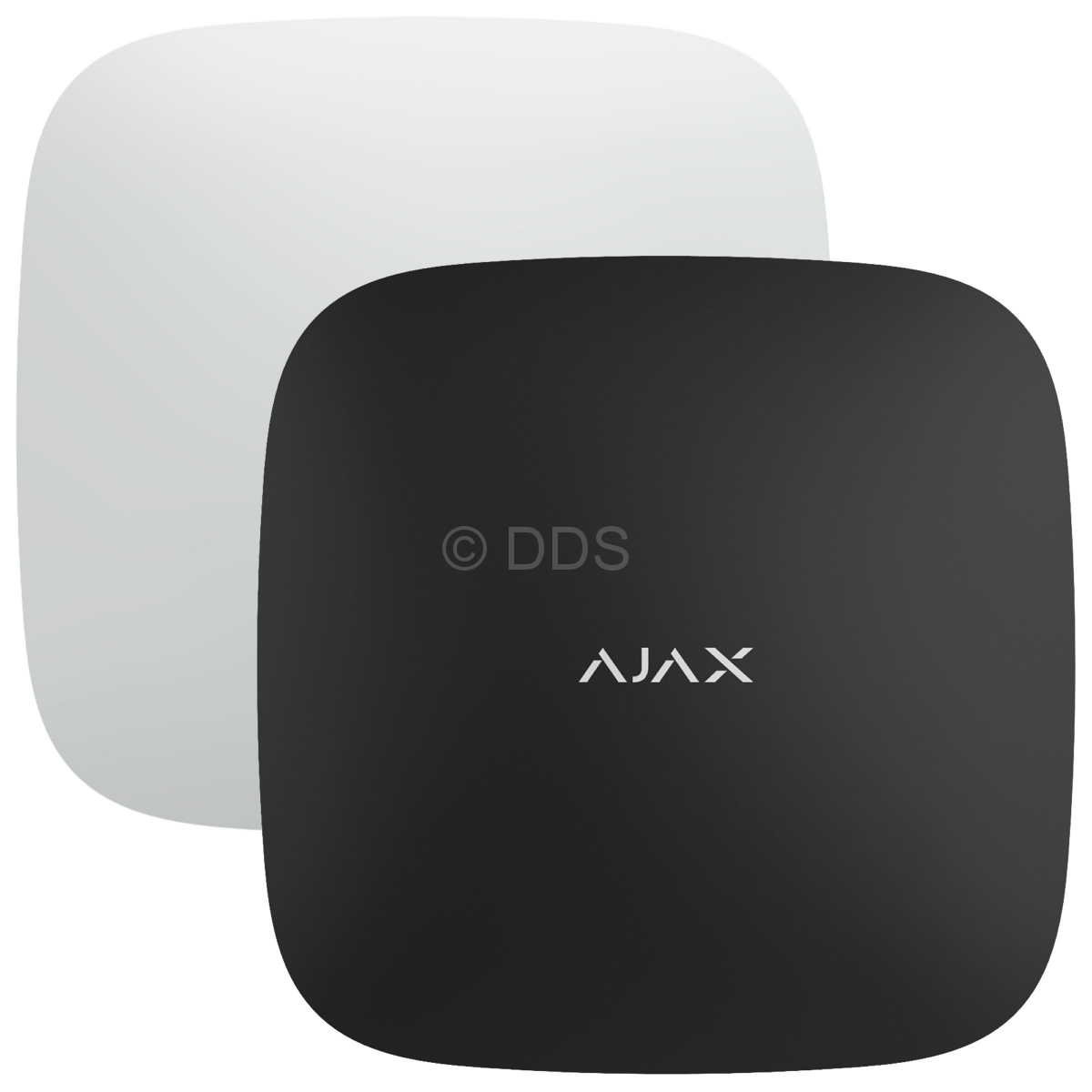

ReX Range Extender
ReX is the Ajax security system radio signal range extender, that expands the boundaries of the protected area. It controls the system devices connected to it enabling the user to place them at a considerable distance from the hub — in a multi-story office, in a detached garage or in a large production plant. ReX doubles the signal range which potentially extends the Ajax radio coverage area up to 16 km². If the connection with the hub is interrupted for some reason, ReX will assume control.
- Alarms communicated in only 0.3s
- All data is encrypted
- Checks in with devices every 36 seconds (other systems tend to check in every 20 minutes)
- Built-in battery backup (2 А⋅h) for up to 35 hours of offline operation
Technical Specifications | |
Classification | Radio channel range extender |
Compatibility | Operates only with Hub, Hub Plus, Hub 2 and Hub 2 Plus featuring OS Malevich 2.7.1 and later |
Max number of connected ReX per hub | Hub — 1 Hub Plus/Hub 2/Hub 2 Plus — 5 *ReX can only be directly connected to the hub. ReX cannot be connected to another ReX |
Maximum connected devices (in a system with one range extender) | Hub, Hub 2 — up to 99 Hub Plus — up to 149 Hub 2 Plus — up to 199 |
Alarm signal | Delivery time: 0.3 s |
Power supply |
Mains supply: 110−240 V |
Operating temperature range | -10°С to +40°С |
Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
Dimensions | 163mm x 163mm x 36mm |
Certification | Grade 2 (EN 50131), PD6662:2017, CE |
