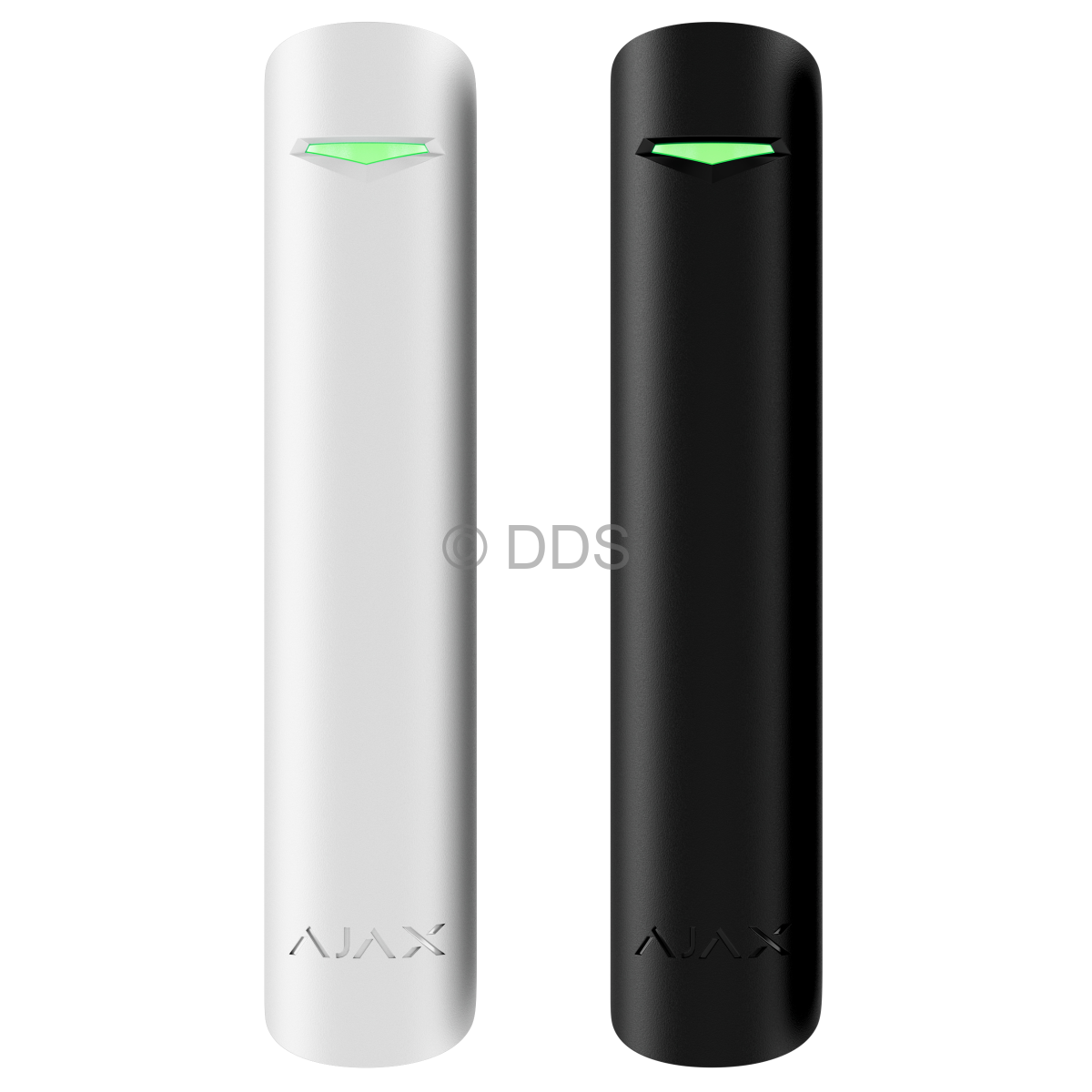

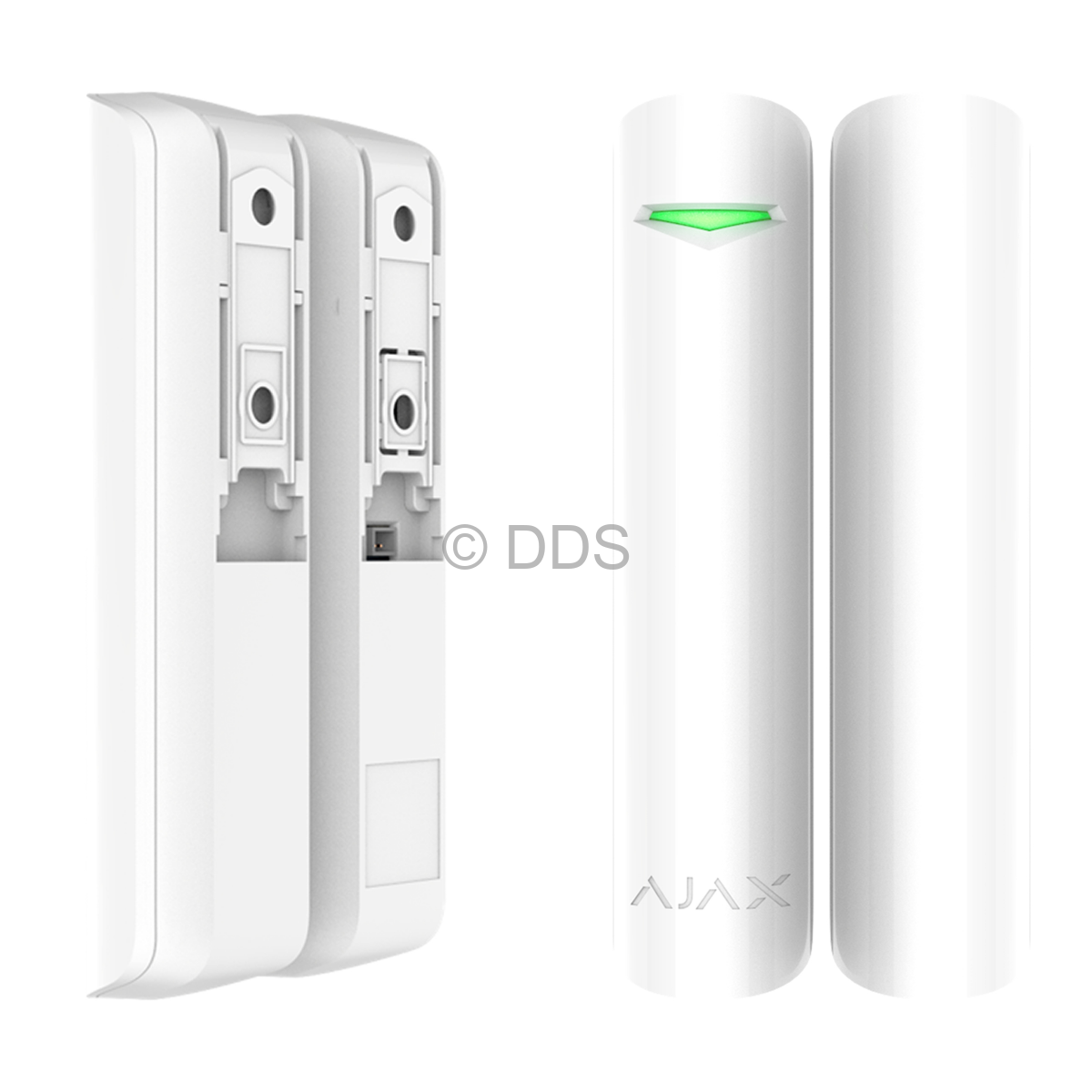

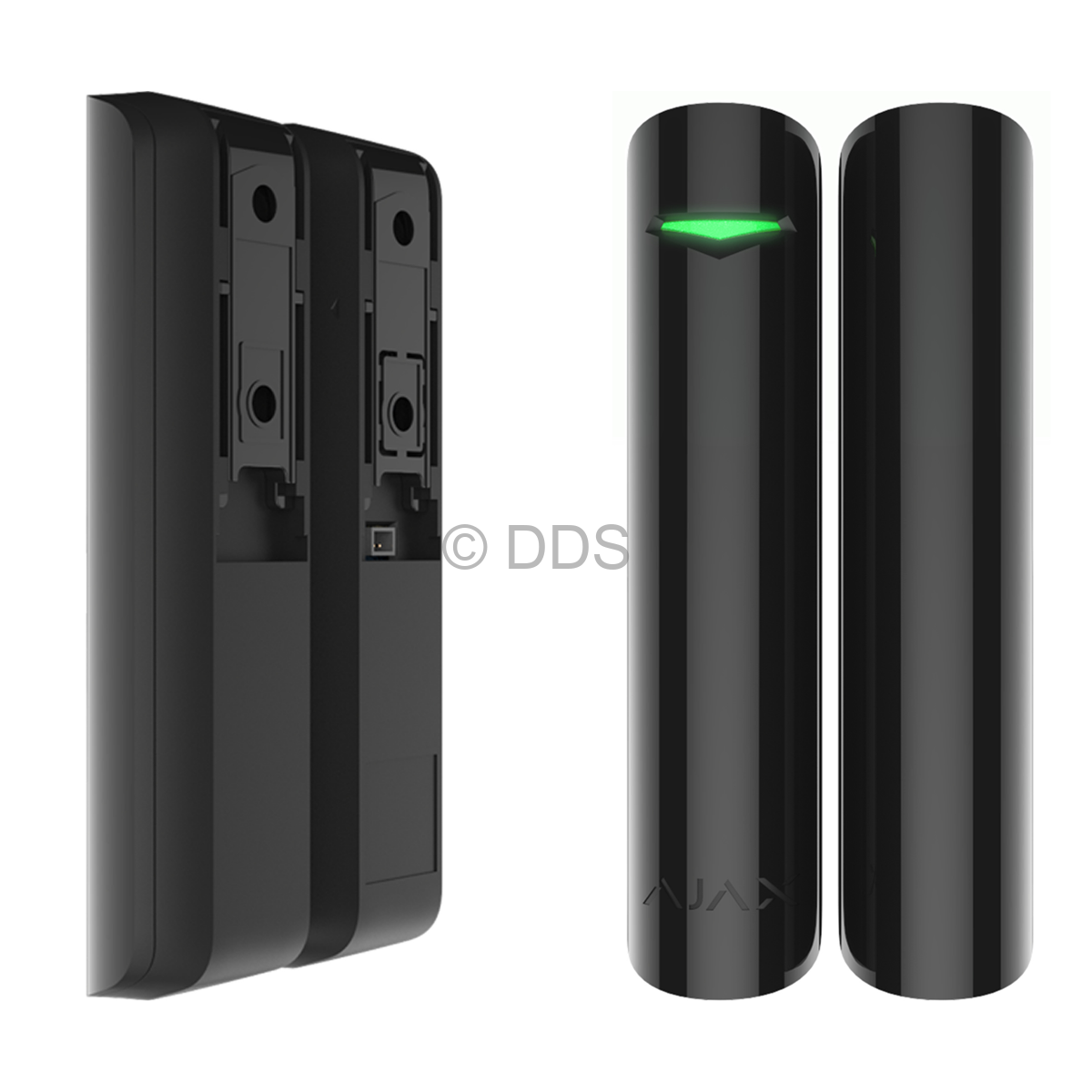

DoorProtect S Detector (S-Line)
Save
100%
100%

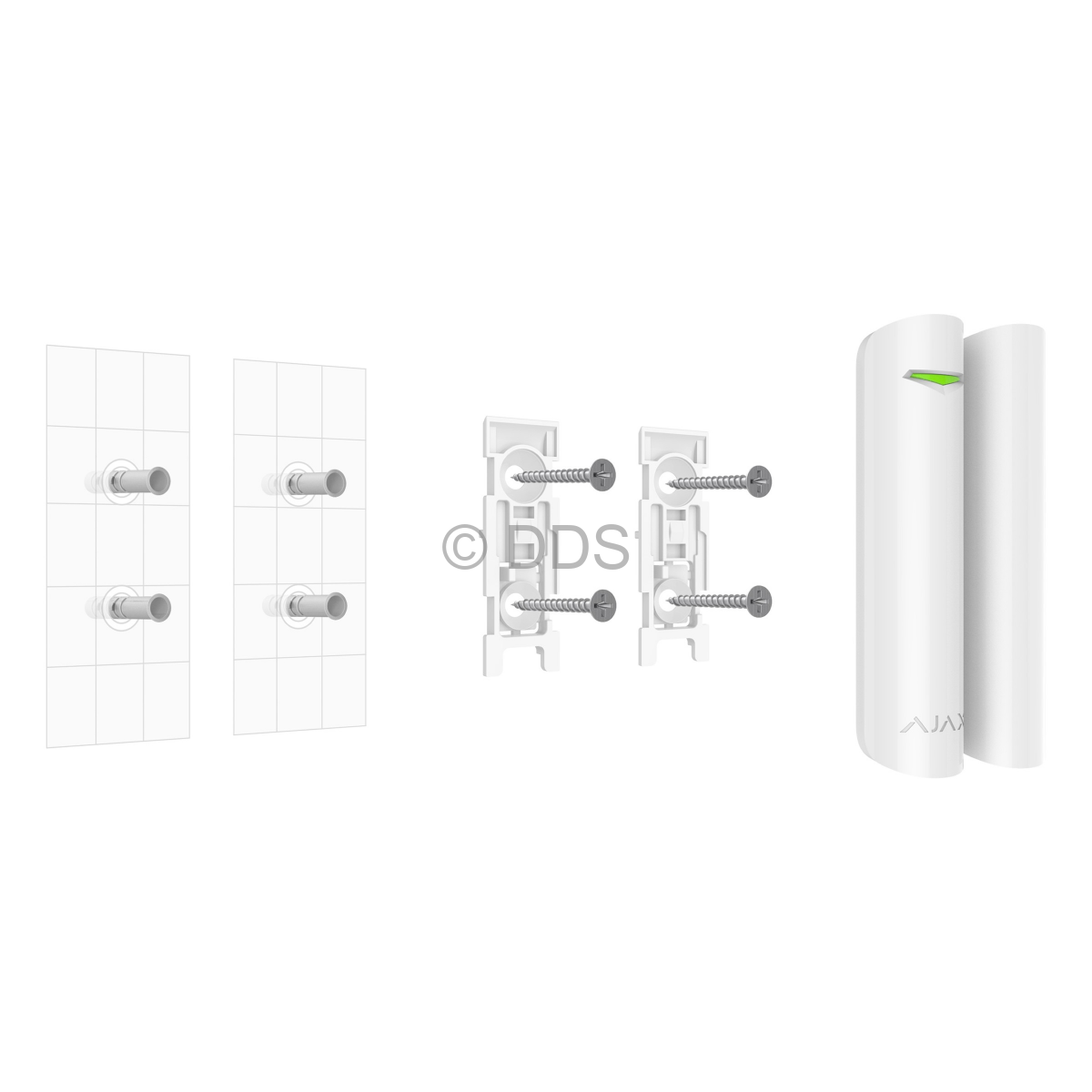

Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base. The device detects the door or window being opened by means of British-made high-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
- Reed switch sensing element
- Alarm signal delivery time of 0.15 s
- Operates up to 5 years without battery replacement
| Technical Specifications | |
| Classification | Point magnetic and contact radio channel security detector |
| Installation method | Indoors |
| Compatibility | Operates with all Hubs (except standard Hub) and all Range Extenders |
| Sensing element | Reed switch (x2) |
| Alarm signal delivery time | 0.15s |
| Activation threshold | Small magnet: 1 cm Big magnet: 2 cm |
| Jeweller radio technology | Communication range with central unit: up to 1,200 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
| Power supply | Battery: CR123A battery Power supply voltage: 3 V Battery life: up to 5 years |
| Permissible humidity | Up to 75% |
| Operating temperature range | -10°С to +40°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Dimensions | 103mm х 21mm x 22mm |
| Weight | 37g |
| Certification | IP50 CE EN 50131-2-6 (Grade 2) PD 6662:2017 INCERT (coming soon) SSF (coming soon) NFA2P (coming soon) |
