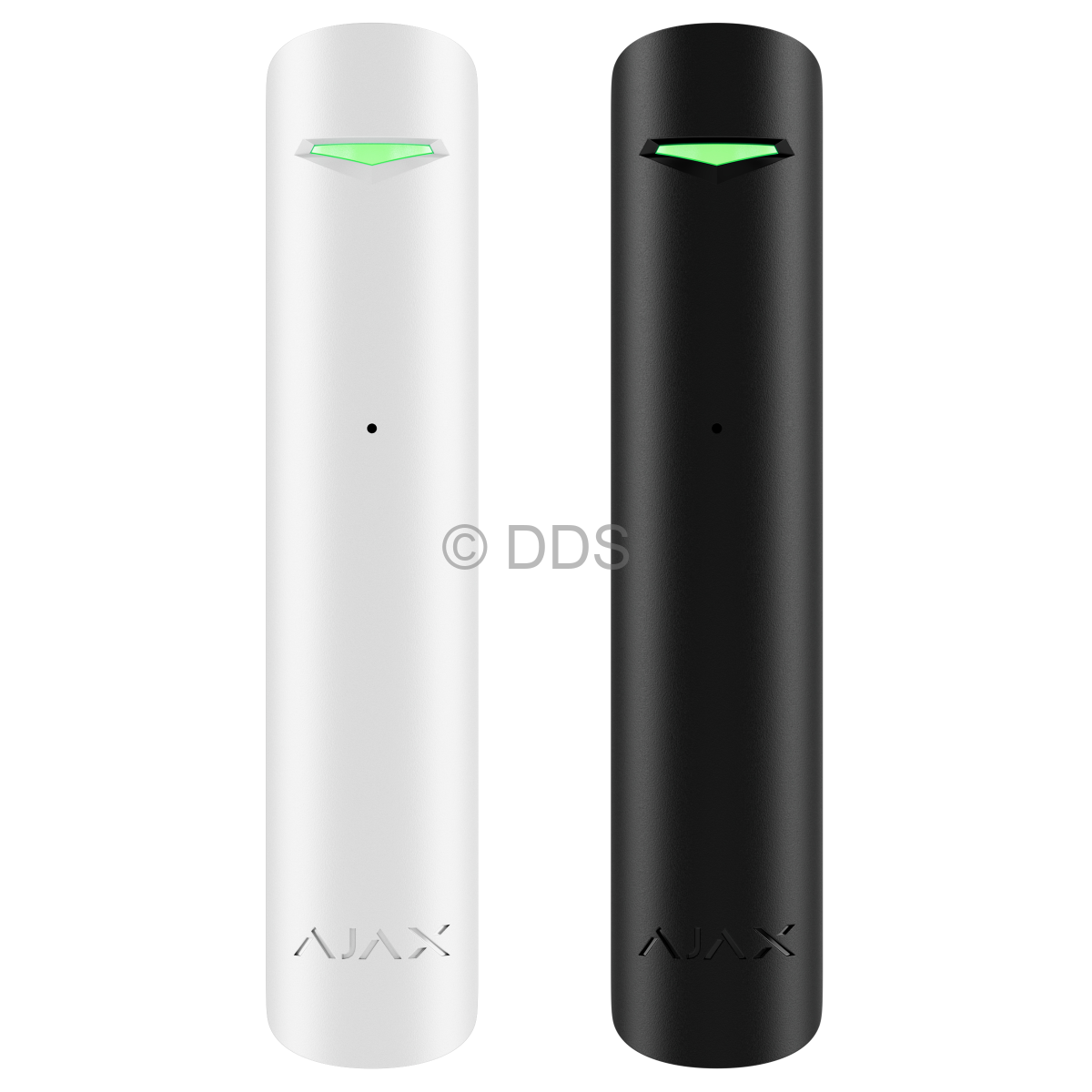

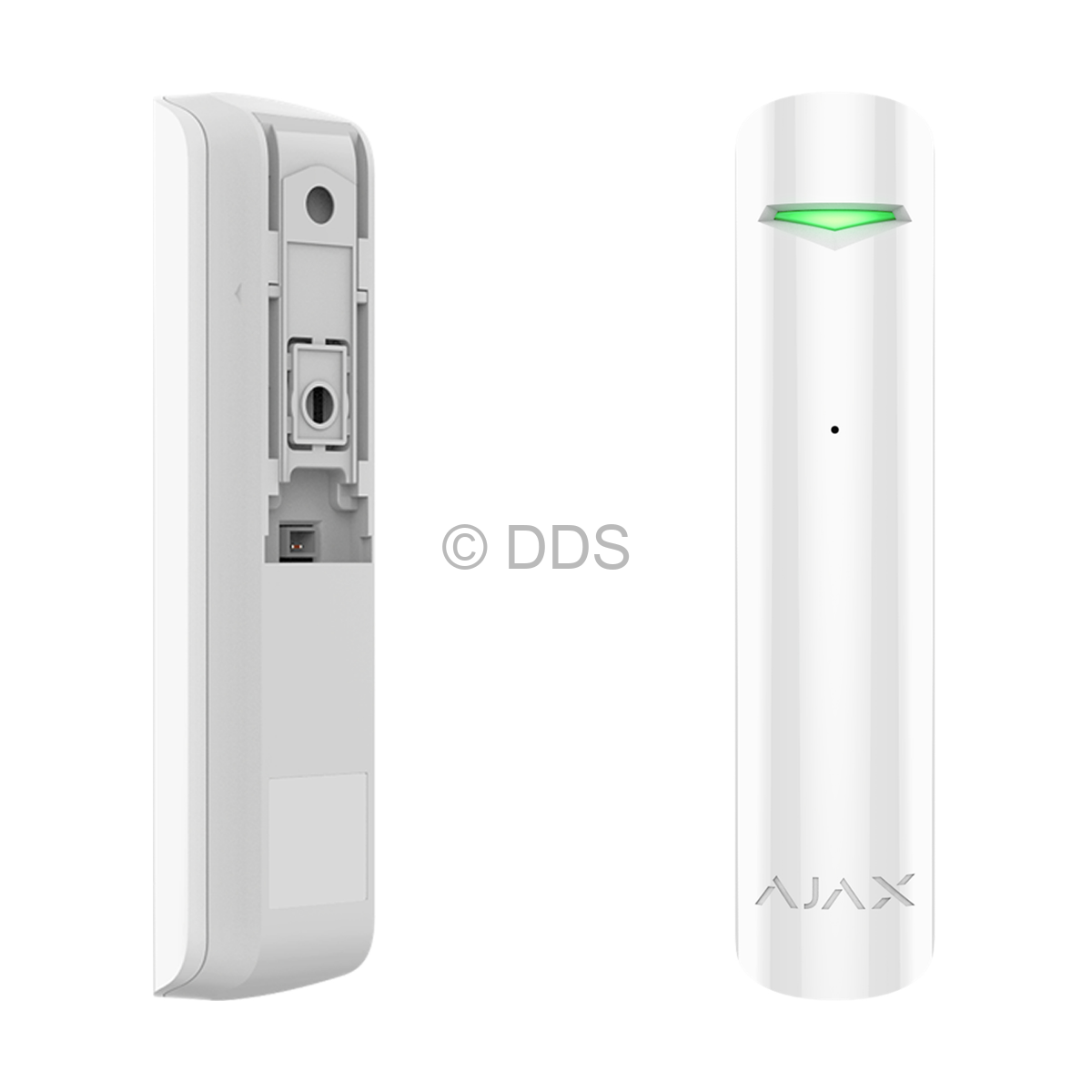

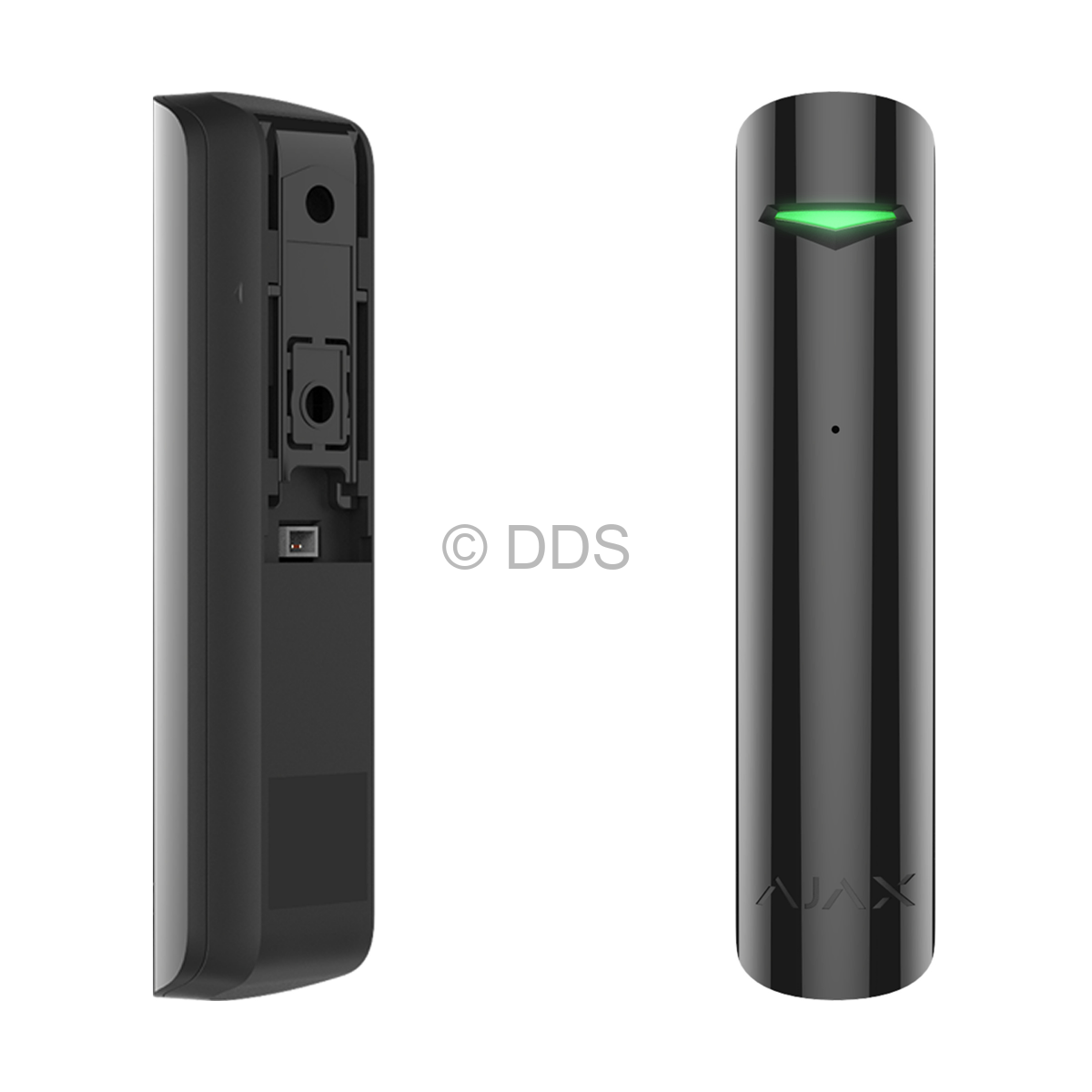

GlassProtect S Detector (S-Line)

Call us for a price

AJX-GP-SLINE(67738)

Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage. Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling. Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks.

- Electret microphone sensing element
- Up to 9m detection of breakage (180°)
- Alarm signal delivery time of 0.15 s
- Operates up to 7 years without battery replacement



Technical Specifications
Classification Surface sound radio channel security detector

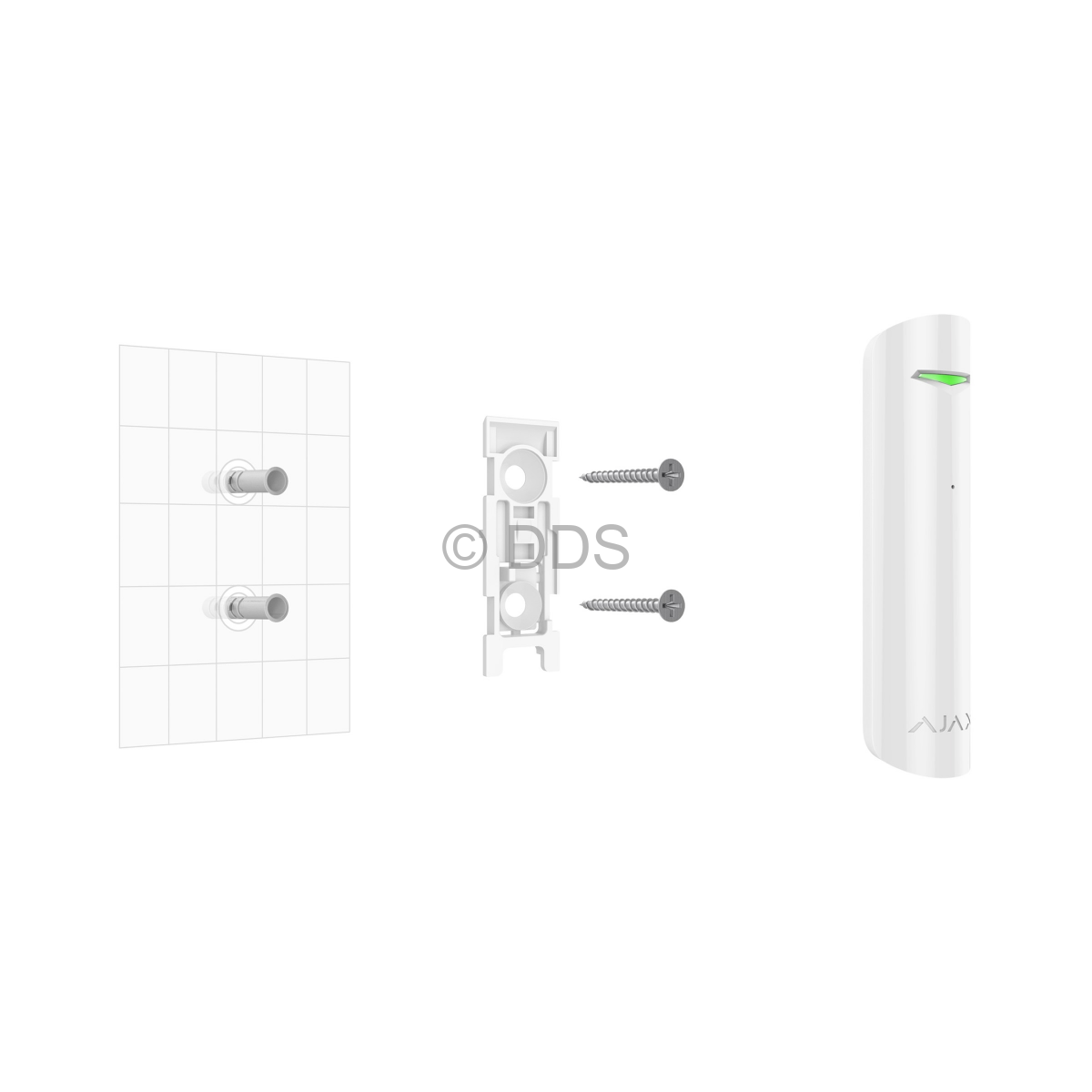

Installation method Indoors
Compatibility Operates with all Hubs (except standard Hub) and all Range Extenders
Sensing element Electret microphone
Alarm signal delivery time 0.15s
Break detection distance Up to 9m
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: CR123A battery
Power supply voltage: 3 V
Battery life: up to 5 years
Permissible humidity Up to 75%
Operating temperature range +5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 103mm х 22mm x 21mm
Weight 40g
Certification CE
EN 50131-2-7-1 (Grade 2)
PD 6662:2017
INCERT (coming soon)
SSF (coming soon)
