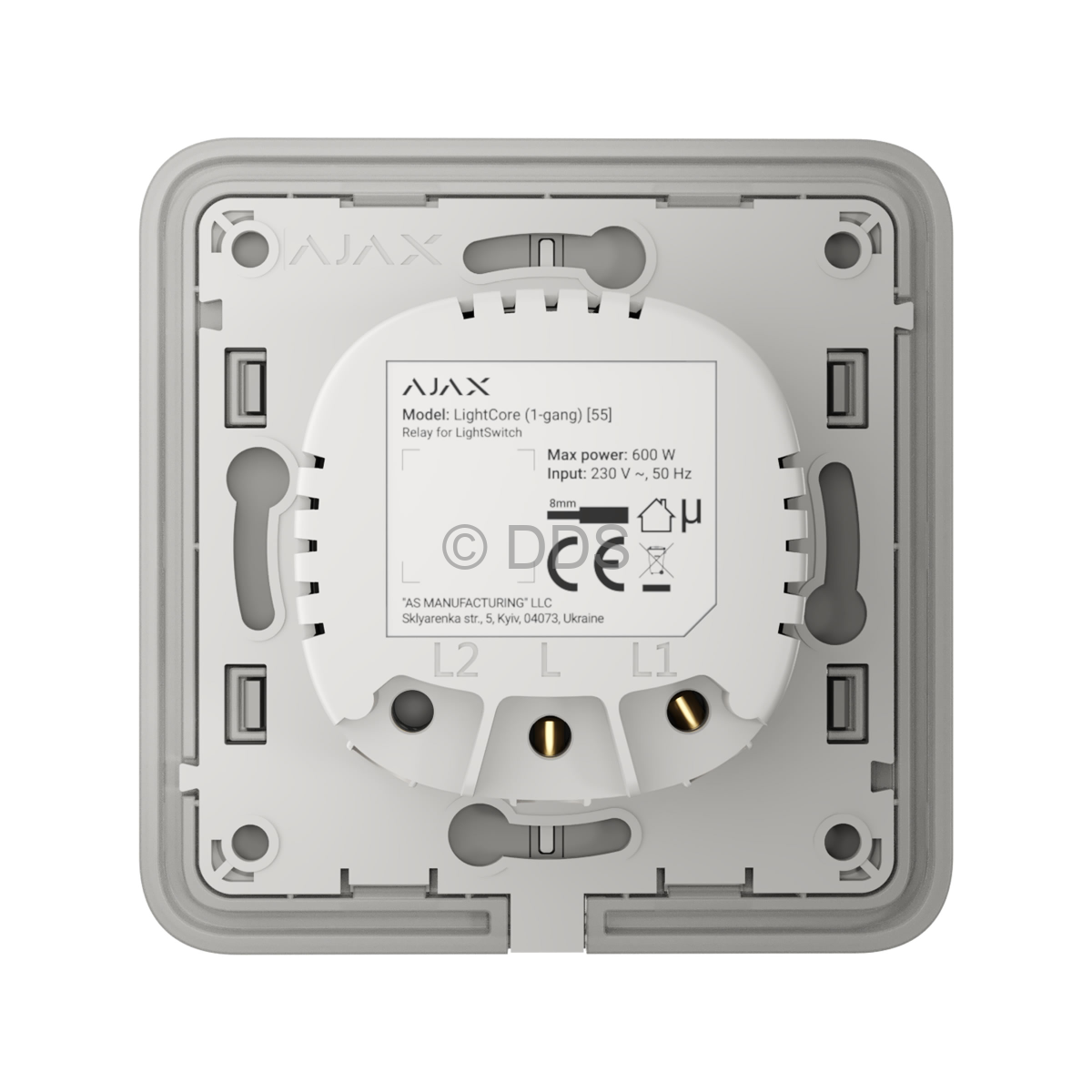

LightCore Relay for LightSwitch (1-gang)

Call us for a price

AJX-LCORE(63114)

LightSwitch combines the reliability of professional security systems and a thoughtful user experience. The smart switch from Ajax has a large touch-sensitive panel that can be activated both by tap and contactless – just put your hand less than 15 mm close. A soft backlight helps do this in the dark. With LightSwitch, it's easy to turn on lights and floor lamps, control curtains or blinds, even remotely.

LightSwitch is easy to install: it is sized to fit into a standard European socket, does not require a neutral wire and connects to the security system by scanning a QR code. The settings in the app allow you to turn on the lights by schedule, when disarming the security system or in response to an alarm. The switch is available in one-gang, two-gang and two-way versions. LightSwitch is made up of two components - LightCore and SoloButton.



Technical Specifications
Classification Smart Light Switch
Installation method In outlet
Compatibility Operates with Hub Plus, Hub 2, Hub 2 Plus, ReX and Rex 2
Power supply voltage 230V~, 50Hz
Maximum power 600W
Current protection 2.6A
Temperature protection 60°C
Night backlight Optional, can be turned off in the Ajax app device settings
Scenarios By alarm
Reaction to security mode change
Scheduled actions
By temperature
By humidity
By CO2 concentration
By pressing another LightSwitch
Form factor of the switch European type (55)
Jeweller radio technology Communication range with central unit: up to 1,100 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 25mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Permissible humidity Up to 75%
Operating temperature range 0°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Dimensions 76.3mm x 72.3mm x 29.2mm
Weight 45.95g
Certification CE, IP20, BS 1363-3, UKCA
