MotionCam Detector

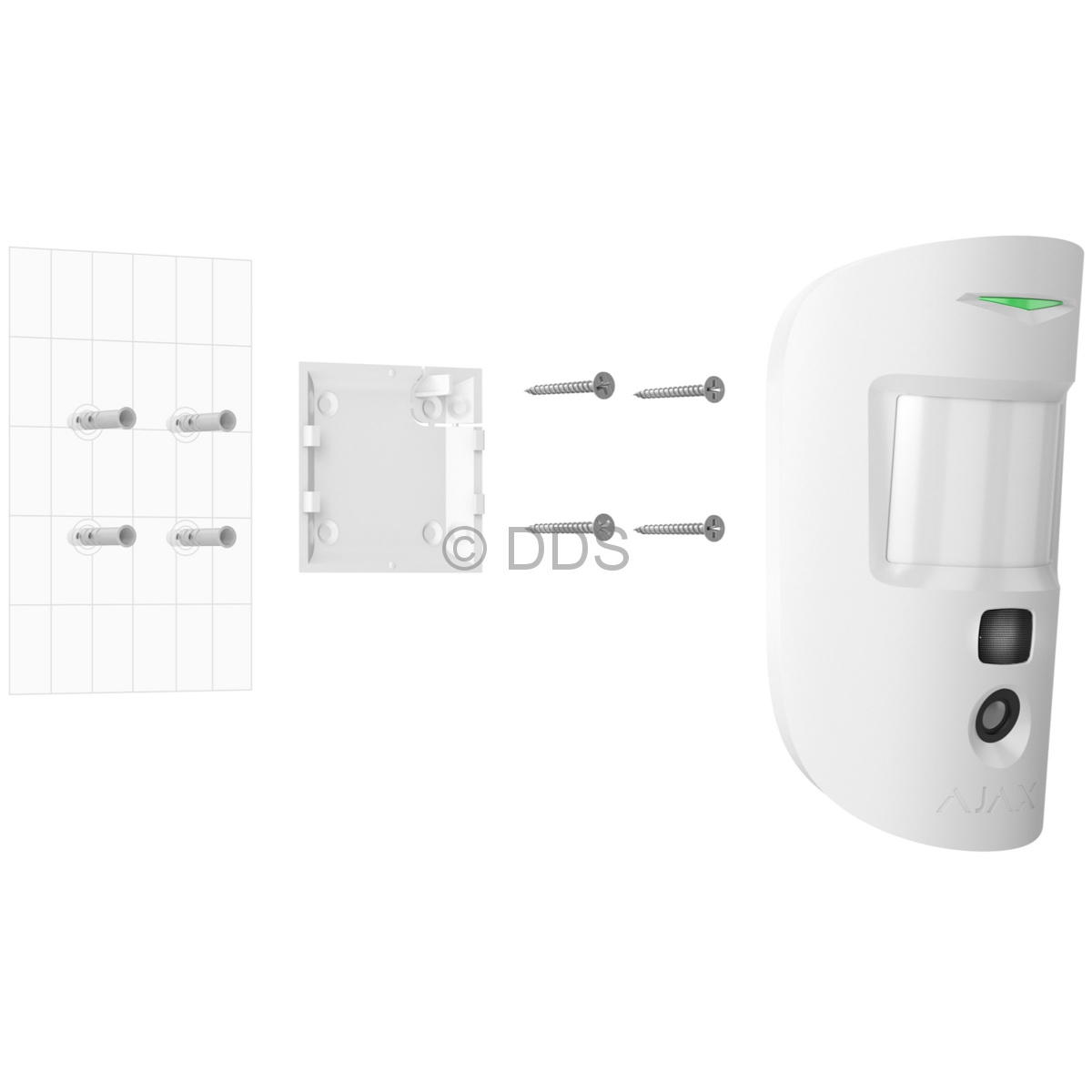

Wireless motion detector with built-in camera, that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. It transmits a photograph in under 9 sec, and can see in the dark using it's built-in infrared. Requires Hub 2 for operation
- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s, photo delivery time of <9 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 4 years without battery replacement
- Vertical detection: 80°
- Horizontal detection: 88.5°
Technical Specifications | |
Classification | Electro-optical combined radio channel security detector with a photo camera |
Installation method | Indoors |
Compatibility | Operates with Hub 2, Hub 2 Plus and ReX 2 only |
Sensing element | PIR sensor |
Alarm signal delivery time | 0.15s |
Motion detection distance | Up to 12m |
Detection angles | Horizontal: 88.5° Vertical: 80° |
Camera view angle | 90° |
Pet immunity | Weight: up to 20 kg Height: up to 50 cm |
Photo verification | Time to deliver a photograph with default settings: up to 9 sec Resolution: 640 x 480 Pictures in series: 1-5 |
IR backlight for night mode pictures | Available |
Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0—868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
Power supply | Battery: CR123A battery (x2) Power supply voltage: 3 V Battery life: up to 4 years |
Permissible humidity | Up to 75% |
Operating temperature range | +5°С to +40°С |
Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
Dimensions | 135mm х 70mm × 60mm |
Weight | 168g |
Certification | Grade 2, CE, IP50 |
