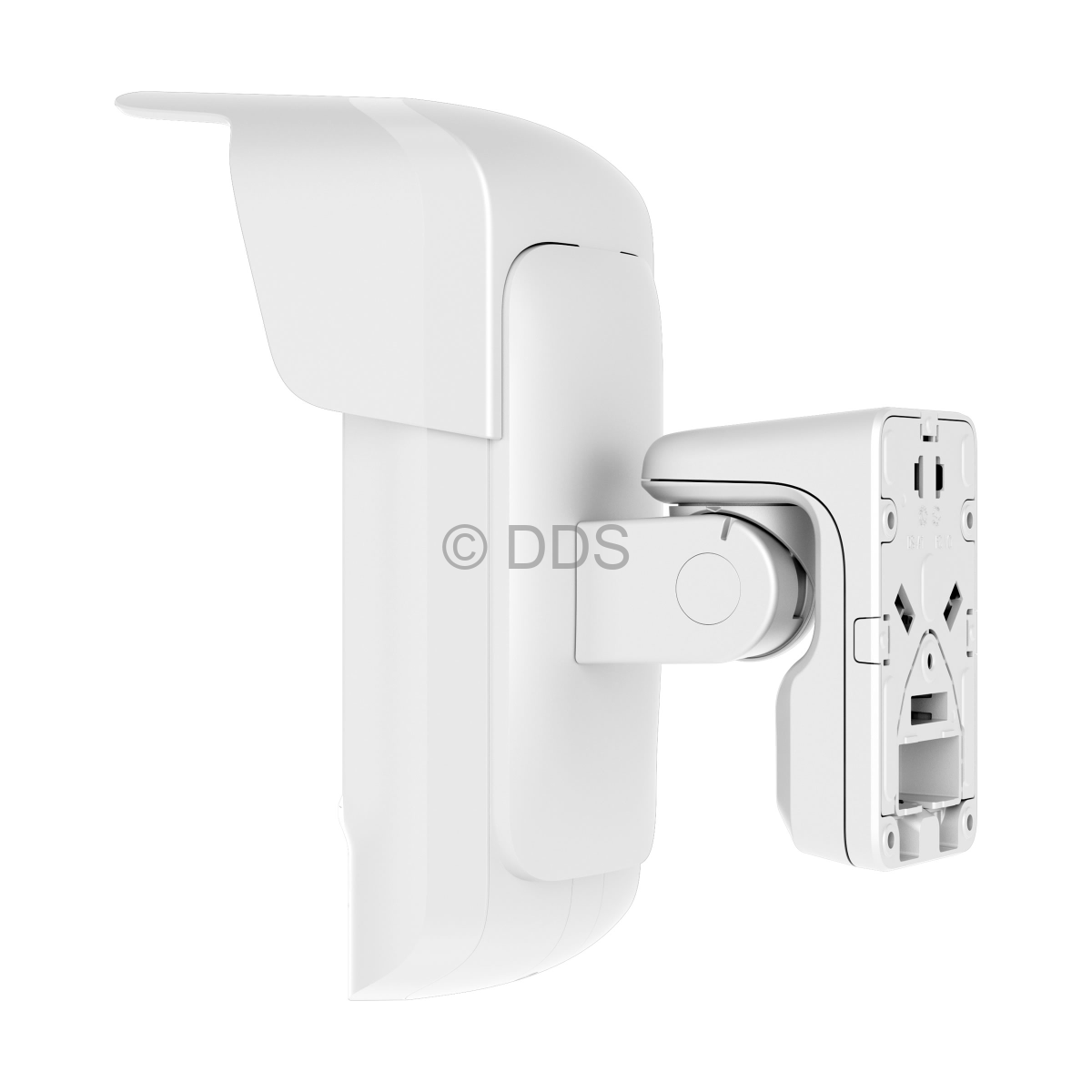

Wireless motion detector with a built-in camera, that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. It transmits a photograph in under 9 seconds, and can see in the dark using its built-in infrared. MotionCam Outdoor HighMount PhOD can take a series of photos by request of the user from the Ajax mobile app, regardless of the security mode. Designed to be installed at a height of 2-4m.
- Takes series of photos by alarm or on demand (requested in the app)
- Alarm signal delivery time of 0.15 s, photo delivery time of <9 s
- Maximum detection distance of 15m
- Accurately detects motion in heat conditions, even at a temperature of +60°С
- Operates up to 3 years without battery replacement
- Hood included
| Technical Specifications |
| Classification |
Electro-optical radio channel security detector |
| Installation method |
Outdoors and Indoors |
| Compatibility |
Operates with Hub 2, Hub 2 Plus and ReX 2 only |
| Sensing element |
2 x PIR sensor
1 x K-band microwave sensor |
| Alarm signal delivery time |
0.15s |
| Motion detection distance |
Adjustable, from 3 to 15 m |
| Motion detector’s viewing angle |
Horizontal: 90°
Vertical: 85° |
| Camera view angle |
Horizontal: 115°
Vertical: 84° |
| Motion detection speed |
0.3 m/s to 2.0 m/s |
| Photo verification |
Photo by alarm - built-in camera is activated if the detector is armed, and motion is detected
Photo on demand - user takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photo by scenario - built-in camera takes pictures automatically when a scenario is triggered. The feature is disabled by default.
Photo by schedule - built-in camera takes pictures automatically at a specified time. The feature is disabled by default.
Photo by arming/disarming - built-in camera takes pictures automatically when the security state is changed.
Time to deliver a photograph with default settings: up to 9 sec
Resolution: 320 x 240 (default), 640 x 480
Pictures in series: 1-5 |
| IR backlight for night mode pictures |
Available |
| Jeweller radio technology |
Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0—868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s |
| Power supply |
Battery: CR123A battery (x6)
Power supply voltage: 3 V
Battery life: up to 3 years
Optional external power: 12-24 V (batteries serve as a backup when an external power supply is connected) |
| Operating humidity |
Up to 95% |
| Operating temperature range |
-25°С to +60°С |
| Anti-sabotage |
Anti-masking
Protection against fraud
Jamming detection
Tamper-resistant |
| Dimensions |
With swivel mount: 234mm х 230mm x 98mm
Without swivel mount: 234mm х 137mm x 98mm |
| Weight |
With swivel mount: 1,010g
Without swivel mount: 620g |
| Certification |
Grade 2 EN50131, CE, IP55, PD6662:2017 |
