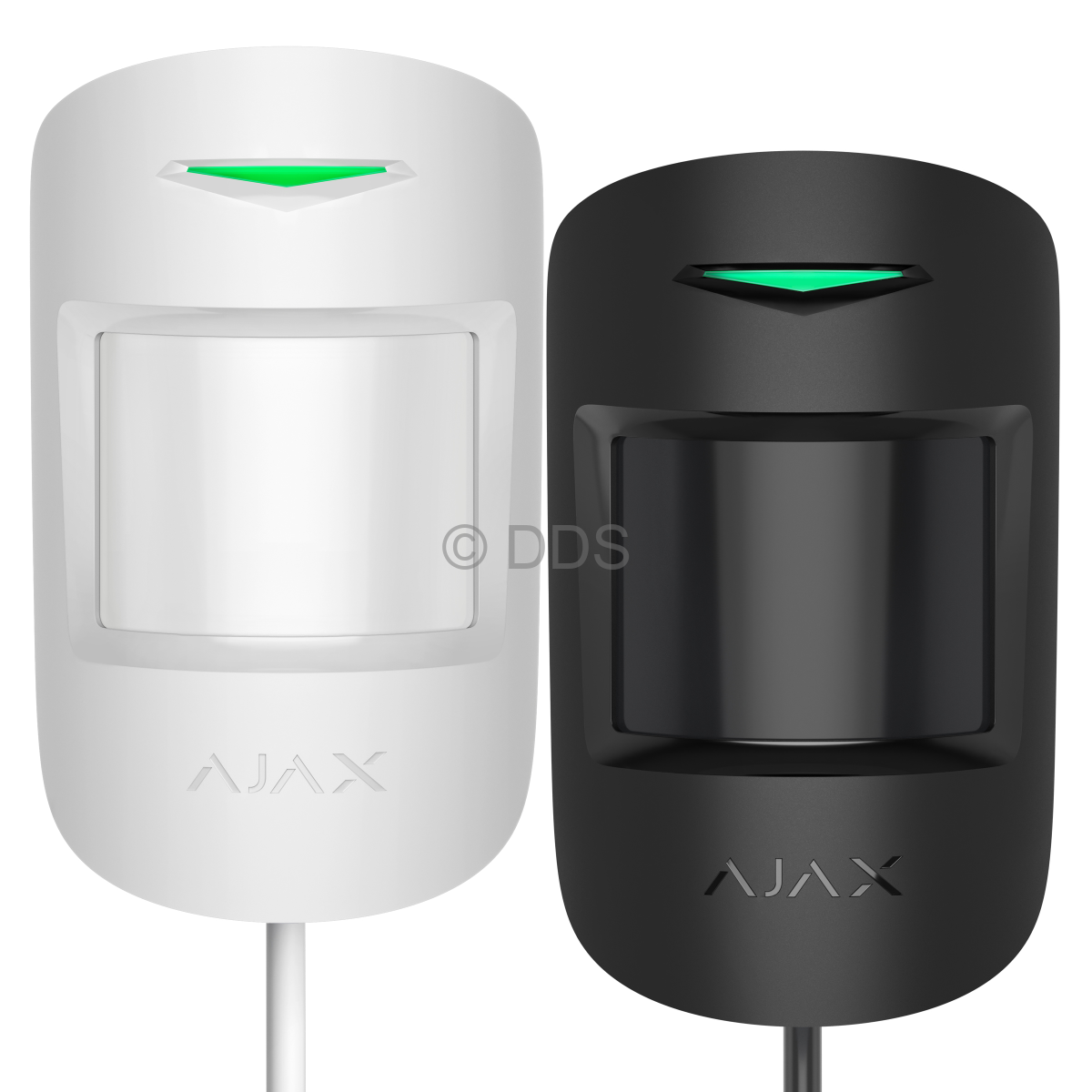

MotionProtect Plus Detector (Fibra)
Wired motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather. The additional microwave sensor filters possible interference from the air conditioner and curtain movement
- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Microwave sensor detects and ignores draughts, movement of curtains and blinds, light flickering, glare, and reflections
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Vertical detection: 80°
- Horizontal detection: 88.5°
Technical Specifications | |
Classification | Electro-optical combined security detector |
Installation method | Indoors |
Compatibility | Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only |
Sensing element | PIR sensor, K-band microwave sensor |
Alarm signal delivery time | 0.15s |
Motion detection distance | Up to 12m |
Detection angles | Horizontal: 88.5° Vertical: 80° |
Recommended installation height | 2.4m |
Pet immunity | Weight: up to 20 kg Height: up to 50 cm |
Fibra technology | Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51) Connection wire length: Up to 2000m Device polling period: 12−300 s |
Power supply | Power supply voltage: 24V Power consumption: up to 50 μA |
Permissible humidity | Up to 75% |
Operating temperature range | -10°С to +40°С |
Anti-sabotage | Protection against fraud Tamper-resistant |
Dimensions | 110mm х 65mm x 50mm |
Weight | 96g |
Certification | EN 50131 (Grade 2), PD 6662:2017, IP50 |
