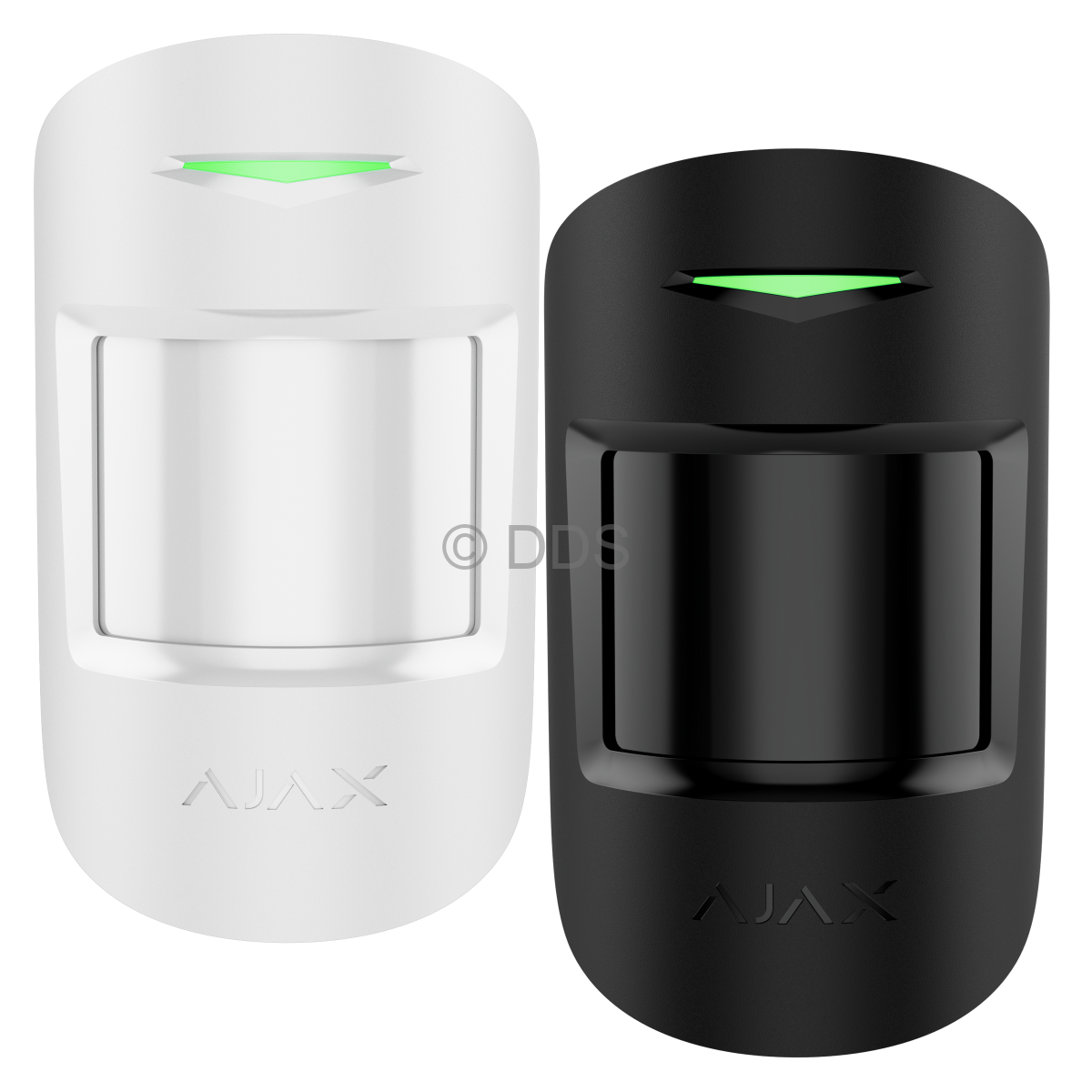

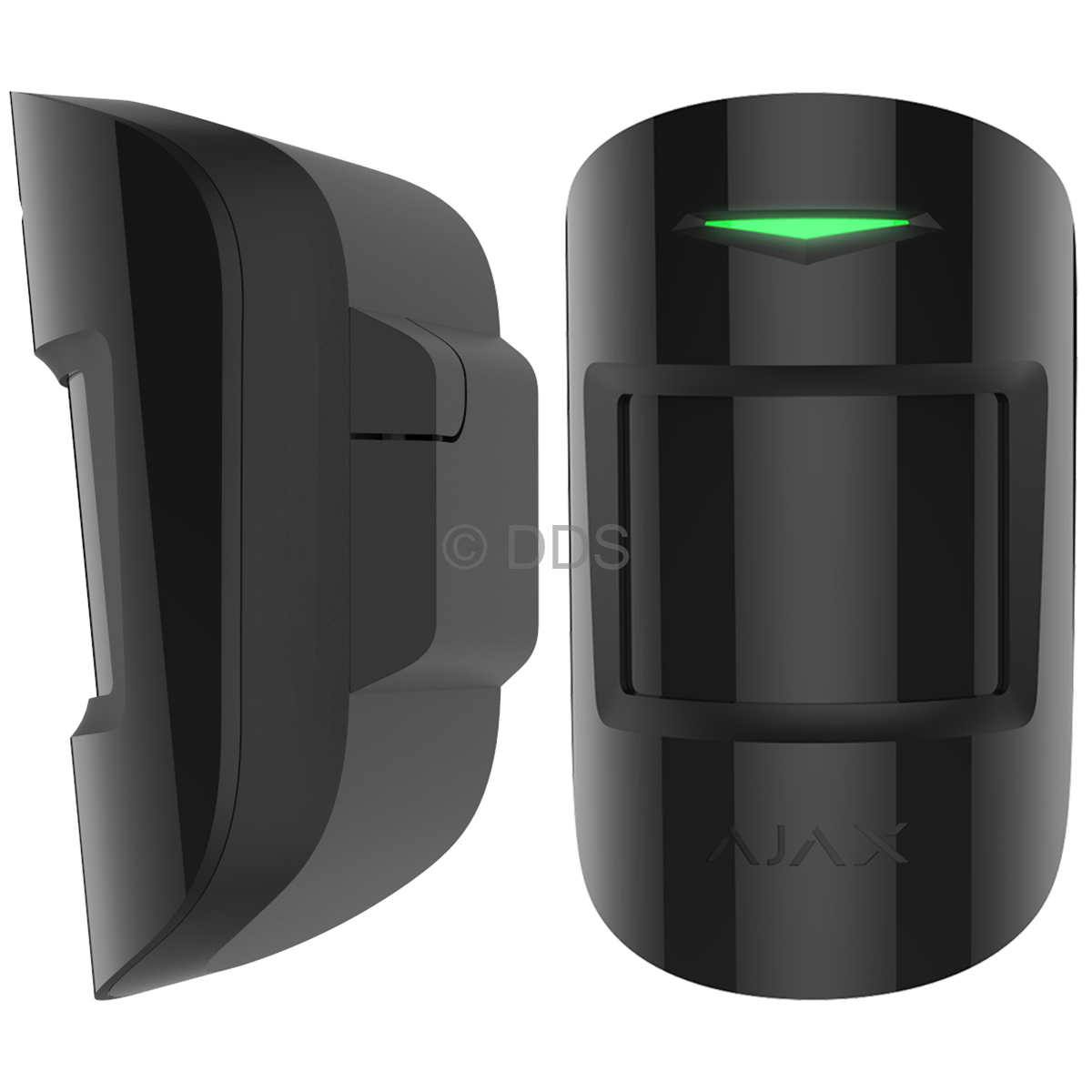

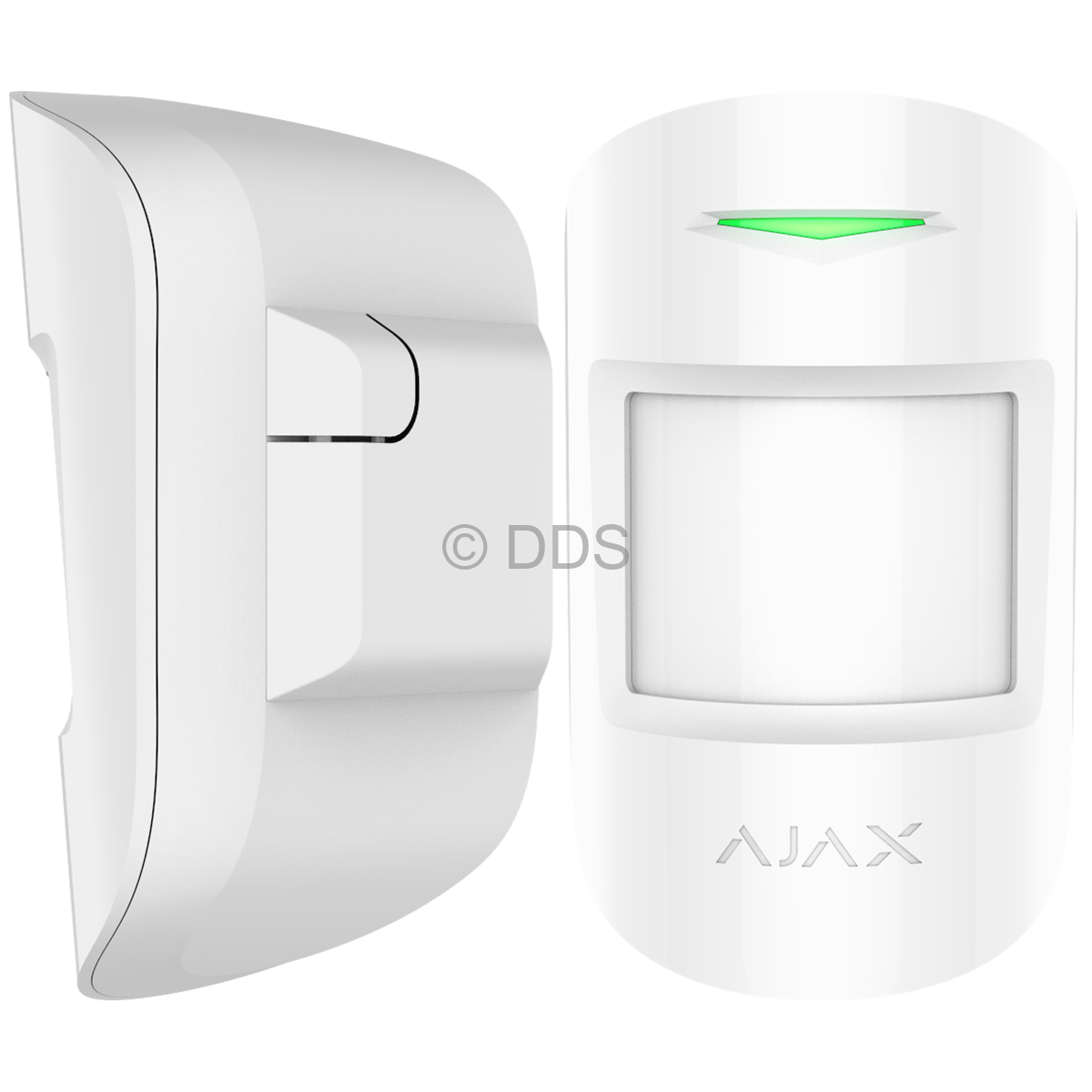

MotionProtect S Plus Detector (S-Line)

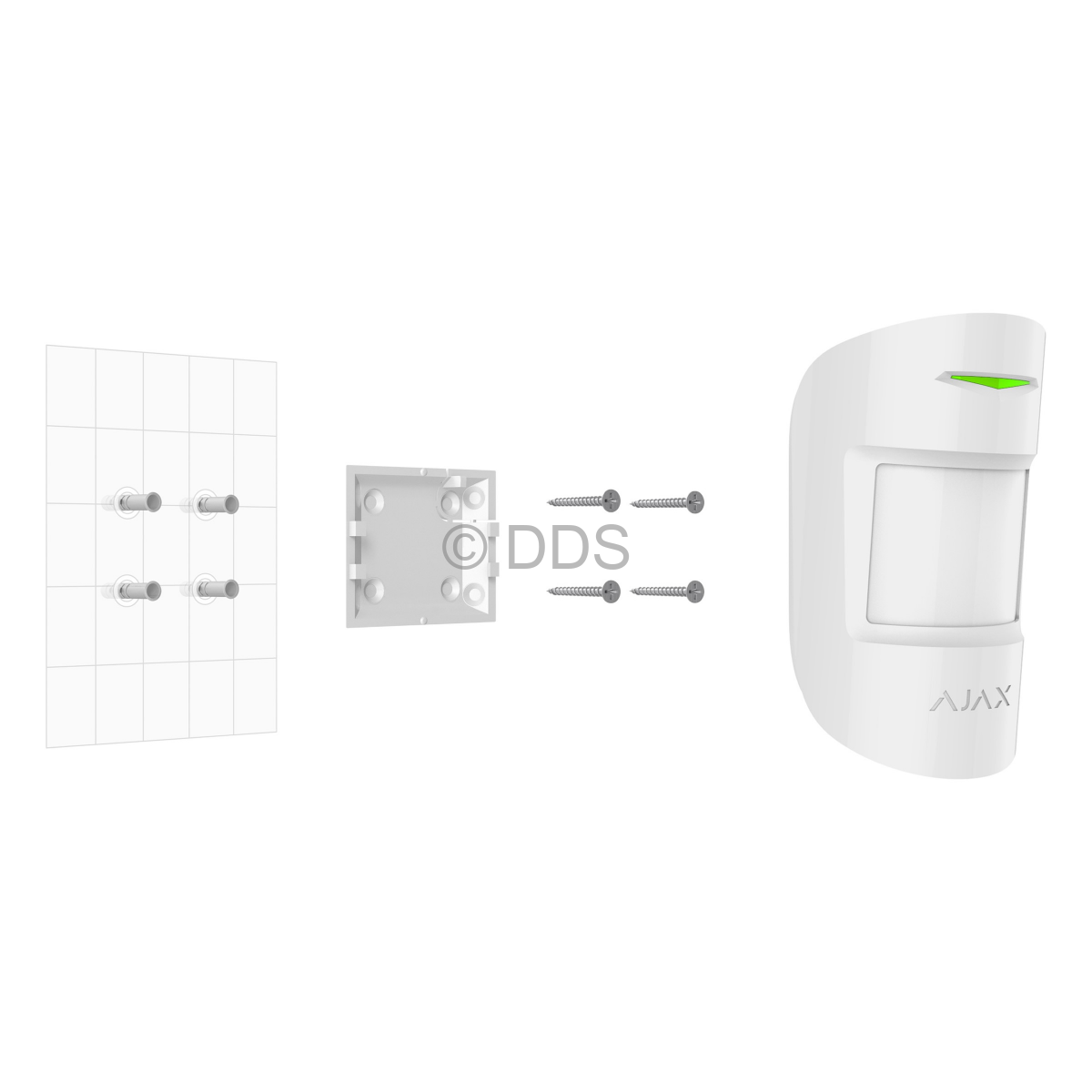

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather. The additional microwave sensor filters possible interference from the air conditioner and curtain movement.
- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Microwave sensor detects and ignores draughts, movement of curtains and blinds, light flickering, glare, and reflections
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 5 years without battery replacement
- Vertical detection: 80°
- Horizontal detection: 88.5°
Technical Specifications | |
Classification | Electro-optical combined radio channel security detector |
Installation method | Indoors |
Compatibility | Operates with all Hubs (except standard Hub) and all Range Extenders |
Sensing element | PIR sensor, microwave sensor (24 GHz) |
Alarm signal delivery time | 0.15s |
Motion detection distance | Up to 12m |
Detection angles | Horizontal: 88.5° Vertical: 80° |
Recommended installation height | 2.4m |
Pet immunity | Weight: up to 20 kg Height: up to 50 cm |
Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
Power supply | Battery: CR123A battery Power supply voltage: 3 V Battery life: up to 5 years |
Permissible humidity | Up to 75% |
Operating temperature range | +5°С to +40°С |
Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
Dimensions | 110mm х 65mm × 50mm |
Weight | 105g |
Certification | CE EN 50131-2-4 (Grade 2) PD 6662:2017 INCERT (coming soon) SSF (coming soon) NFA2P (coming soon) |
