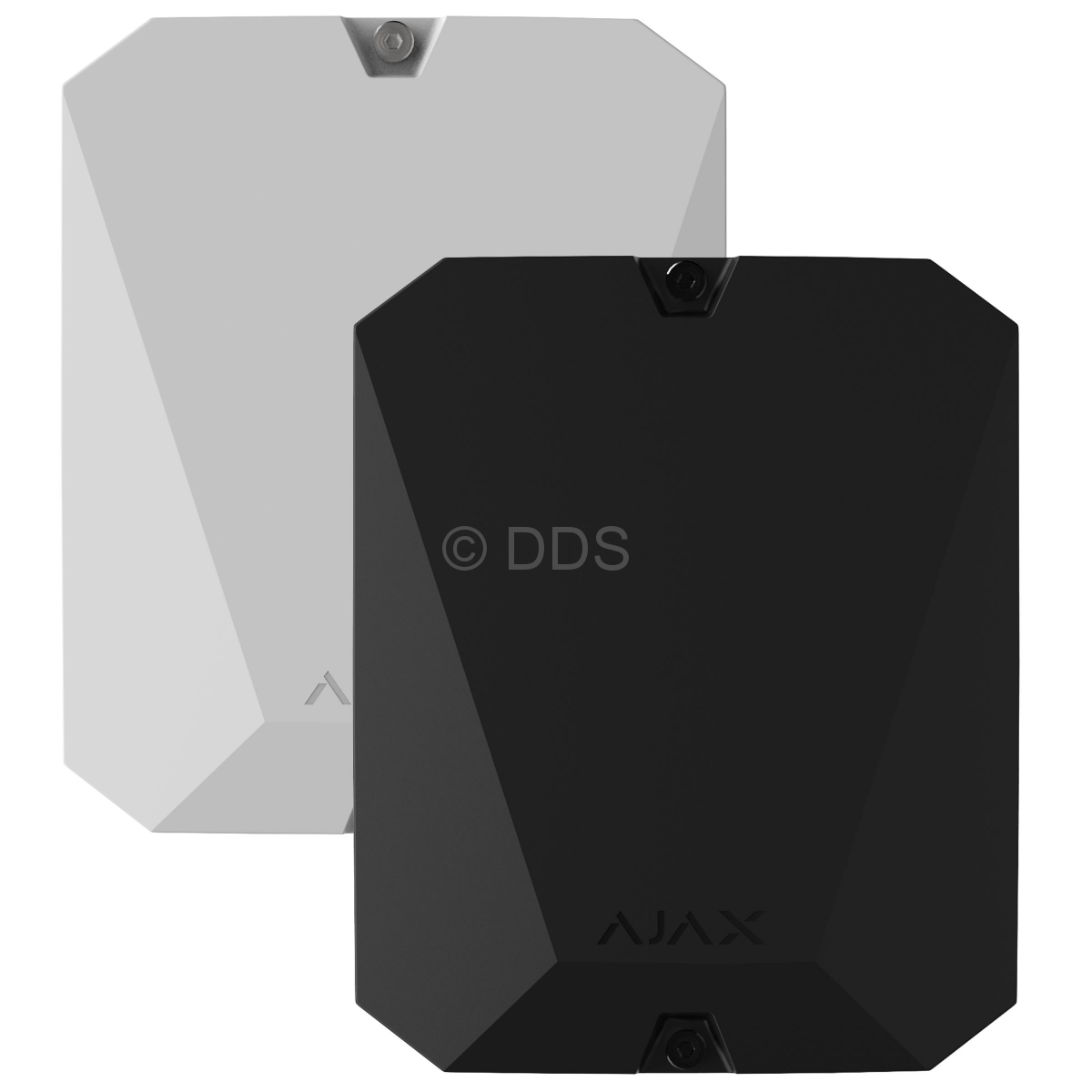

MultiTransmitter for 3rd Party Detectors

Call us for a price

AJX-MTX(20355/22988)

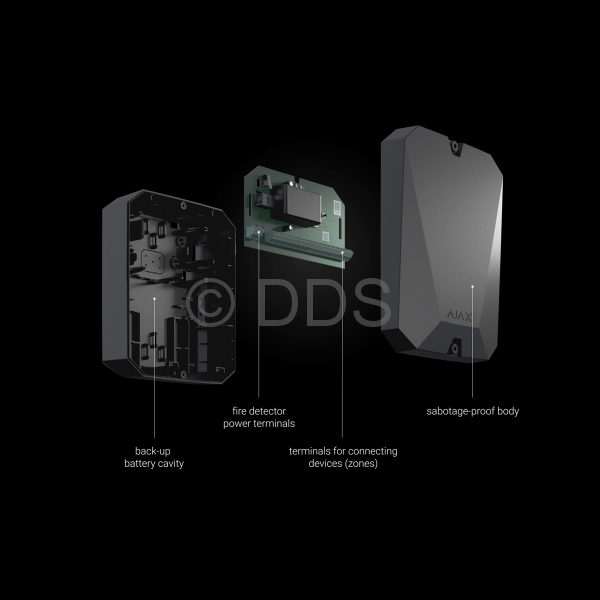

Wireless module for connecting multiple wired outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices to the Ajax security system. It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

- Converts third-party detectors to the Ajax full-featured devices
- Up to 18 detectors
- Output of 12V DC for all detectors
- Supports a backup battery (see here)



Technical Specifications
Classification Module for third-party detector integration
Installation method Indoors
Compatibility Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
Number of alarm/tamper zones 18
Supported detector contact types NO, NC (without R), EOL (NC with R), EOL (NO with R)
Resistance of the EOL resistor 1 kΩ to 7.5 kΩ
Alarm signals processing mode Pulsed or bistable
Protection against dismantling Tamper
Alarm signal delivery time 0.15s
Radio signal frequency band 868.0–868.6 MHz
Mains Power supply 110–255 V, 50/60 Hz
Backup Power 12V DC
Supported battery type Battery with 4 or 7 A⋅h capacity (not included)
Detector power supply 12V DC, up to 1 A for all detector power supply outputs
Maximum radio signal power Up to 7.29 mW (25 mW limit)
Operating temperature range -10°С to +40°С
Operating humidity Up to 75%
Dimensions 196mm х 238mm x 100mm
Weight 805g
