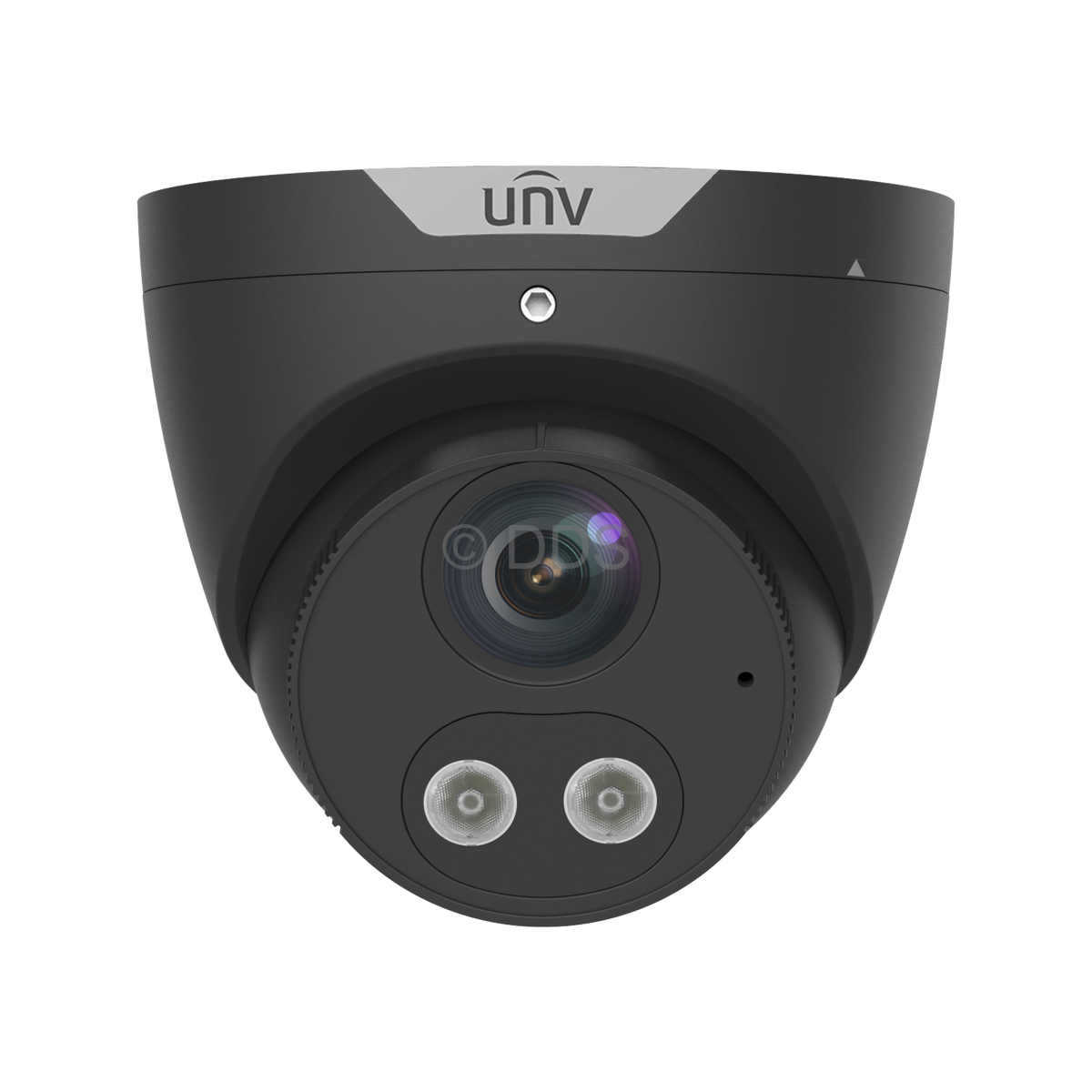

Black Tri-Guard Camera (5MP, AI, WhiteLight, Two-Way Audio)
Save
100%
100%
Part of the Uniview Tri-Guard series, this turret IP camera has an impressive 5 megapixel HD resolution with a 4mm fixed-focal lens. Supporting Ultra265 compression, with up to 30m of IR range and up to 30m of White Light, allowing this camera to stay in colour 24/7. Alongside this, it also features a built-in speaker and microphone allowing for 2-way audio. In addition, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.
- Resolution 5MP (2880 x 1620), POE
- Fixed 4mm Lens, Viewing Angle 83.7° (H)
- Smart IR, Up To 30m of Infrared and 30m White Light Range
- Built-in Microphone and Speaker
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 55°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
- 4kV Surge Protection
Camera
Image Sensor:
ColourHunter CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 4mm Lens
Field of View:
83.7°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
90.0m
Observe:
36.0m
Recognise:
18.0m
Identify:
9.0m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.002Lux, 0Lux with IR on
IR Range:
25-30m
White Light Range:
25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@30fps
Sub Stream:
720x576@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 7.5W
Operating Temperature:
-30°C ~ +55°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
430g
Interface
Built-in Microphone:
Yes
Built-in Speaker:
Yes
All dimensions are in millimetres (mm)
KM-WL-I0.jpg?1617180275271)
Different ways of mounting this camera:
This camera has the following special features:

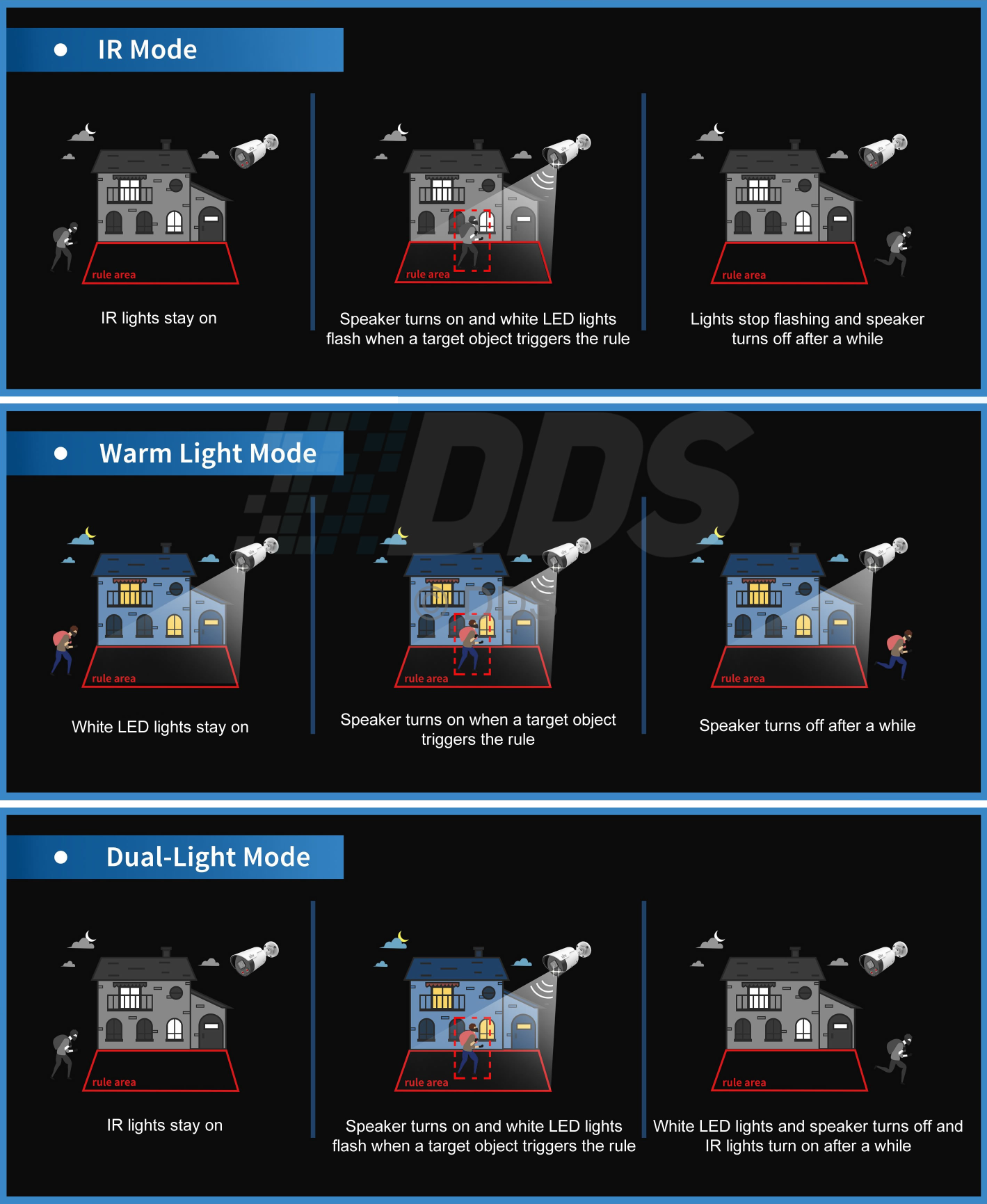

Active Deterrence
This camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Enter Area - Entering into a pre-defined virtual region
- Face Capture - Intelligent detection and capture of human faces
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Counting - Count the number of people crossing a line or in an area
- Tamper Identification - Detect when the camera has been physically tampered with
