PAC 212 HF Controller (Enclosure)
Save
100%
100%

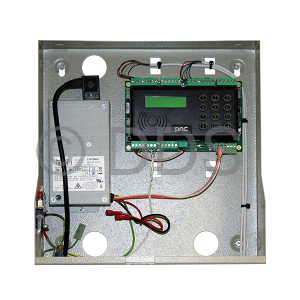

The PAC 212 Access controller range provides cost effective deployment of fully featured access control without the need for any additional software. Built on the PAC 512 controller, the PAC 212 is a standalone access controller that supports onsite programming via an onboard keypad. Pre-wired with 3 Amp PSU in metal case with tamper switch and circuit.
- In-built HF proximity reader
- Configurable for Residential or Commercial Applications
- Up to 2,000 ID Devices
- 2 Readers per channel when using PAC or PAC64bit output readers
- Database and Events are exportable on USB drive (included) and viewable on any device with a Windows operating system.
| Technical Specifications | |
| Number of ID Devices supported | 2000 |
| Supported access control reader protocol | PAC and PAC64 |
| Supported ID Device formats | PAC (Cards and Tokens) Key PAC (Cards and Tokens) Stanley (Cards and Tokens) PAC Ops™ Lite (Cards and Tokens) PAC Ops™ (Cards and Tokens) |
| Number of doors supported | 2 doors with up to 4 access control devices as per the following options: - An access control reader per door - An access control reader and Push To Exit (PTE) device per door - 2 access control readers per door (read-in and read-out) |
| LCD Display | Backlit LCD display for full user notification and engineering settings |
| Configuration | Locally using the integrated keypad and administration reader Via PC with PAC Access Central/EasiNet Residential software (4.6 version or above required) |
| Event storage | 4000 events stored locally that can be exported to a PC via a USB memory device |
| Access Controller input devices | PAC readers (LF, HF and MT) PAC PTE switches Door contacts |
| Input connection features | Programmable relays for Door forced / left open 1 x tamper alarm input 1 x override input |
| Output connection features | 2 x Lock outputs 2 x Auxiliary Outputs |
| Distance to input devices | 70m |
| Recommended Cabling | 0.22mm 8 core alarm cable |
| Power input | 10.5 – 28 V DC 50/60 Hz @ 350mA |
| Power outputs | 2 x 5Amp @ 30V DC |
| Standards Compliance | CE, RoHS & WEEE compliant |
| Operating temperature range | 0°С to +35°С |
| Permissible humidity | 10% to 85% |
| Dimensions | 335mm х 335mm x 90mm |
