Quadra Video Entrance Panel (Simplebus2)

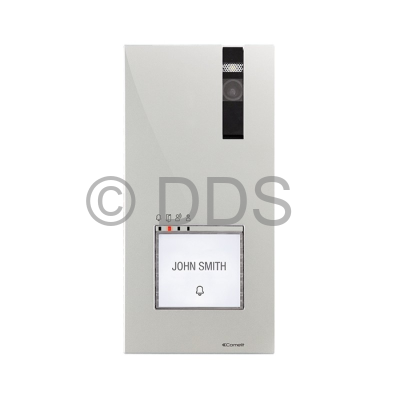

Quadra series wall-mounted external video entry unit with mechanical buttons. Die-cast aluminium faceplate, wide-angle colour camera and a single LED for night-time lighting. Indicator LED for call sent, lock-release activated, audio activated and system busy. Adjustment of speaker volume and audio balance. Power supply from bus line.
| Technical Specifications | |
| General Data | |
| Type | Monoblock |
| Height (mm) | 195 |
| Width (mm) | 95 |
| Depth (mm) | 28 |
| Product Colour | Grey RAL 9006, Black RAL 9005 |
| Product Weight (g) | 300 |
| Type of Finishing Materials | Aluminium alloy |
| Wall-Mounted | Yes |
| Compatible Systems | |
| Simplebus 2 audio/video kit with power supply art. 1209 | Yes |
| Audio Features | |
| Microphone | 6mm (Ø), Omnidirectional |
| Loudspeaker | 36mm (Ø), 8 Ohm, 1W |
| Camera Features | |
| Sensor Type | 1/4" CMOS |
| Focal Lens | 2.1mm |
| Angle of View | 85° (H) | 72° (V) |
| Sensitivity (Lux) | 0.1 (Colour) |
| Electrical Characteristics | |
| Type of Power Supply | Power supply from video door entry bus |
| Supply Voltage | 33V DC |
| Maximum Absorption (W) | 8.25 |
| Hardware Features | |
| Call Type | Push-buttons |
| Type of Buttons | Mechanical |
| Number of Push-Buttons | 4 |
| Backlight Colour | White |
| Number of Inputs (n°) | 2 |
| Number of Outputs (n°) | 2 |
| Type of Outputs | Relay (C-NO-NC, 10A@12÷24 VAC/VDC), SE: unlock pulse of 4A, holding current of 200mA for 12VAC / DC locks (maximum impedance 18 Ohm) |
| Settings | |
| Loudspeaker Volume | Yes |
| Backlight Brightness | Yes |
| Environmental and Compliance Features | |
| IP Protection Rating | IP54 |
| Vandal Resistant Rating | IK08 |
| Operation Temperature | -25°C ~ +55°C |
| Operating Humidity (RH Max) | 25 ~ 95% |
| Environmental Class | IV |
| CE Certifications | RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011) |
| Main Functions | |
| Door Opener | Yes |
| Number of Auxiliary Relays (n°) | 1 |
| Input for Local Door Release Button | Yes |
| Door Open Signalling Input | Yes |
