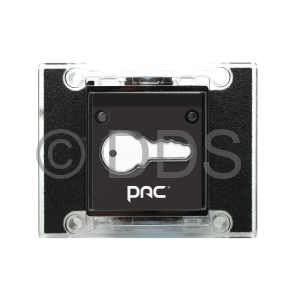

PAC RFID HF Reader (Panel)
Save
100%
100%
The Panel Mount Reader is designed to fit OEM door entry panels which makes it an easy retrofit reader option. Designed to work in the most demanding of operating environments, HF Readers support installations which require reliability and security. It is also designed to fit into standard panel openings for integration with intercoms and other systems.
- Raised Key Symbol
- High Frequency (13.56MHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP65 rated
| Technical Specifications | |
| Programmable Output Formats | PAC32, PAC64, Wiegand |
| Supported ID Device formats | PAC OPS™ Lite (Cards and Tokens) PAC OPS™ (Cards and Tokens) |
| Maximum Read Range | HF: Up to 20mm |
| Intruder Grading | Security Grade 3, Environmental Class 4A |
| Ingress Protection Rating | IP65 |
| Audio Visual Indication | Audible Sounder and Red/Green LEDs |
| Tamper Output | Yes (dependent on controller specification), meets EN 50131-1 & 3 |
| Recommended Cabling | 6 core 24 AWG alarm cable unscreened for PAC 5-core 22 AWG cable for Wiegand |
| Operating Voltage | 12V to 24V DC |
| Maximum Current Requirements | <90mA @ 12V DC |
| Weight | 106g |
| Standards Compliance | UKCA, CE, UL, FCC, IC, RoHS & WEEE compliant |
| Operating temperature range | -40°С to +66°С |
| Permissible humidity | 10% to 85% |
| Dimensions | 80mm х 75mm x 16mm |
