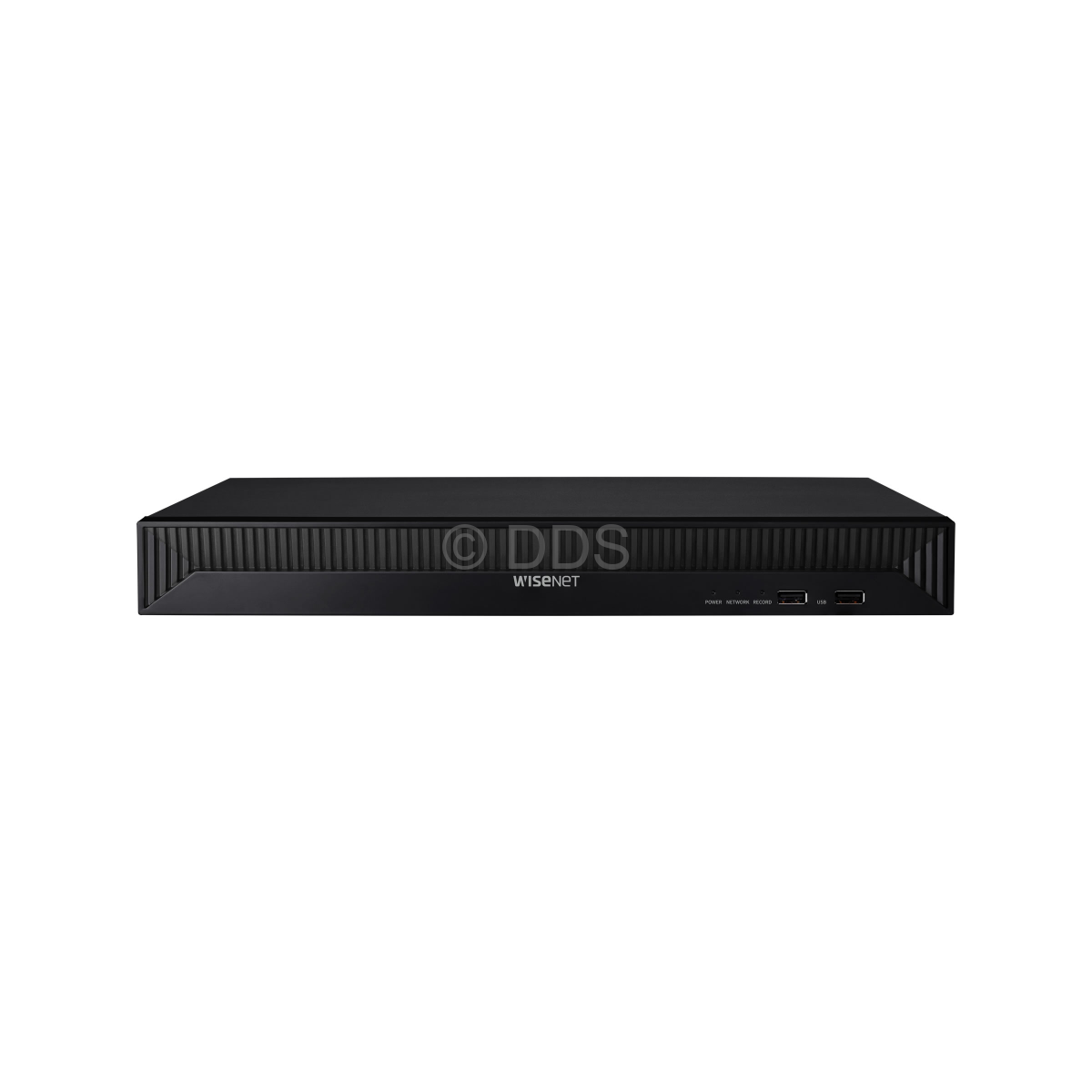

Hanwha NVR (16 Channel, 16 POE)
Part of the Hanwha Q-Series, this IP NVR (Network Video Recorder) has support for up to 16 cameras, and up to 8MP resolution. It supports plug-and-play when used with Hanwha cameras and also supports ARB (Auto Recovery Backup).
- 16 Channel Video & Audio
- 16 POE Ports
- Supports up to 8MP IP Cameras
- Bandwidth: 128Mbps
- 2x HDMI Output
- Up to 2 HDDs (max 6TB each)
- ONVIF Compliance (Profiles S)
- Supports MJPEG, H.264, or H.265
- Alarm 4 In, 2 Out
Video/Audio Input
Video Input:
16ch H.264/H.265
Video/Audio Output
Live View/ Playback/ Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF
Playback Capacity:
Max. 32Mbps
HDMI Output:
HDMI1: up to 3840x2160 | HDMI2: up to 1920x1080
Audio Output:
1ch, Line out
Hard Disk
Drive quantity:
Up to 2 SATA drives
Drive capacity:
Up to 10TB each
Network
Network Interface:
RJ45 10M/100M/1000M
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
POE Interface:
16x 100Mbps, IEEE802.3af/IEEE802.3at
POE Max Power:
130W for all ports
General
Power Supply:
AC 100~220V
Power Consumption:
Max. 200W (with HDD and POE)
Operating Temperature:
0°C ~ 40°C
Operating Humidity:
20% - 85% RH
Product Dimensions:
370mm(W) x 320mm(D) x 51mm(H)
Interface
Video Outputs:
HDMI (x2)
USB:
USB 2.0 (x2)
Audio I/O:
Audio line out (x1)
