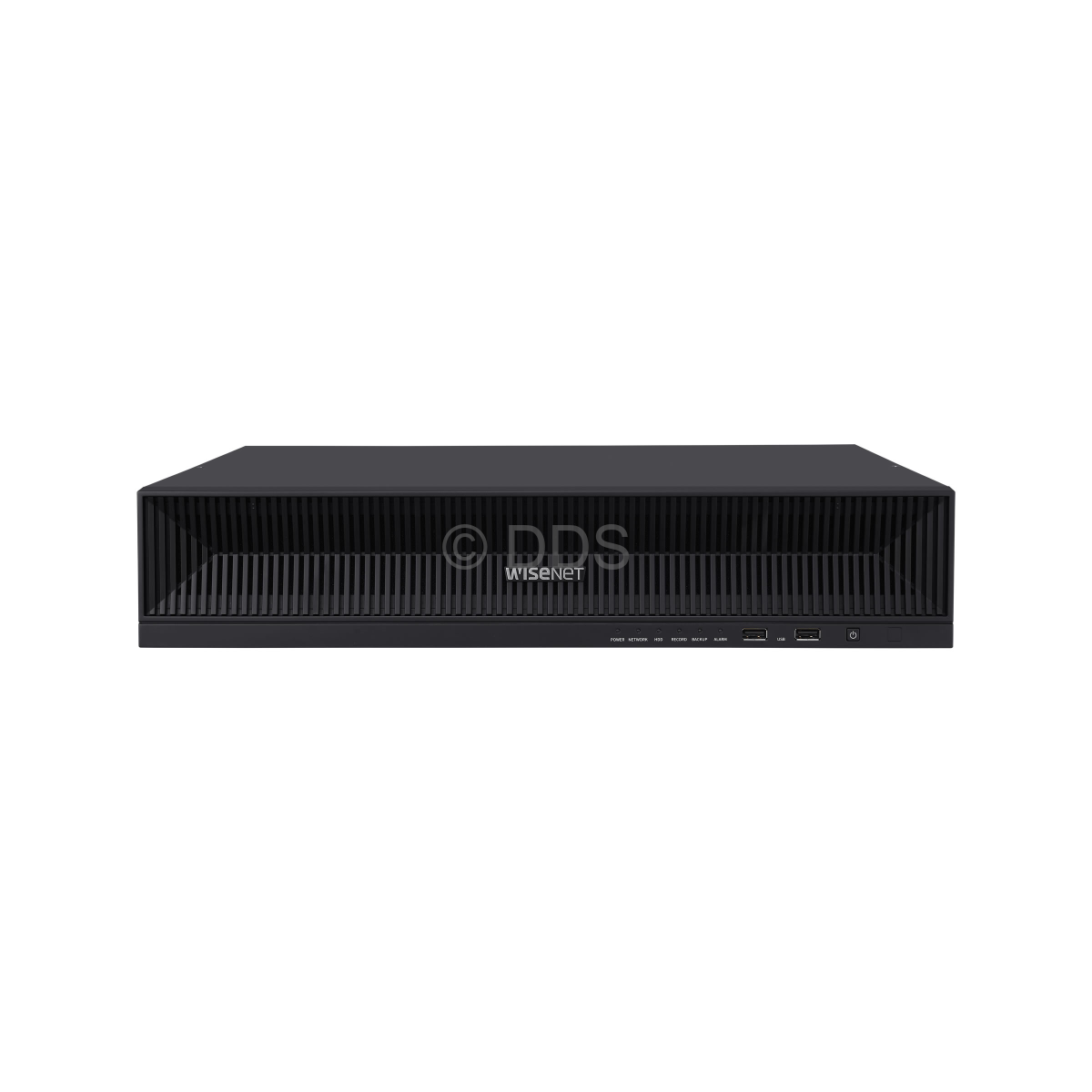

Hanwha NVR (32 Channel)
Part of the Hanwha X-Series, this IP NVR (Network Video Recorder) has support for up to 32 cameras, and up to 32MP resolution. It can support AI features when used with Wisenet AI cameras, and search various attributes from AI cameras such as people (gender, age, hat, bag, colour of clothes) and vehicle (type, colour).
- 32 Channel Video & Audio
- Supports up to 32MP IP Cameras
- Bandwidth: 400Mbps (distributed mode) / 150Mbps (normal mode)
- AI support with Wisenet AI cameras
- 2 HDMI Output
- Up to 8 HDDs (max 10TB each)
- ONVIF Compliance (Profiles S)
- Supports MJPEG, H.264, H.265 and WiseStream
- Alarm 8 In, 4 Out
Video/Audio Input
Video Input:
32ch H.264/H.265
Video/Audio Output
Live View/ Playback/ Recording Resolution:
32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF
Playback Capacity:
Max. 32Mbps
HDMI Output:
HDMI1: up to 3840x2160 | HDMI2: up to 1920x1080
Audio Output:
1ch, Line out
Hard Disk
Drive quantity:
Up to 8 SATA drives
Drive capacity:
Up to 10TB each
Network
Network Interface:
3x RJ45 10M/100M/1000M
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
POE Interface:
N/A
POE Max Power:
N/A
General
Power Supply:
AC 100~220V
Power Consumption:
Max. 138W (with 8x 10TB HDD)
Operating Temperature:
0°C ~ 40°C
Operating Humidity:
20% - 85% RH
Product Dimensions:
438mm(W) x 435mm(D) x 86mm(H)
Interface
Video Outputs:
HDMI (x2)
USB:
USB 3.0 (x2), USB 2.0 (x2)
Audio I/O:
Audio line out (x1)
Alarm I/O:
Alarm input (x8), Alarm output (x4)
