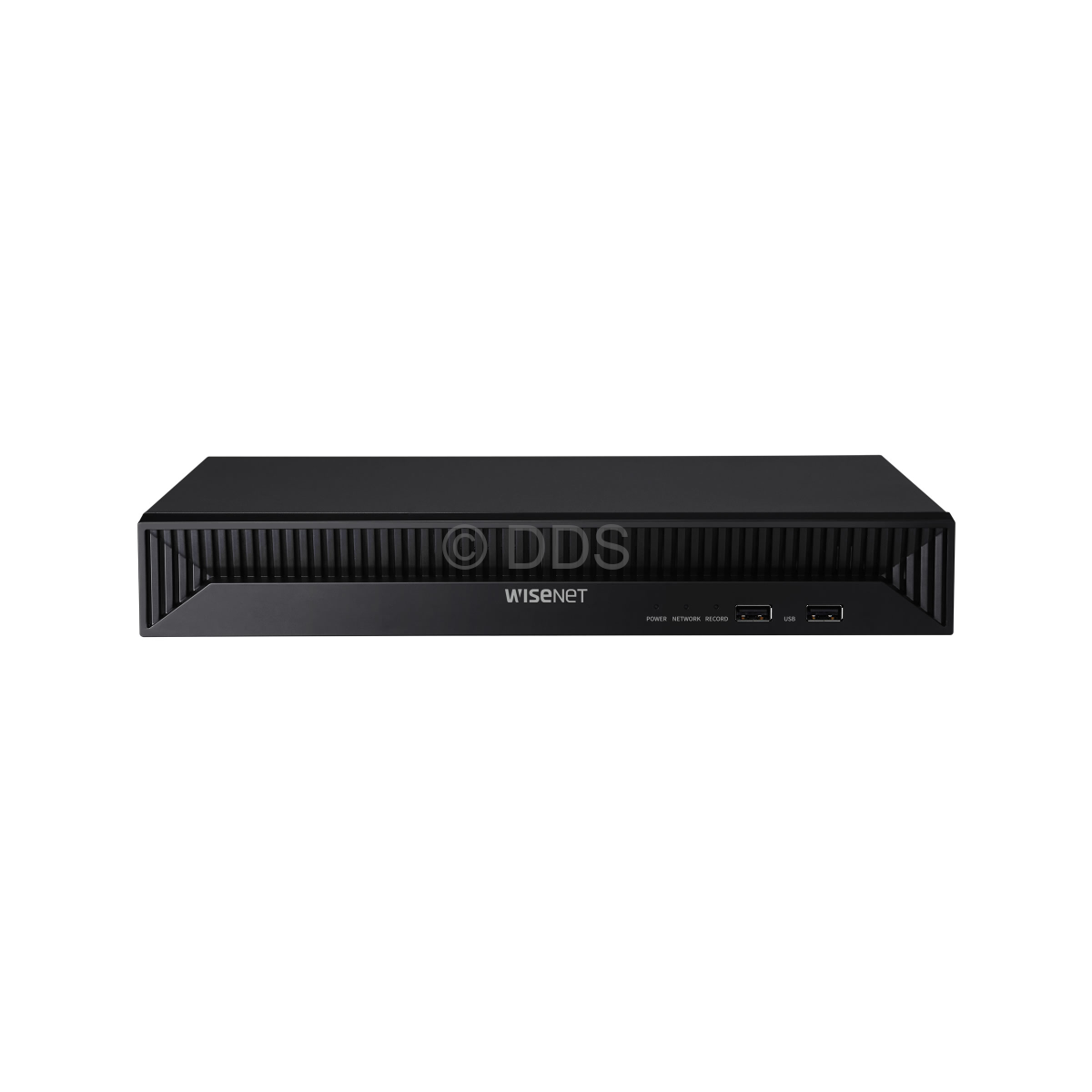

Hanwha NVR (8 Channel, 8 POE)
Part of the Hanwha Q-Series, this IP NVR (Network Video Recorder) has support for up to 8 cameras, and up to 8MP resolution. It supports plug-and-play when used with Hanwha cameras and also supports ARB (Auto Recovery Backup).
- 8 Channel Video & Audio
- 8 POE Ports
- Supports up to 8MP IP Cameras
- Bandwidth: 80Mbps
- HDMI Output
- Up to 1 HDD (max 6TB)
- ONVIF Compliance (Profiles S)
- Supports MJPEG, H.264, or H.265
Video/Audio Input
Video Input:
8ch H.264/H.265
Video/Audio Output
Live View/ Playback/ Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF
Playback Capacity:
Max. 32Mbps
HDMI Output:
Up to 3840x2160
Audio Output:
1ch, Line out
Hard Disk
Drive quantity:
Up to 1 SATA drive
Drive capacity:
Up to 6TB
Network
Network Interface:
RJ45 10M/100M/1000M
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
POE Interface:
8x 100Mbps, IEEE802.3af/IEEE802.3at
POE Max Power:
65W for all ports
General
Power Supply:
DC 54V
Power Consumption:
Max. 84W (with HDD and POE)
Operating Temperature:
0°C ~ 40°C
Operating Humidity:
20% - 85% RH
Product Dimensions:
300mm(W) x 239mm(D) x 48mm(H)
Interface
Video Outputs:
HDMI
USB:
USB 2.0 (x2)
Audio I/O:
Audio line out (x1)
