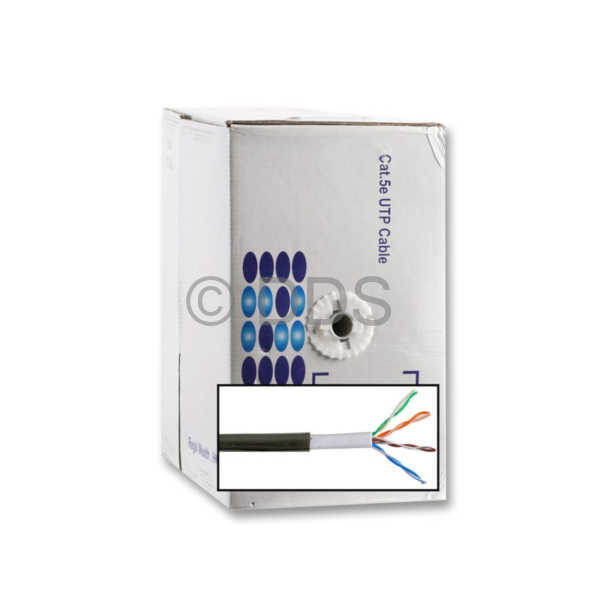

Outdoor CAT5e (Double Sheath, Solid Copper, PE+PVC, 305m)

Home/Cabling/Cables & Connectors/CAT5/6 Cable/Outdoor CAT5e (Double Sheath, Solid Copper, PE+PVC, 305m)

4 of 9

High-Grade Outdoor CAT5E Data cable (UTP), Double Sheath

£116.95

(£140.34 inc VAT)

Quantity:

+ −

Order Code: CBL-EXT-CAT5(305M)

Description

This cable is specifically designed for CCTV use over long distances

- Cat5e UTP Double Sheath
- 4 pairs, solid cable
- 305m
- Solid Copper
- Colour: Black

Technical Specifications
Cable Construction
Conductor	Bare Copper
Conductor Diameter (mm)	0.495 ±0.005
AWG	24
Insulation
Insulation Diameter (mm)	0.09 ±0.05
Insulation Colours	Blue+White/Blue; Orange+White/Orange; Green+White/Green; Brown+White/Brown
Jacket
1st Jacket Material	PVC
Jacket Thickness (mm)	0.8
Overall Diameter (mm)	5.8 ±0.2
2nd Jacket Material	PE
Jacket Thickness (mm)	0.3
Overall Diameter (mm)	6.4 ±0.2
Electrical Characteristics
Max Conductor DC resistance @ 20°C	<96Ω/km
Rated Temperature	60°C
