Monitored Double Mini Magnet

Call us for a price

*Lead time of 2-3 days*

AA-10005

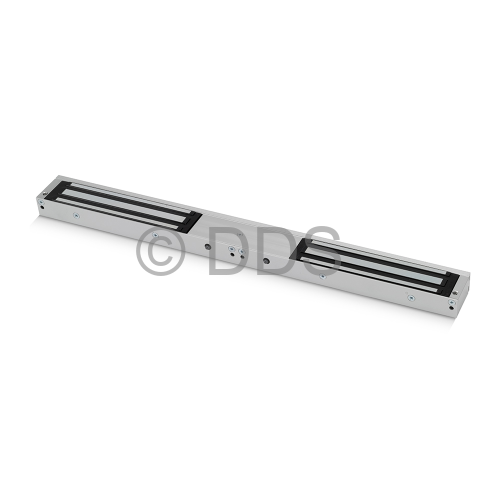

Monitored Double Mini Magnet

- Operating voltage 12~24V DC (selectable)
- Fail-Safe (Power-to-Lock)
- Holding force up to 600lbs (272kg) on each side
- Voltage tolerance: ±15%
- Status LED's (Red and Green)
- Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C)
- Lock’s surface temperature: Current temperature ±20% (when power is on)
- Operating temperature: -10°C to +55°C
- Built-in magnetic bond sensor monitor output remotely monitors the door lock or unlock status (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc)
- Supplied with armature plate
