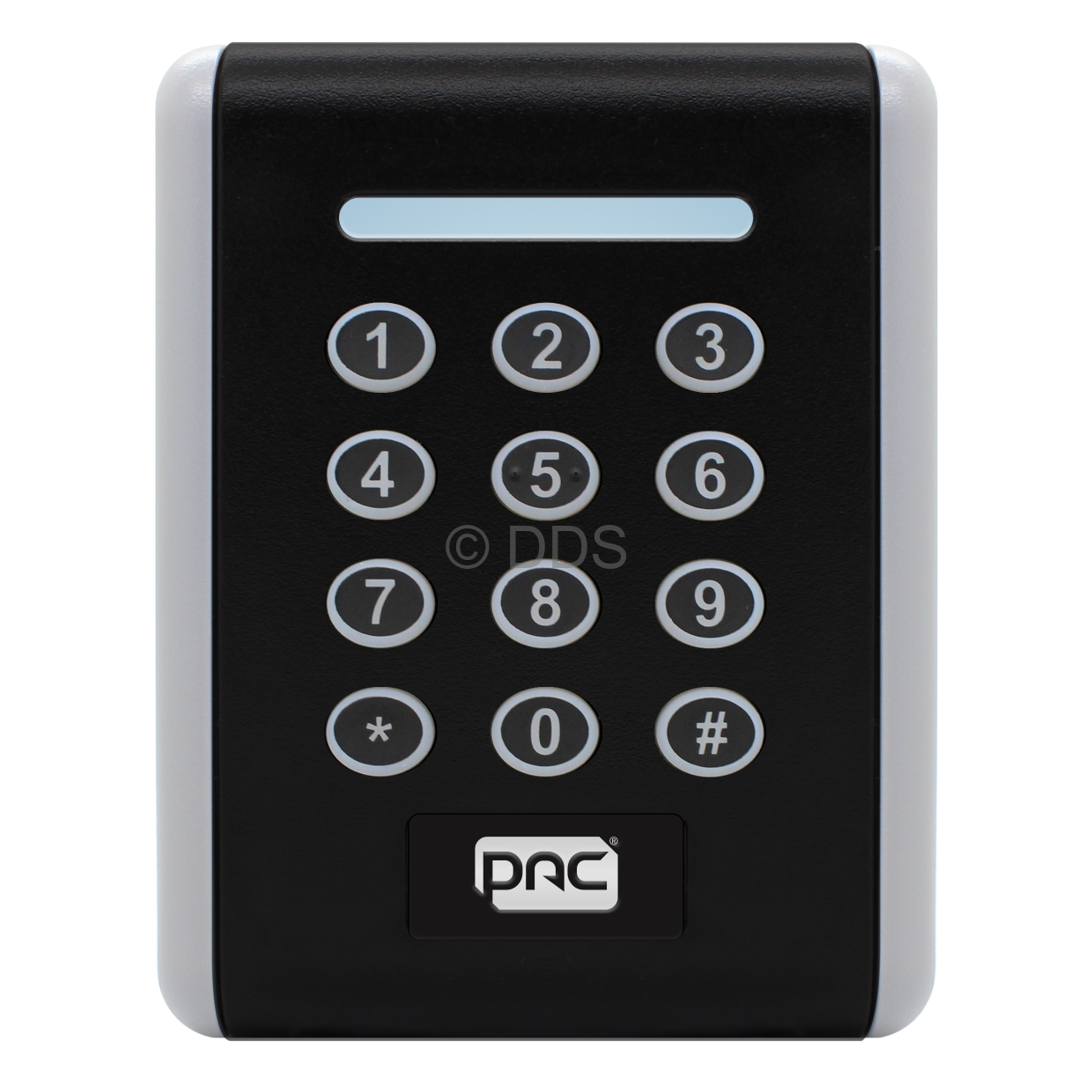

PAC RFID HF Reader (PIN & Proximity)
Save
100%
100%
PAC's MT Readers provide the one single reader solution that supports all PAC RFID credentials, as well as support for all standard LF and HF credentials supported via Wiegand protocols. It is therefore ideal for sites where support of multiple ID Device types is required.
- Integral Tamper circuit and Mounting Plate
- Supports multiple PIN Modes including PAC PIN Blocking, PAC PIN, PAC64 PIN and various Wiegand PIN options
- High Frequency (13.56MHz)
- Audible Sounder and Red/Green LEDs
- Security Grade 3
- IP65 rated
| Technical Specifications | |
| Programmable Output Formats | PAC32, PAC64, Wiegand |
| Supported ID Device formats | PAC OPS™ Lite (Cards and Tokens) PAC OPS™ (Cards and Tokens) |
| Maximum Read Range | Up to 45mm |
| Intruder Grading | Security Grade 3, Environmental Class 4A |
| Ingress Protection Rating | IP65 |
| Audio Visual Indication | Audible Sounder and Red/Green LEDs |
| Tamper Output | Yes (dependent on controller specification), meets EN 50131-1 & 3 |
| Recommended Cabling | 6 core 24 AWG alarm cable unscreened for PAC |
| Operating Voltage | 12V to 24V DC |
| Maximum Current Requirements | <100mA @ 12V DC |
| Weight | 294g |
| Standards Compliance | UKCA, CE, FCC, IC, RoHS & WEEE compliant |
| Operating temperature range | -40°С to +66°С |
| Permissible humidity | 10% to 85% |
| Dimensions | 115mm х 89mm x 30mm |
