Ethernet and Power over Coax and Cat5

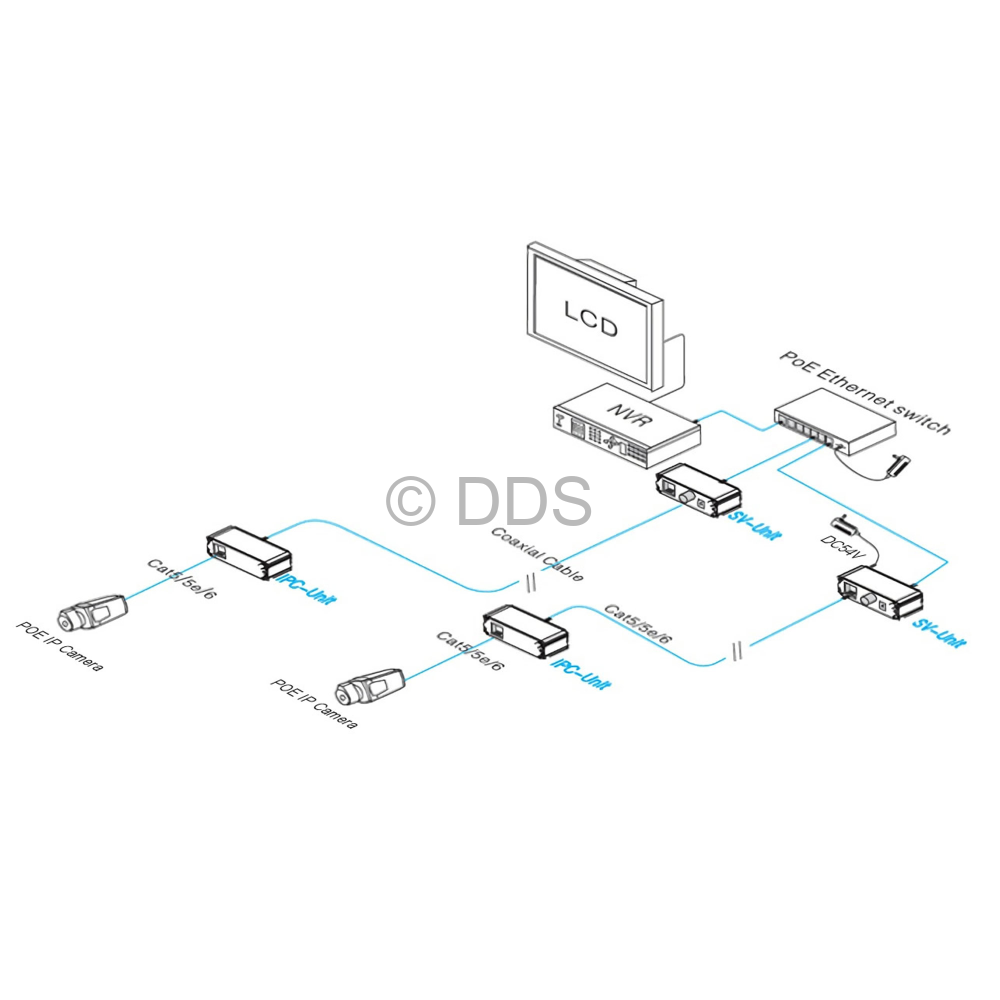

Designed to resolve the problems of short HD IP transmission, the POE Ethernet Extender enables Ethernet and POE power transmission distances of up to 350m (cable quality dependent) via an RG59 coaxial or Cat.5e cable between the two extender units; with a latency of < 1ms.

- 1 RJ45 Input, optional POE (SV unit) and optional 48vDC power
- 1 RJ45 Output, POE (IPC unit)
- 1 RG59 BNC port & 1 RJ45 (extender ports)
- Extends standard Ethernet driving distance to 350m
- Supplied as a pair (SV and IPC unit)
- SV unit POE voltage range: 48 - 57vDC
- Compatible with Mid-span & End-span equipment
- Supports POE IEEE802.3af, IEEE802.3at
- Supports IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
- ESD and lightening protection
- Plug 'n Play operation
- Dimensions: 64 x 82 x 25mm
- Weight: 155gms
