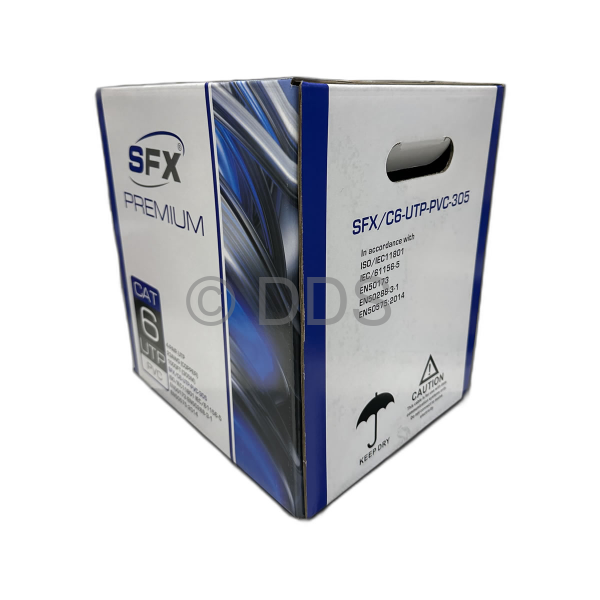

SFX Internal CAT6 (Solid Copper, PVC, Grey, 305m)
This internal cable is specifically designed for CCTV use over long distances
- Cat6 UTP
- 4 pairs, solid cable
- Verified performance to ISO/IEC 11801 and ANSI/TIA-568-C.2
- 305m / 1000ft
- 24 AWG solid copper conductors
- Colour: Grey
| Technical Specifications | |
| Cable Construction | |
| Conductor | Bare Copper |
| Conductor Diameter (mm) | 0.565 ±0.02 |
| AWG | 23 |
| Insulation | |
| Insulation Thickness (mm) | 0.18 |
| Insulation Diameter (mm) | 1.02 ±0.08 |
| Insulation Colours | Blue+White/Blue; Orange+White/Orange; Green+White/Green; Brown+White/Brown |
| Jacket | |
| Material | PVC |
| Jacket Thickness (mm) | 0.55 ±0.03 |
| Overall Diameter (mm) | 6.10 ±0.03 |
| Jacket Colour | Grey RAL 7004 |
| Sheath Printing | Cat 6 UTP 4PR 23AWG PVC ISO/IEC 11801 ANSI/TIA 568C.2 (PO) (m) |
| Reaction to Fire | Eca |
| Electrical Characteristics | |
| Max Conductor DC resistance @ 20°C | <93.80Ω/km |
| Rated Temperature | 80°C |
| Impedance (1-100MHz) | 100Ω ±15Ω |
| Test Standards | ISO/IEC 11801; ANSI/TIA 568-C.2 |
