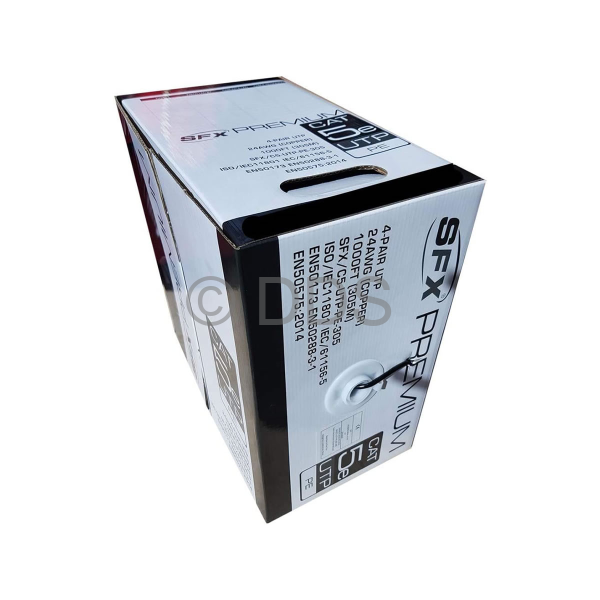

SFX Outdoor CAT5e (Solid Copper, PE, 305m)
This cable is specifically designed for CCTV use over long distances
- Cat5 UTP, UV & moisture resistant PE sheath
- 4 pairs, solid cable
- Verified performance to ISO/IEC 11801 and ANSI/TIA-568-C.2
- 305m / 1000ft
- 24 AWG solid copper conductors
- Colour Black
| Technical Specifications | |
| Cable Construction | |
| Conductor | Bare Copper |
| Conductor Diameter (mm) | 0.50 ±0.02 |
| AWG | 24 |
| Insulation | |
| Insulation Thickness (mm) | 0.18 |
| Insulation Diameter (mm) | 0.88 ±0.08 |
| Insulation Colours | Blue+White/Blue; Orange+White/Orange; Green+White/Green; Brown+White/Brown |
| Jacket | |
| Material | PE |
| Jacket Thickness (mm) | 0.49 ±0.03 |
| Overall Diameter (mm) | 4.80 ±0.03 |
| Jacket Colour | Black RAL 9005 |
| Sheath Printing | Cat 5e UTP 4 PR 24AWG PE ISO/IEC 11801 ANSI/TIA 568C.2 (PO) (m) |
| Reaction to Fire | Fca |
| Electrical Characteristics | |
| Max Conductor DC resistance @ 20°C | <93.80Ω/km |
| Rated Temperature | 80°C |
| Impedance (1-100MHz) | 100Ω ±15Ω |
| Test Standards | ISO/IEC 11801; ANSI/TIA 568-C.2 |
