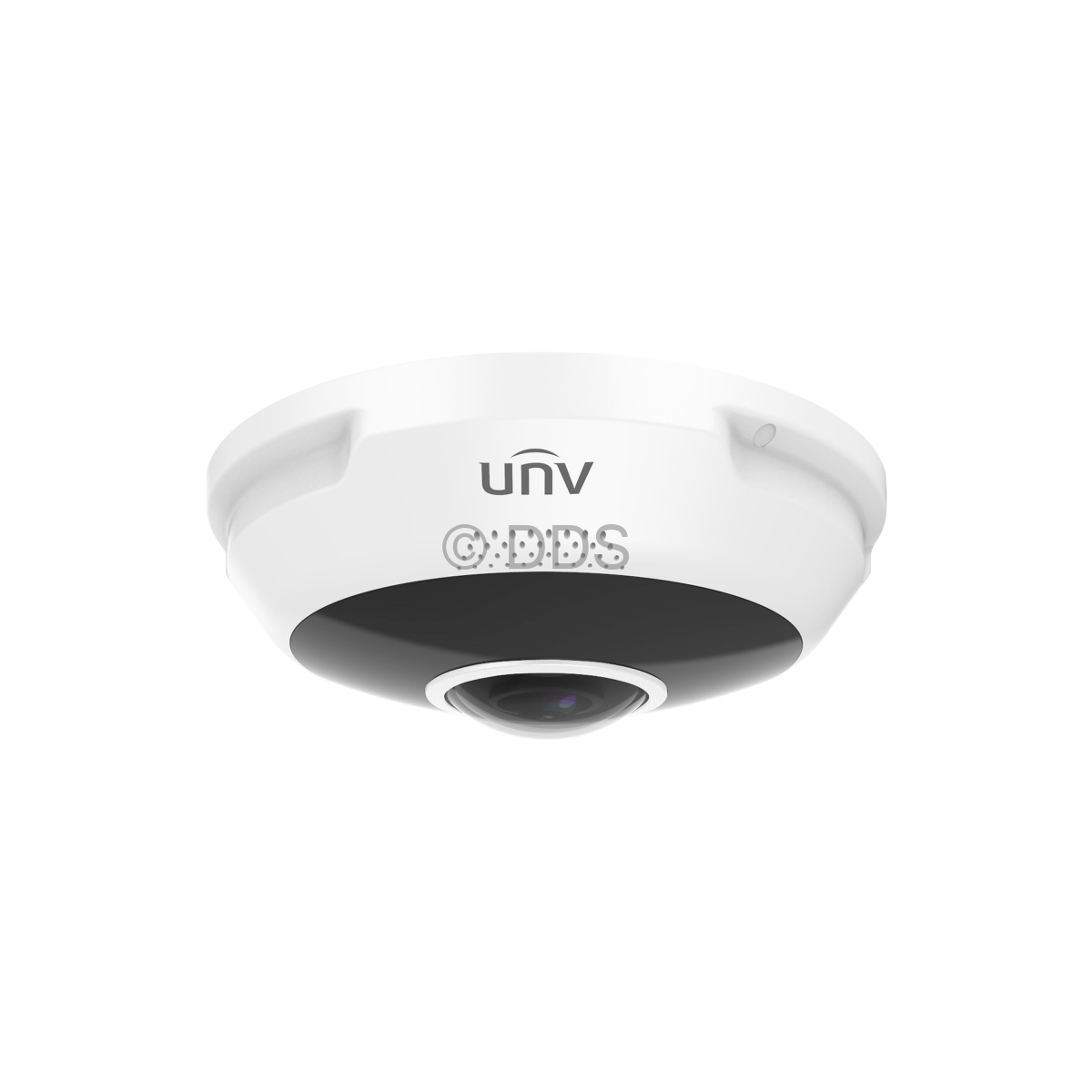

12MP AI Fisheye IP Camera (360° View, Two-Way Audio)
Save
100%
100%
Part of the UNV Omniview range, this fisheye IP camera boasting an impressive 12 megapixel UHD recording resolution and a 1.8mm fixed-focal lens. Supporting Ultra265 compression and 15m of IR range; this camera also features a built-in microphone/speaker and MicroSD card slot. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.
- Vandal Resistant (IK10 Rated)
- Resolution 12MP (4000 x 3000), POE
- Fixed 1.8mm Lens, Viewing Angle 360° (H)
- Smart IR, Up To 15m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Built-in omnidirectional microphone and speaker for 2-way audio
- Fisheye, panoramic, and PTZ view
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
Camera
Image Sensor:
CMOS (1/1.7")
Resolution:
12MP
Effective Pixels (H x V):
4000 x 3000
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Wide Dynamic Range:
dWDR
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 1.8mm Lens
Field of View:
360°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
43.8m
Observe:
17.5m
Recognise:
8.8m
Identify:
4.4m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.03Lux, 0Lux with IR on
IR Range:
10-15m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
4000x3000@20fps
Sub Stream:
2000x1500@20fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 12W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
524g
Interface
Built-in Microphone:
Yes (x2)
Built-in Speaker:
Yes
Video Outputs:
BNC out (x1)
Audio I/O:
Audio in (x1), Audio out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x1)

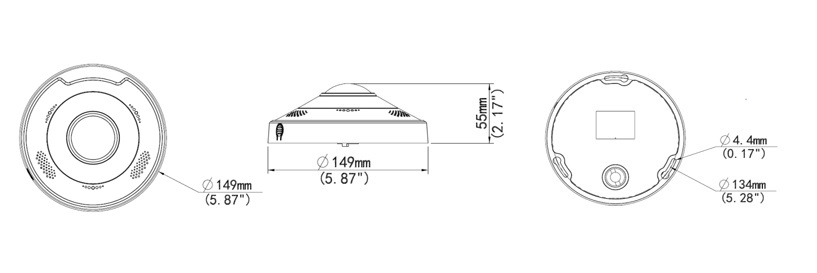

All dimensions are in millimetres (mm)

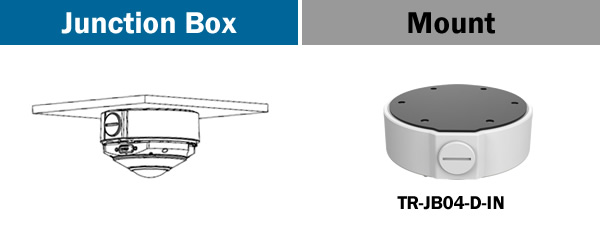

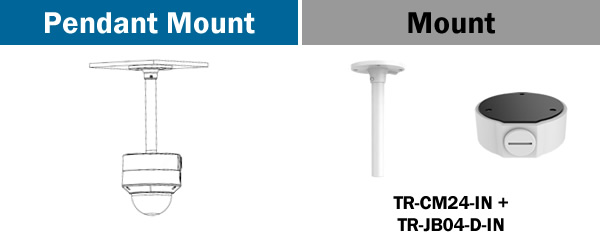

Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5kg mass dropped from 400 mm above the impacted surface.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Heat Map - Show hot spots of movement
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
