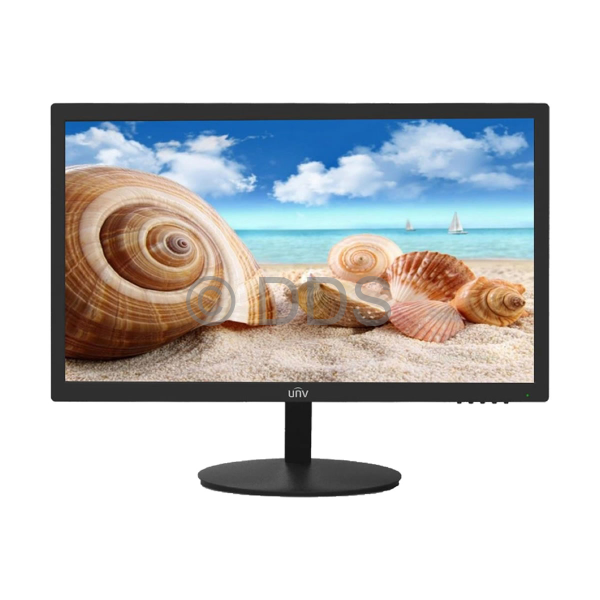

Uniview 22 Inch Full HD (1080P) CCTV Monitor
Uniview 22 Inch Full HD LED monitor, ideally suited to use to display HD CCTV (24/7 operation)
- Full HD LED Monitor (1920 x 1080)
- Wide viewing angles (178° horizontal and 178° vertical)
- Inputs: HDMI, VGA
- Widescreen (16:9) Aspect ratio
- Multi-language OSD (on-screen display)
- 7ms response time
- VESA 100 compatible
- Dimensions (with stand): 508.02mm x 392.87mm x 200mm
- Supplied with a HDMI cable
| Specifications | |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 21.5" |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.2482mm x 0.2482mm |
| Max. Resolution | 1920 x 1080 |
| Brightness | 250 cd/m2 |
| Contrast | 3000:1 |
| Response Time | 7ms |
| Colour | 16.7M |
| Viewing Angle | 170° (Horizontal) / 178° (Vertical) |
| Refresh Rate | 60Hz |
| Interface | |
| Input | VGA x1, HDMI x1 |
| OSD | |
| Multi-Language | 8 (English, France, Spanish, German, Russia, Korea, Japanese, Simplified Chinese ) |
| Mounting | |
| VESA | 100mm x 100mm |
| Wall-mounted Thread | 4-M4 Threaded hole |
| General | |
| Power Supply | DC 12V, 2A |
| Consumption | <22W (On), <0.5W (Standby) |
| Operating Temperature | 0°C ~ 40 °C |
| Operating Humidity | 20% ~ 85% (No Condensation) |
| Storage Temperature | -10°C ~ 50°C |
| Storage Humidity | 10% ~ 90% (No Condensation) |
| Dimension | 508.02mm x 392.87mm x 200mm (with stand) 508.02mm x 392.87mm x 40mm (without stand) |
| Weight | 2.3kg |
| Accessories | |
| Included | Power Adapter, Pedestal Stand, Quick Start Guide |

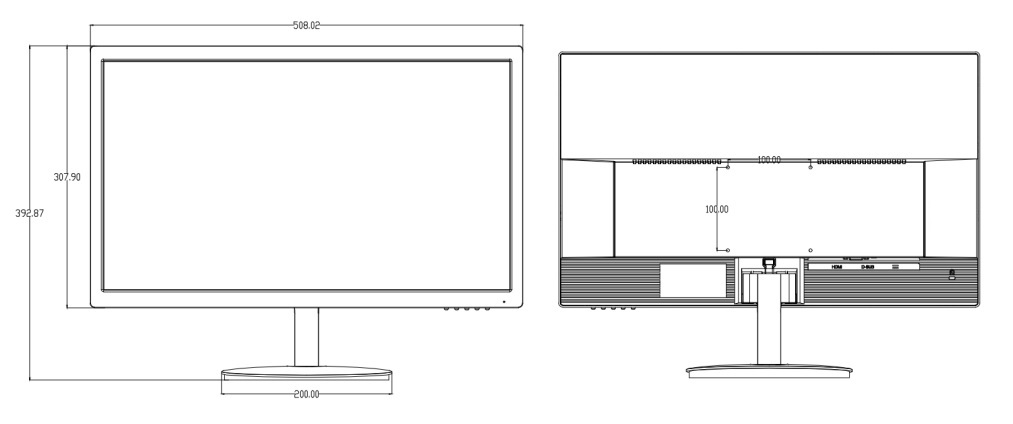

All dimensions are in millimetres (mm)
