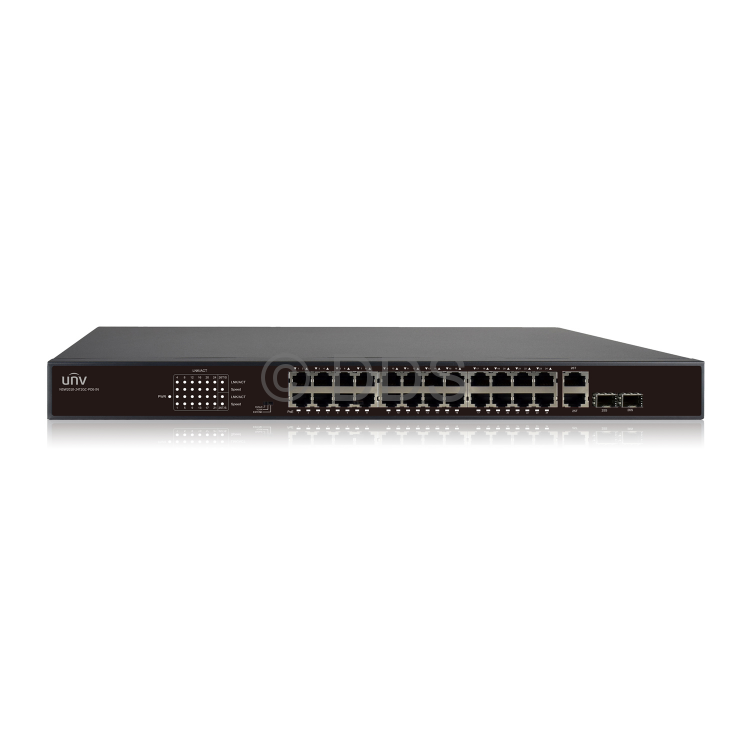

Uniview POE Ethernet Switch (24 Ports, 2 Uplinks)

Home/Uniview IP/Uniview POE Switches/UNV 100Mbps POE Switches/Uniview POE Ethernet Switch (24 Ports, 2 Uplinks)

5 of 9

Save
100%

Call us for a price

Order Code: NSW2010-24T2GC-POE-IN

Description

- 24x 100Mbps POE Ports + 2x 1000Mbps (gigabit) Combo Uplink Ports
- Total output power 370 watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 8.8Gbps, Forwarding Performance: 6.55Mbpps, MAC Address Table: 16K
- 48vDC POE Power

Technical Specifications
Ports	24 x 100Mbps POE ports + 2 x 1000Mbps (1Gbps) Combo Uplinks
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3z, IEEE802.3ab
Switching Capacity	8.8Gbps
Forwarding Performance	6.55Mpps
Packet Buffer	4Mbit
MAC Address Table	16K
POE	802.3at/af
Max. PoE Power	Max capacity: 370W Max capacity for single port: 30W
Cooling Fans	2
Working Temperature	0°C - 45°C
Indicator	PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps (1Gbps)
Working Mode	Default (Normal mode) : All ports can communicate with each other. VLAN (Secure mode): Downlink ports can communicate only with uplink ports. EXTEND (Surveillance mode): Transmission distance up to 250 meters.
Power Supply	AC: 100-240V, 50/60Hz
Weight	<4.2kg
Dimensions (W x D x H)	440mm x 207mm x 45mm
