Turret Dome Camera (2MP, Mic, WDR)
Save
100%
100%

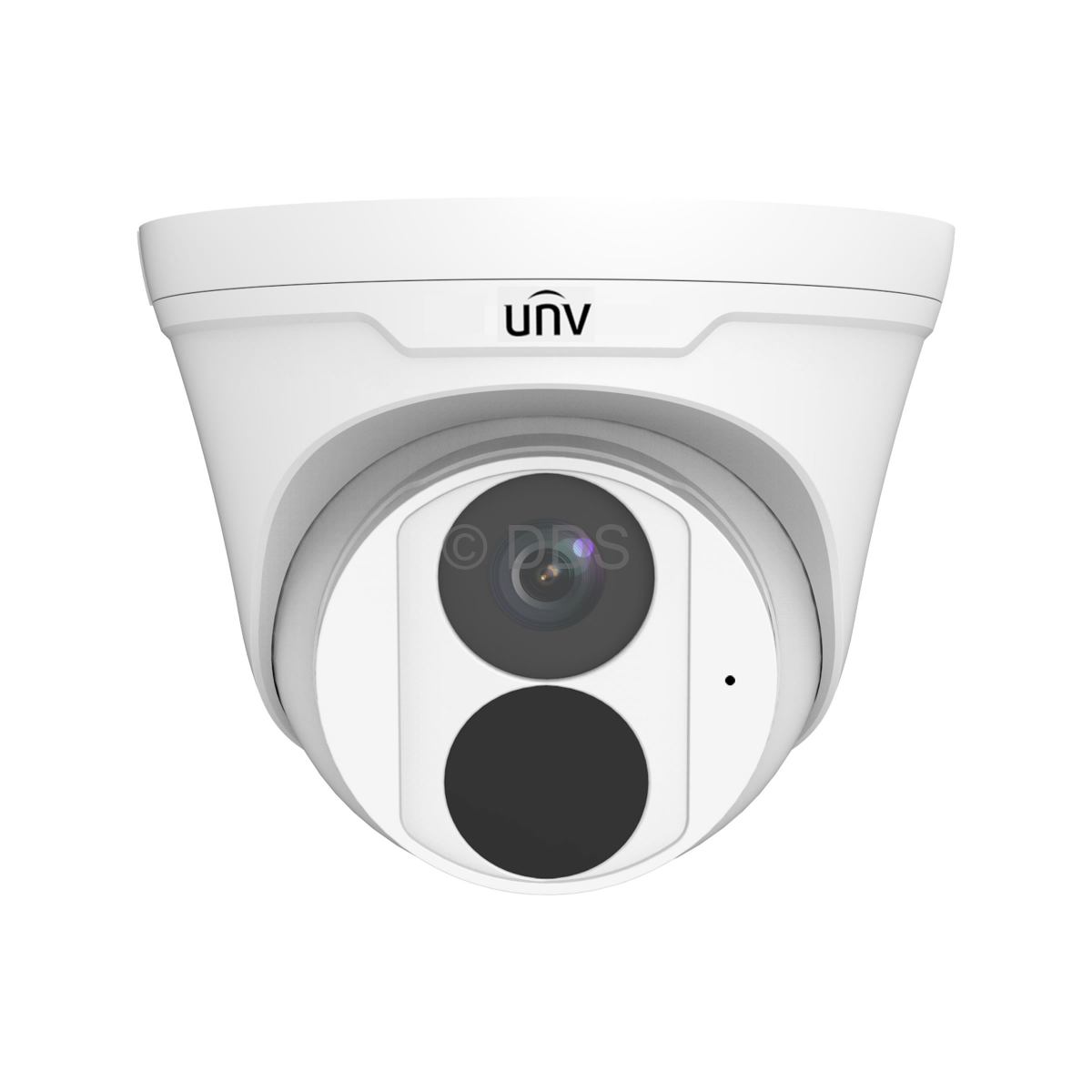

Part of the UNV EasyBasic range, this Uniview turret IP camera boasting an impressive 2 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supporting up to Ultra265 compression and 30m of IR range; this camera also features a built-in microphone and MicroSD card slot.
- Resolution: 2MP (1920 x 1080), POE
- Fixed 2.8mm Lens, Viewing Angle 112.9° (H)
- Smart IR, Up To 30m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Built-in Microphone
- Ultra Motion Detection
- MicroSD Card Slot (see Special Features)
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IP67 Rated
- 2kV Surge Protection
Camera
Image Sensor:
EasyBasic CMOS (1/2.7")
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/6~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120db
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
112.9°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 128GB
DORI
Detect:
42.0m
Observe:
16.8m
Recognise:
8.4m
Identify:
4.2m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.01Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
1920x1080@30fps
Sub Stream:
1280x720@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal / Plastic
Power Consumption:
Max 7W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
10% - 90% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
300g
Interface
Built-in Microphone:
Yes
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Alarm - Detect when the camera has been physically tampered with
