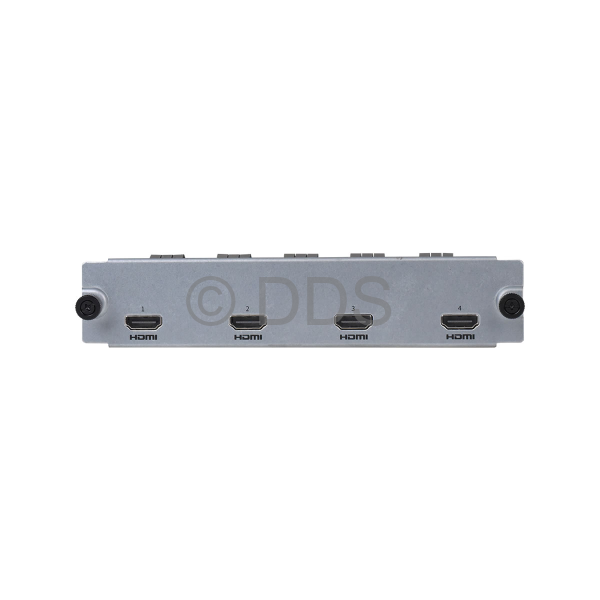

4ch HDMI Output Decoding Card

Home/Uniview IP/Uniview IP Recorders (NVR)/32-128 Channel IP NVRs/4ch HDMI Output Decoding Card

1 of 12

Call us for a price

Order Code: FB-HD04-B-NB

Description

Support 4CH HDMI
- HDMI at up to 4K(3840x2160) resolution
- All HDMI independent outputs provided
- Support H.265/H.264 video formats
- Up to 16 Megapixels resolution recording
- Compatible with NVR816 and NVR824 series

Specifications
HDMI Output	HDMI1 & HDMI2: 3840x2160 /60Hz, 3840x2160 /30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI3 & HDMI4: 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Decoding Capability	4 x 16MP@30, 5 x 12MP@30, 8 x 8MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64x 720P@30
Multi-Window	1/4/5/6/7/8/9/16
Working Temperature	-10°C ~ +55°C
Working Humidity	10%% ~ 90% (non-condensing)
