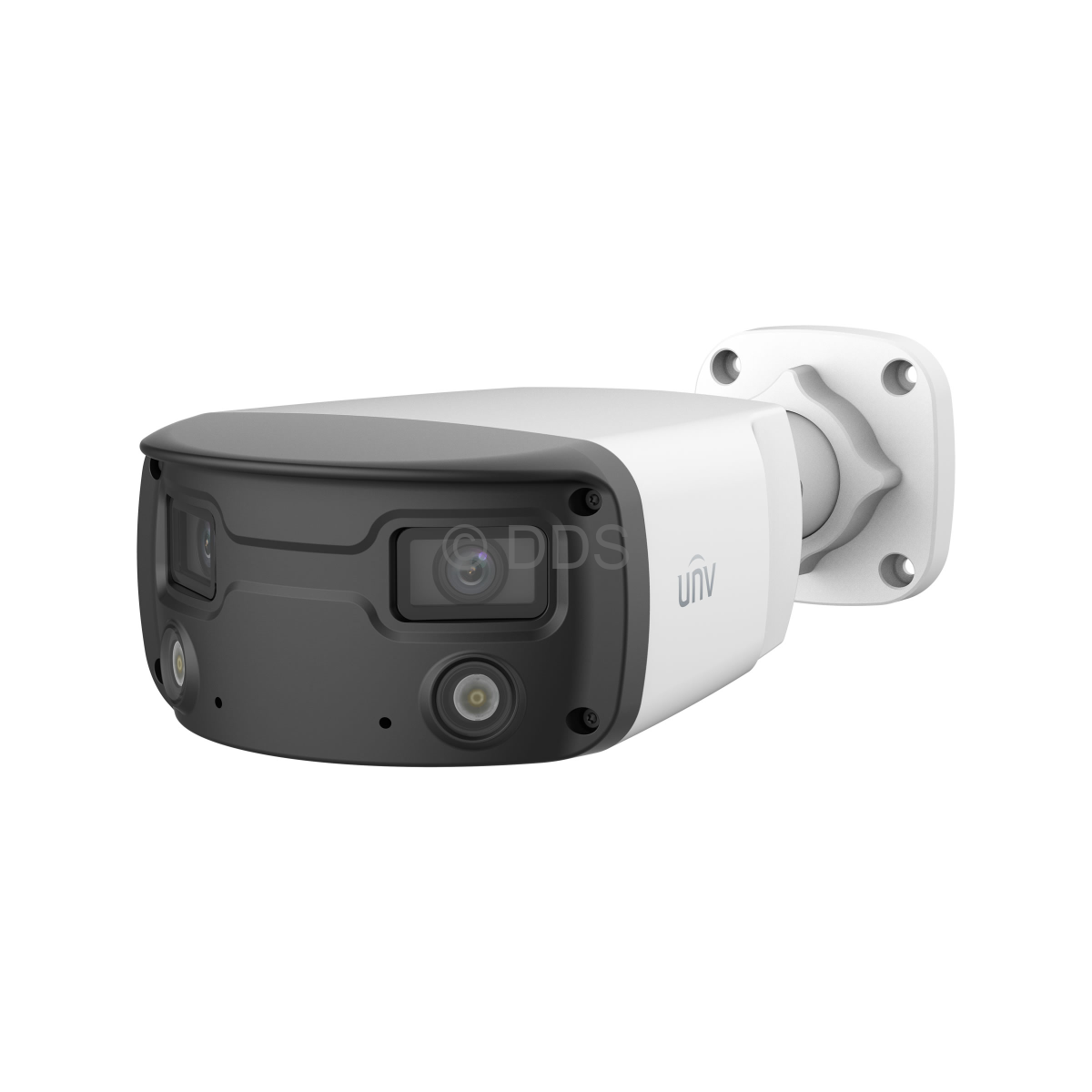

4K Dual Lens ColourHunter+ Camera (8MP, Two-Way Audio, IK10)
Save
100%
100%
Part of the Uniview ColourHunter+ series, this IP camera has dual 4MP cameras each with a 4mm fixed lens. Both images are stitched together to give an ultra-wide 180° field of view. This camera has the ColourHunter chipset, allowing for full colour at night. Supporting Ultra265 compression and 30m of White-Light range; this camera also features dual microphones and a speaker for two-way audio.
- Vandal Resistant, IK10 rated
- Resolution 8MP (5120 x 1440), POE

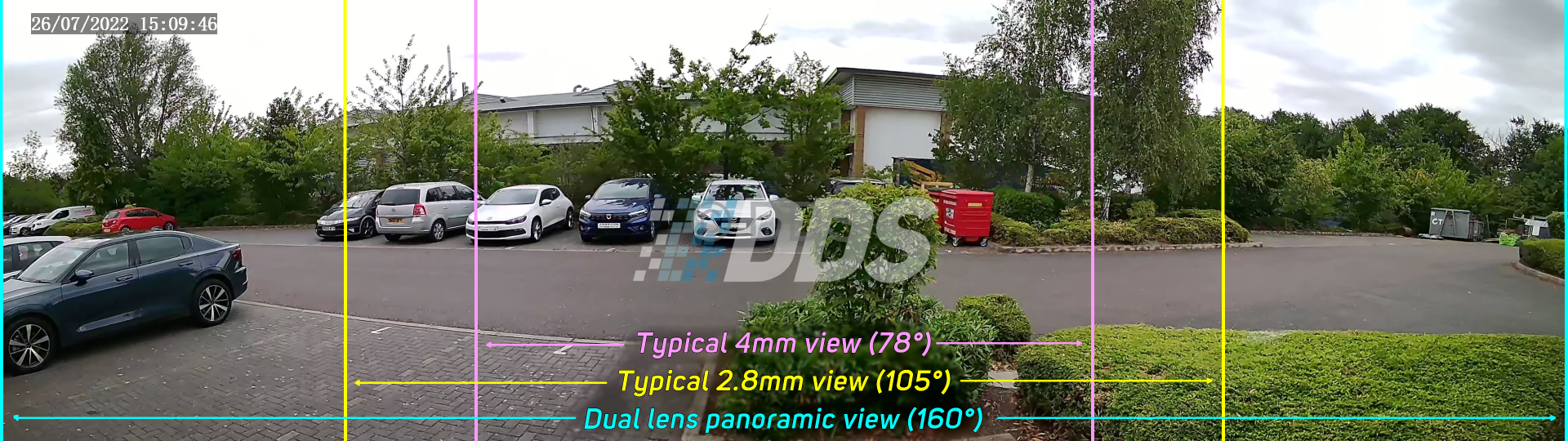

- Fixed 4mm Lens, Viewing Angle 180° ±10° (H)
- Up To 30m White Light Range
- Full Colour, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- MicroSD Card Slot (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
- 4kV Surge Protection
Camera
Image Sensor:
ColourHunter CMOS (1/2.7")
Resolution:
8MP (4K)
Effective Pixels (H x V):
5120 x 1440
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
130dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 4mm Lens (x2)
Field of View:
180° ±10°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
90.0m
Observe:
36.0m
Recognise:
18.0m
Identify:
9.0m
Day/Night
Minimum Illumination:
Colour 0.0005Lux
White Light Range:
25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
5120x1440@20fps
Sub Stream:
2560x720@20fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 13W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
960g
Interface
Built-in Microphone:
Yes (2x)
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
ASM (Auto Scene Match)
ASM is a feature which allows a camera to analyse the scene it's looking at, and adjust its image settings according to give the best possible picture. This feature requires WDR to be enabled.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
- Enter Area - Entering into a pre-defined virtual region
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
- Tamper Identification - Detect when the camera has been physically tampered with
