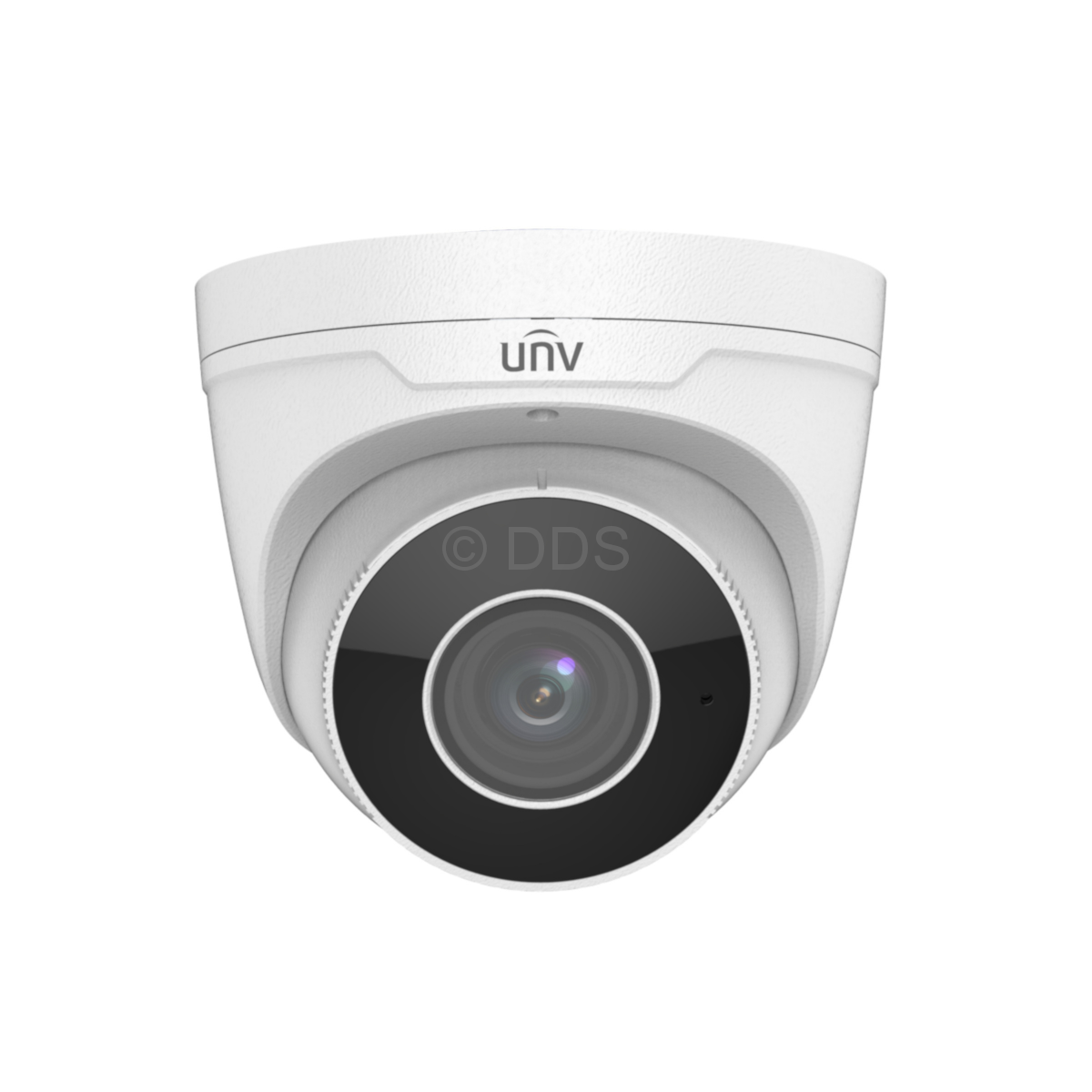

4K Eyeball Camera (8MP, Auto-Focus, Smart, Mic)
Save
100%
100%
Part of the UNV LightHunter range, this eyeball dome IP camera boasting an impressive 8 megapixel UHD recording resolution and a motorised 2.8-12mm auto-focusing lens. Supporting up to Ultra265 compression and 30m of IR range. This camera also has smart video-analytic features built-in.
- Resolution 8MP (3840 x 2160), POE
- Motorised 2.8-12mm Lens, Angles 114.8° ~ 47.3° (H)
- Smart IR, Up To 30m IR Range
- Built-in Microphone
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Face Detection (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -40°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
Camera
Image Sensor:
LightHunter CMOS (1/2")
Resolution:
8MP (4K)
Effective Pixels (H x V):
3840 x 2160
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/6~1/100000s
Signal-to-noise Ratio:
≥52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 2.8-12mm Lens
Field of View:
114.8° ~ 47.3
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
63-270m
Observe:
25.2-108m
Recognise:
12.6-54m
Identify:
6.3-27m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.001Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
3840x2160@20fps / 1920X1080@60FPS
Sub Stream:
1920x1080@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 8.16W
Operating Temperature:
-40°C ~ +60°C
Operating Humidity:
10% - 95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
820g
Interface
Built-in Microphone:
Yes
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Recognition - Face and audio detection
- Tamper Identification - Detect when the camera has been phyiscally tampered with
- Statistical Analysis - People counting
