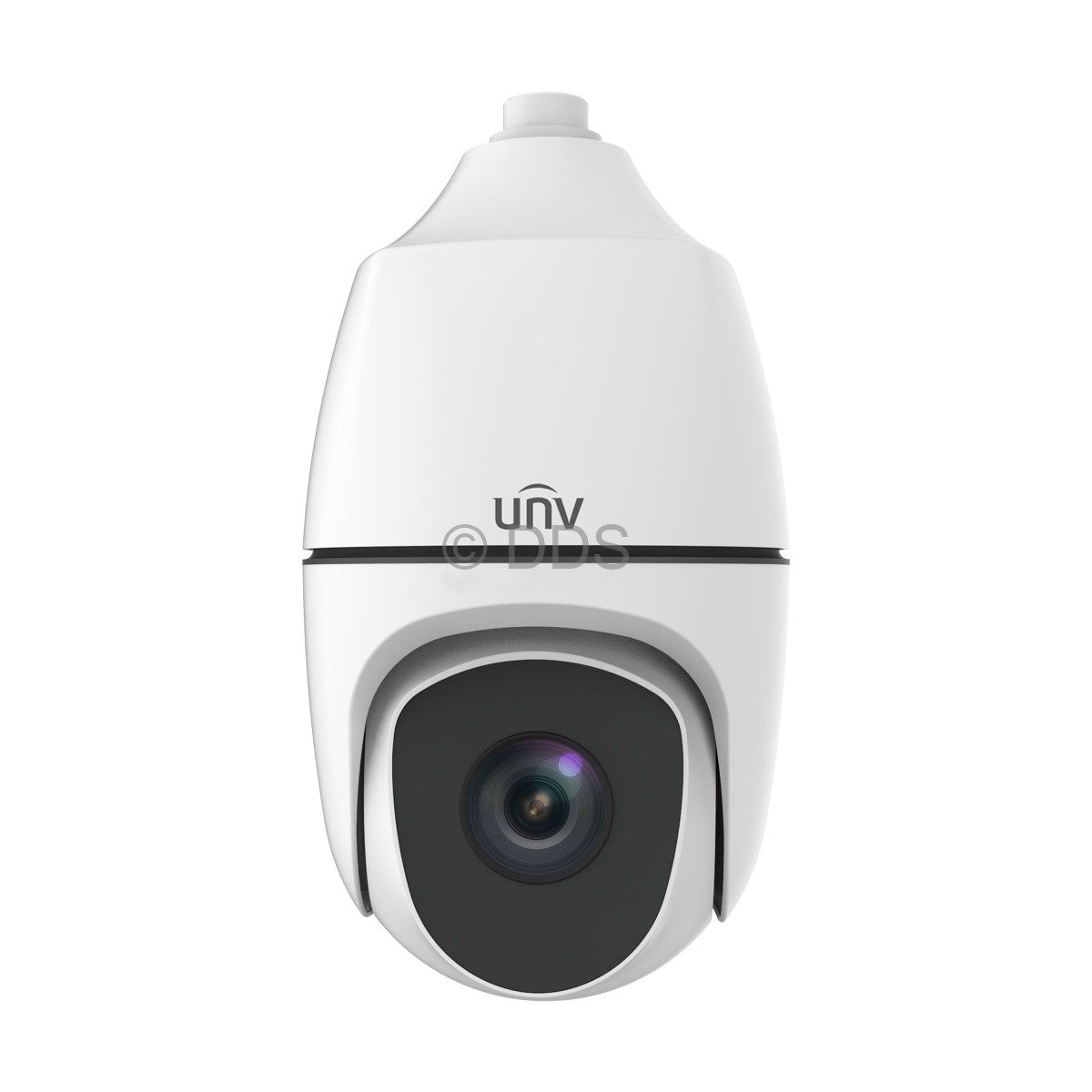

Auto-Tracking AI PTZ Camera (4MP, 40x Optical, LightHunter)
Save
100%
100%
Part of the UNV LightHunter range, this IP PTZ camera boasts an impressive 4 megapixel HD recording resolution and an auto-focusing 40x optical zoom lens. This camera has the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting Ultra265 compression and up to 250m of IR range.
- Resolution 4MP (2688 x 1520)
- Motorised 5.7-228mm Lens, Angles 59.5° ~ 2.2° (H)
- 40x Optical Zoom, 16x Digital Zoom
- Smart IR, Up To 250m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra 265
- Alarm I/O, 7 Input and 2 Output
- ONVIF Compliance (Profile G, S and T)
- Temperature Range -40°C to 70°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- 6kV surge protection
Camera
Image Sensor:
LightHunter CMOS (1/1.8")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Auto/Manual, F1.3 ~ F4.6
Back Light Compensation:
Supported
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 5.7-228mm, 40x Optical and 16x Digital
Field of View:
59.5°~ 2.2°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
Pan & Tilt
Pan Range:
360° (endless)
Pan Speed:
0.1°/s ~ 180°/s (Preset speed: 300°/s)
Tilt Range:
-15° ~ +90° (auto reverse)
Tilt Speed:
0.1° ~ 180° (Preset speed: 240°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol, Recorded patrol
DORI
Detect:
107.2-3330.6m
Observe:
42.9-1332.2
Recognise:
21.4-666.1m
Identify:
10.7-333.1m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.0005Lux, 0Lux with IR on
IR Range:
245-250m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
N/A
Main Stream:
2688x1520@30fps
Sub Stream:
720x576@30fps
General
Power:
AC 24V ±25% / DC 24V±25%
Housing:
Metal
Power Consumption:
Max 61W
Operating Temperature:
-40°C ~ +70°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
9.5kg
Interface
Video Outputs:
BNC (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x7), Alarm output (x2)
Reset Button:
Yes
PTZ Control:
Onvif / RS-485

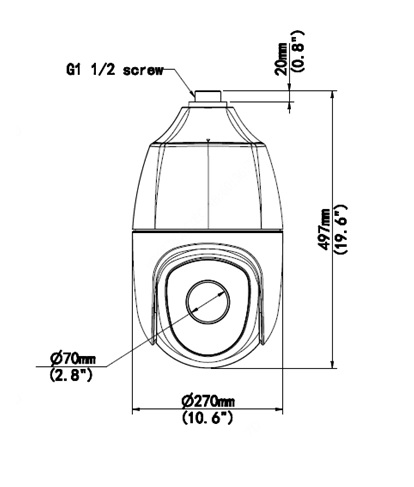

All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
AI (Artificial Intelligence)
AI allows the camera to work out if the movement detected was caused by a human, vehicle, or non-motor vehicle. The technology, known as SIP (Smart Intrusion Prevention), allows the camera to filter out 97% of false triggers from light, animals, and nature. This feature requires an AI-compatible NVR.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Auto Tracking - Tracking a specific target until it is out of range
- Audio Detection - Detect a sudden increase or decrease in sound
- Enter Area - Entering into a pre-defined virtual region
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Counting - People flow counting and crowd density monitoring
- Tamper Identification - Detect when the camera has been physically tampered with
