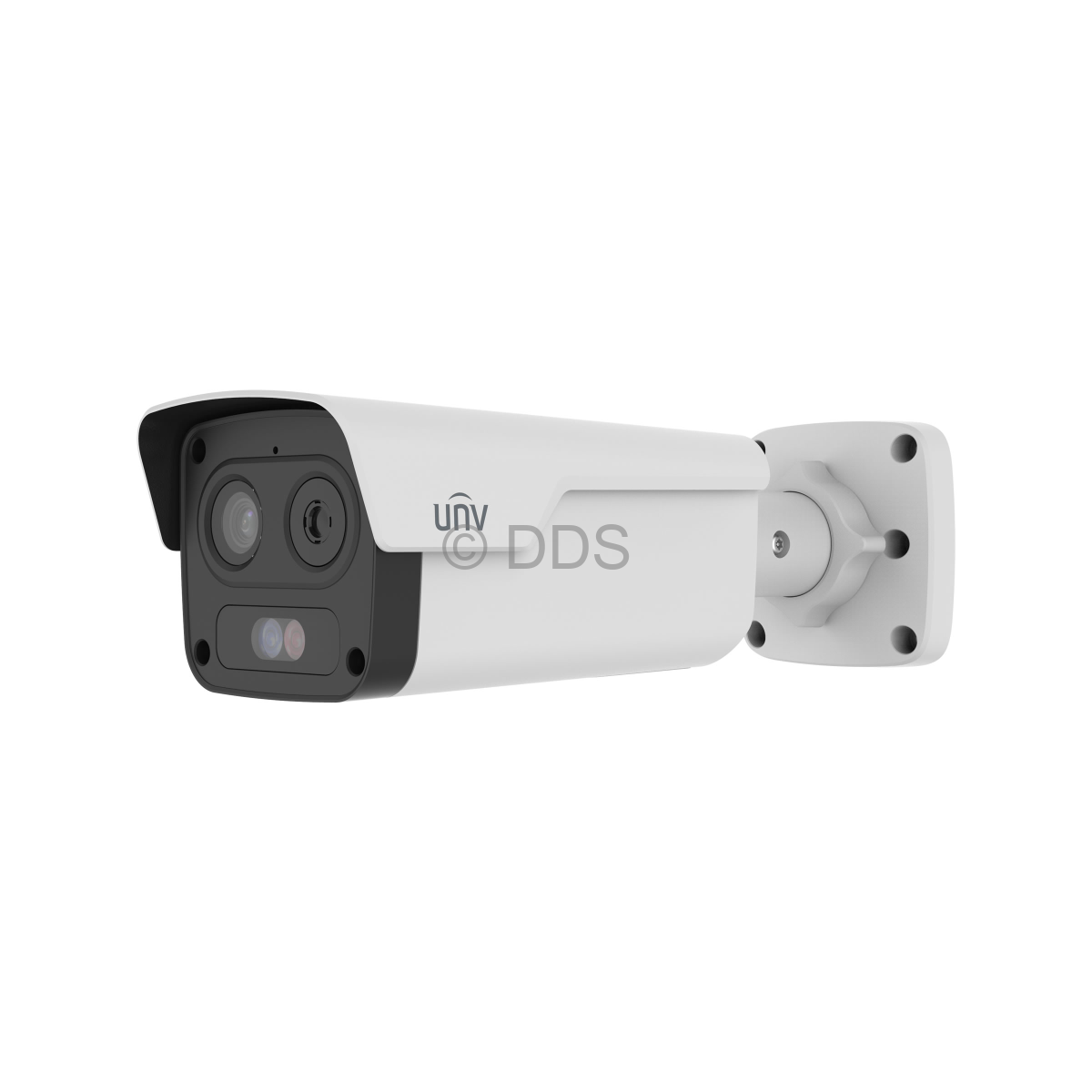

4MP Dual-Spectrum Thermal Bullet Camera (Thermal & Optical)
Save
100%
100%
Part of the Uniview Thermal range, this dual-spectrum (thermal & optical) bullet provides dual video with a single IP address. It can reliably detect fires, smoke and abnormal temperatures with cold/hot spot tracking. In addition, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.
- Resolution: Optical 4MP (2688 x 1520) / Thermal 960P (1280 x 960)
- Lens: Optical Fixed 6mm Lens / Thermal Fixed 7mm Lens
- Smart IR, Up To 50m IR Range
- Built-in Microphone and Speaker
- Up To 20 Palettes
- Support Picture-in-picture Mode, Real-time Contrast Live
- Support Audio and Light Alarm, With Red and Blue Warning Lights Built-in
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Selectable Temperature Detection Range -20°C to 150°C OR 100°C to 550°C
- Working Temperature Range -40°C to 70°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
- 6kV Surge Protection
Camera
Image Sensor:
LightHunter CMOS (1/2.8")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Auto
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Optical: Fixed 6mm Lens | Thermal: Fixed 7mm Lens
Field of View:
Optical: 53.8° | Thermal: 25°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB
DORI
Detect:
135.0m
Observe:
54.0m
Recognise:
27.0m
Identify:
13.5m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.003Lux, 0Lux with IR on
IR Range:
45-50m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
TCP/IP,ICMP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
Optical: 2688x1520@30fps | Thermal: 1280x960@30fps
Sub Stream:
1280x720@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Power Consumption:
Max 12W
Operating Temperature:
-40°C ~ +70°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP67
Weight:
0.95kg
Interface
Built-in Microphone:
Yes
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x2)

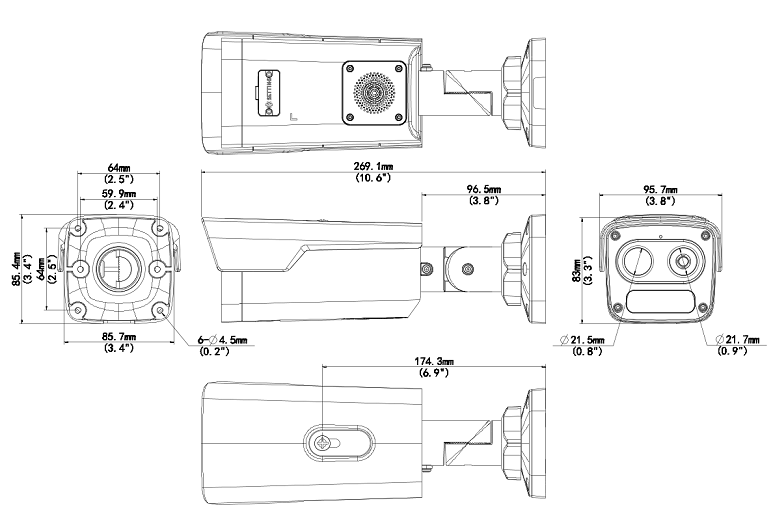

All dimensions are in millimetres (mm)
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Enter Area - Entering into a pre-defined virtual region
- Fire Detection - Detects point of fire (up to 10 fire points can be detected at once) [Requires PRO NVR]
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Smoking Detection - Detects smoke in an environment [Requires PRO NVR]
- Tamper Identification - Detect when the camera has been physically tampered with
- Temperature Detection - Measure and detect changes in temperature, with hot/cold point tracking (detects between -20°C to +150°C, or +100°C to 550°C with ±8°C accuracy) [Requires PRO NVR]
