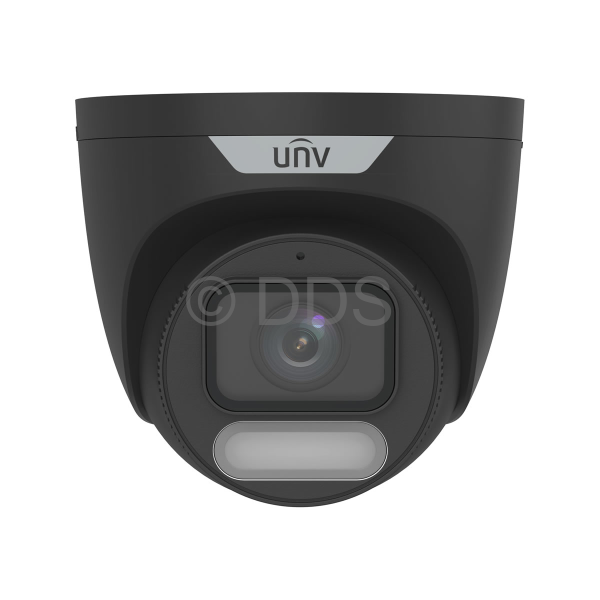

Black OwlView Turret Camera (4MP, WhiteLight, Mic)
Save
100%
100%
Part of the UNV Owlview range, this Uniview turret IP camera has the latest Wise-ISP algorithm, allowing for 24/7 full colour with better performance than previous full-colour models, even without using the built-in white light. It combines the large 1.18" sensor with a F1.0 aperture, and using Uniview's self-developed large model engine allows the image to be brighter yet more true to life, with advanced smear control and dynamic noise reduction. It also boasts an impressive 4 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supporting Ultra265 compression, and up to 30m of White Light. Alongside this, it also features a built-in microphone for recording audio.
- Resolution: 4MP (2688 x 1520), POE
- Fixed 2.8mm Lens, Viewing Angle 110.4° (H)
- Up to 30m White Light Range
- Ultra Motion Detection, For Advanced Motion Detection
- MicroSD Card Slot (see Special Features)
- Day/Night, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Mode
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- IP67 Rated
- 4kV Surge Protection
Camera
Image Sensor:
ColourHunter CMOS (1/1.8")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
110.4°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
43.4m
Observe:
17.4m
Recognise:
8.7m
Identify:
4.3m
Day/Night
Minimum Illumination:
Colour 0.0003Lux
White Light Range:
25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2688x1520@25fps
Sub Stream:
1280x720@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal / Plastic
Power Consumption:
Max 2.8W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
480g
Interface
Built-in Microphone:
Yes
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
Tip: Watch in full screen mode
