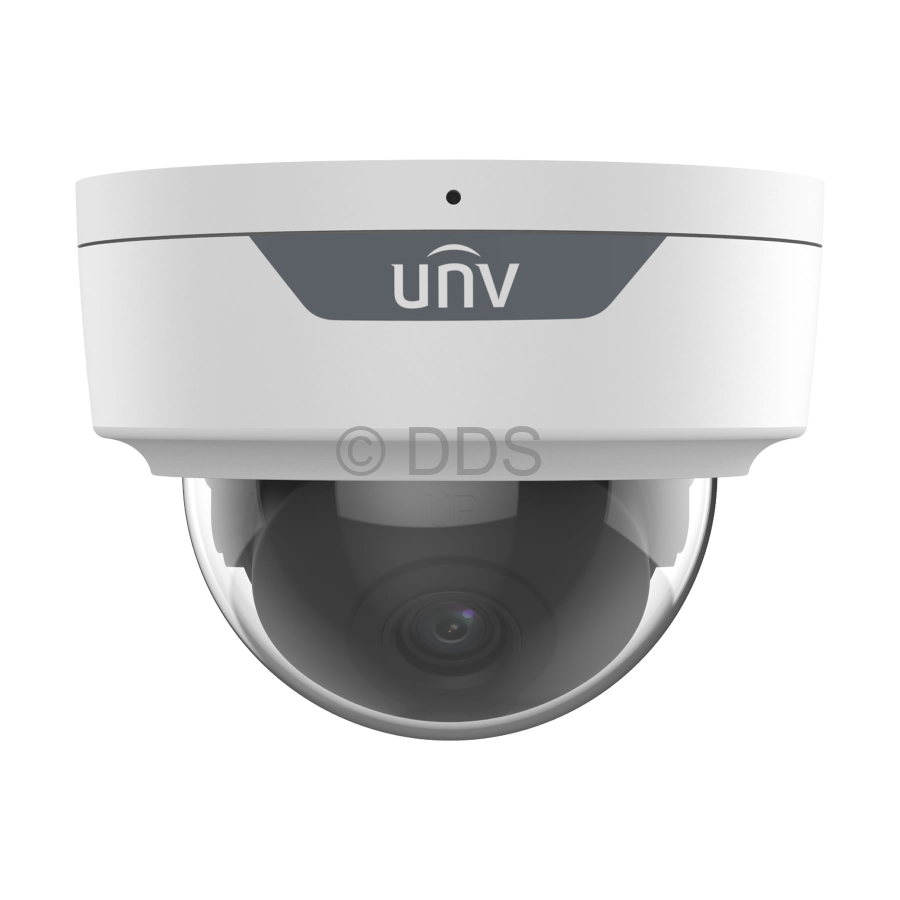

LightHunter Mini Dome Camera (5MP, AI, IK10)
Save
100%
100%
Part of the UNV LightHunter range, this mini dome IP camera boasting an impressive 5 megapixel HD recording resolution and a 2.8mm fixed-focal lens. This camera has the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting Ultra265 compression and 40m of IR range; this camera also features a built-in microphone and MicroSD card slot. This camera also has smart video-analytic features built-in, with deep-learning AI. This allows it to accurately detect humans while ignoring other movements such as trees or animals.
- Vandal Resistant (IK10 Rating)
- Resolution 5MP (2880 x 1620), POE
- Fixed 2.8mm Lens, Viewing Angle 110.71°(H)
- Smart IR, Up To 40m IR Range
- Built-in Microphone
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- Metal Housing, IK10 and IP67 Rated
- 4kV Surge Protection
Camera
Image Sensor:
LightHunter CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
130dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
110.71°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
DORI
Detect:
63.0m
Observe:
25.2m
Recognise:
12.6m
Identify:
6.3m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.002Lux, 0Lux with IR on
IR Range:
35-40m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@30fps
Sub Stream:
720x576@30fps
General
Power:
12V DC (+/- 25%), PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 6.5W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
420g
Interface
Built-in Microphone:
Yes
Audio I/O:
Microphone input (x1), Audio output (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)

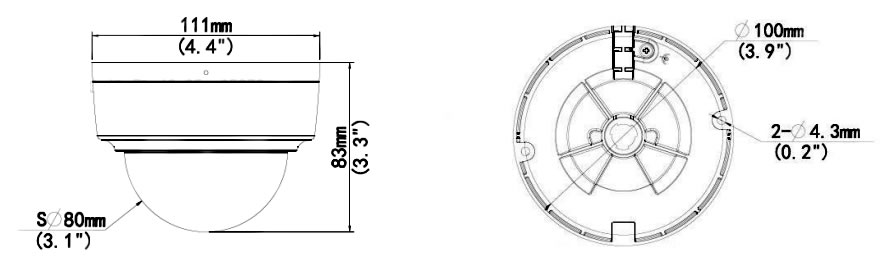

All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
AI (Artificial Intelligence)
AI allows the camera to work out if the movement detected was caused by a human, vehicle, or non-motor vehicle. The technology, known as SIP (Smart Intrusion Prevention), allows the camera to filter out 97% of false triggers from light, animals, and nature. This feature requires an AI-compatible NVR.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
ASM (Auto Scene Match)
ASM is a feature which allows a camera to analyse the scene it's looking at, and adjust its image settings according to give the best possible picture. This feature requires WDR to be enabled.
Colour Retrieval
Colour retrieval is a feature which allows the NVR to search for a human or vehicle depending on a colour (such as colour of shirt, trousers, bodywork of vehicle). This features requires a compatible NVR and camera.
LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
- Enter Area - Entering into a pre-defined virtual region
- Face Detection - Detect a human face
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
- Tamper Identification - Detect when the camera has been physically tampered with
