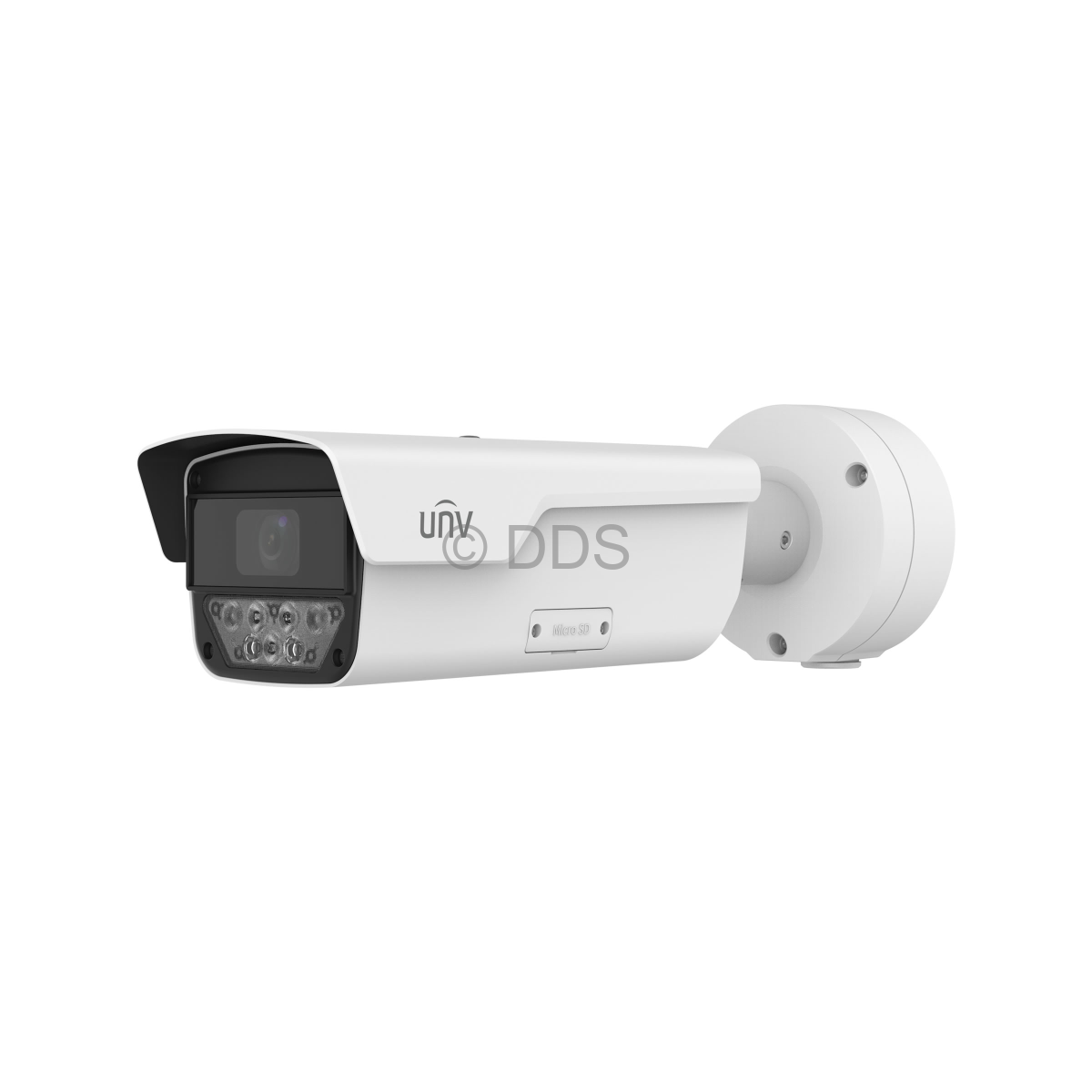

Licence Plate IP Camera (4MP, ANPR, Alarms)
Save
100%
100%
Part of the UNV professional range, this ANPR (Automatic Number Plate Recognition) IP camera boasting an impressive 4 megapixel HD recording resolution and a motorised 8-32mm auto-focusing lens. This camera has the LightHunter chipset, allowing for incredible imagery at night. Supporting H.265 compression and 50m of IR range.
- Vehicle Detection & Number Plate Recognition (see Special Features)
- Resolution 4MP (2688 x 1520), POE
- Motorised 8-32mm Lens
- Smart IR, Up To 50m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Boolean 2 In/1 Out, RS-485
- MicroSD Card Slot (see Special Features)
- WDR, OSD, Triple Streams, ONVIF
- Supports H.264, H.265
- Temperature Range -40°C to 60°C
- Wide voltage range of ±25%
- IP67
Camera
Image Sensor:
LightHunter CMOS (1/2.8")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/30~1/100000s
Signal-to-noise Ratio:
≥52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 8-32mm Lens
Scanning:
Progressive Scan
Onboard Recording:
MicroSD card up to 128GB
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.001Lux, 0Lux with IR on
IR Range:
45-50m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S)
POE:
Yes
Main Stream:
2688x1520@30fps
Sub Stream:
1280x720@30fps
General
Power:
12V DC (+/- 25%) / PoE (IEEE802.3at)
Housing:
Metal
Power Consumption:
Max ≤20W
Operating Temperature:
-40°C ~ +60°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
2.1kg
Interface
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Boolean input (x2), Boolean output (x1)
All dimensions are in millimetres (mm)
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.
LPR (License Plate Recognition)
LPR is the ability to automatically analyse video to detect vehicles and number plates. This camera has the capability to do the following:
- Vehicle detection and recognition
- Trigger mode: Video detection, Inductive loop detection, video-loop detection
- Support for number plate cutout, overview picture snapshot and video recording
- Built-in database to whitelist/blacklist vehicles, and to control barriers
