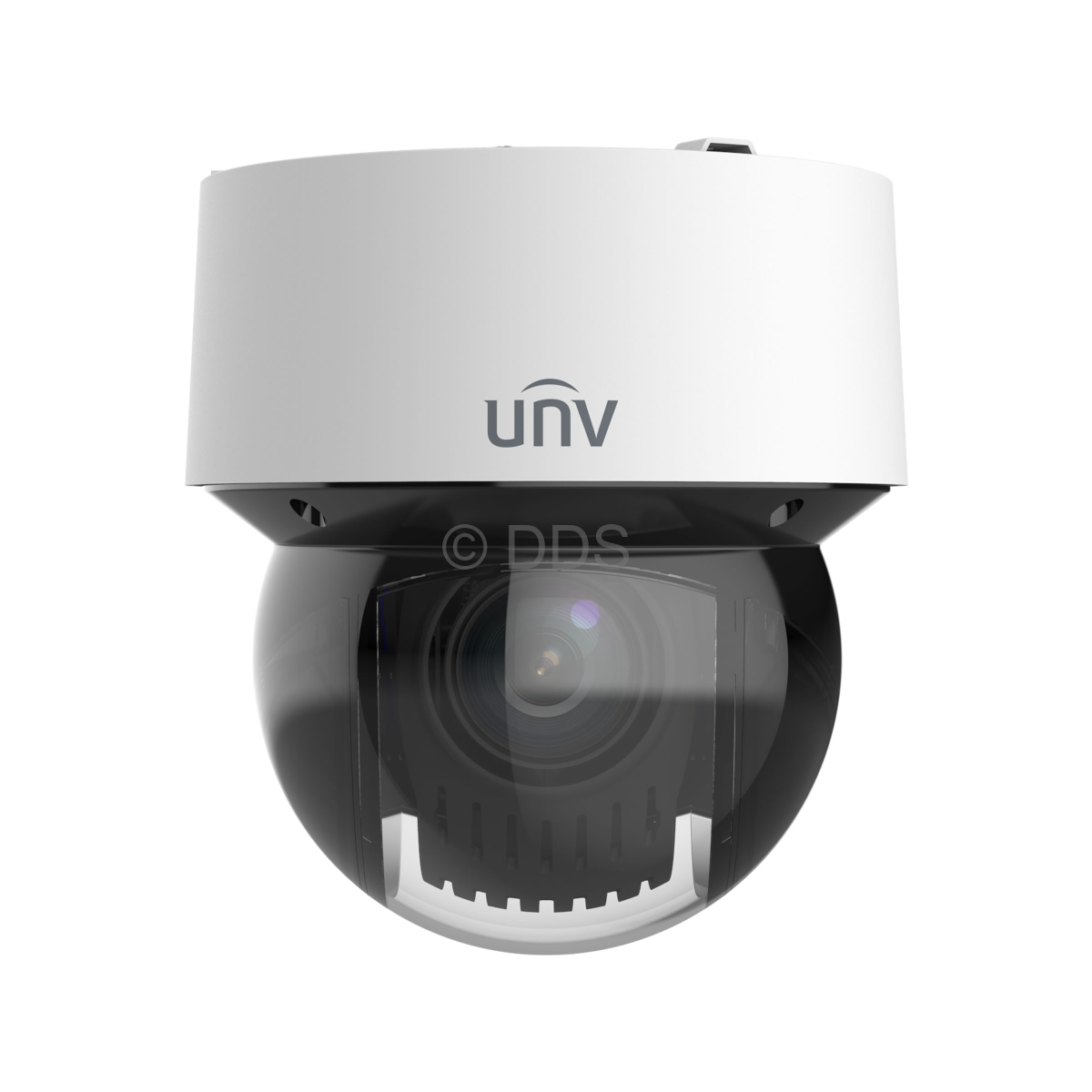

Auto-Tracking IP PTZ Camera (16x Optical, LightHunter, WDR)
Save
100%
100%
Part of the UNV LightHunter range, this vandal resistant dome IP PTZ camera boasting an impressive 4 megapixel HD recording resolution and an auto-focusing 16x optical zoom lens. Supporting Ultra265 compression and up to 100m of IR range.
- Vandal Resistant (IK10 Rating)
- Resolution 4MP (2688 x 1520), POE
- Motorised 5.5-88mm Lens, Angles 50.85° ~ 3.47° (H)
- 16x Optical Zoom, 16x Digital Zoom
- Smart IR, Up To 100m IR Range
- Day/Night, IR Cut Filter, 2D/3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra 265
- Alarm I/O, 2 Input and 1 Output
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -40°C to 65°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- 6kV surge protection
Camera
Image Sensor:
LightHunter CMOS (1/2.9")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Auto/Manual, F1.78 ~ F3.73
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 5.5-88mm, 16x Optical and 16x Digital
Field of View:
60.2°~ 3°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
Pan & Tilt
Pan Range:
360° (endless)
Pan Speed:
0.1°/s ~ 240°/s (Preset speed: 300°/s)
Tilt Range:
-05° ~ +90° (auto reverse)
Tilt Speed:
0.1° ~ 120°/s (Preset speed: 240°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol, Recorded patrol
DORI
Detect:
127.6-2048.4m
Observe:
51.0-819.4m
Recognise:
25.5-409.7m
Identify:
12.8-204.8m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.005Lux, 0Lux with IR on
IR Range:
95-100m
IR Control:
CDS Auto
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes (30W POE injector required)
Main Stream:
2688x1520@30fps
Sub Stream:
720x576@30fps
General
Power:
DC12V(±25%) / PoE+ (IEEE 802.3at)
Housing:
Metal
Power Consumption:
Max 23W
Operating Temperature:
-40°C ~ +65°C
Operating Humidity:
10% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
2.3kg
Interface
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x1)

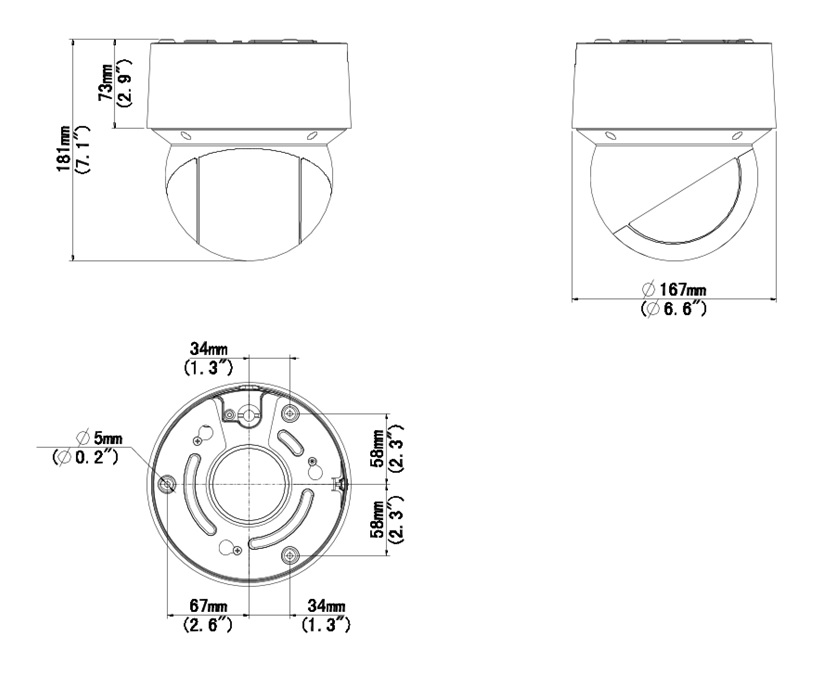

All dimensions are in millimetres (mm)
This Camera Has The Following Special Features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Auto Tracking - Tracking a specific target until it is out of range
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- Tamper Identification - Detect when the camera has been physically tampered with
