Black 5MP Tri-Guard Mini PTZ (5x Optical, LightHunter, Auto-Tracking)
Save
100%
100%
Part of the UNV Tri-Guard range, this mini IP PTZ camera has 5MP resolution with an auto-focusing 5x optical zoom lens. Supporting Ultra265 compression, up to 50m of IR range and up to 15m of White Light. It features active deterrence by using strobing light, white light and pre-recorded messages. When the white light illuminates the area, the camera will go into colour mode to provide a clearer image, thanks to the LightHunter chipset; after the deterrence event has finished, the camera will return to black and white.
Alongside this, it features a built-in speaker and microphone allowing for 2-way audio. It can also auto-track a person; using human body detection (this requires the camera to be in colour & light at night), to reduce false triggers from other moving objects or animals. Click on the Product Video tab to see the PTZ in action.
- Active Deterrence
- Red/blue strobing light
- Up to 15m White Light range
- Play pre-recorded messages
- Two-way audio (built-in microphone and speaker)
- Resolution 5MP (2880 x 1620), POE
- Motorised 2.7-13.5mm Lens, Angles 30.6° ~ 106.9° (H)
- Smart IR, Up To 50m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Face Detection (see Features)
- ONVIF Compliance (Profile G, S and T)
- Temperature Range -20°C to 60°C
- Wide voltage range of ±25%
- IP66 Rated
- 2kV surge protection
- Wall bracket included
Camera
Image Sensor:
LightHunter CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Auto
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 2.7-13.5mm, 5x Optical
Field of View:
106.9°~ 30.6°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB
Pan & Tilt
Pan Range:
0°~345°
Pan Speed:
1°/s ~ 50°/s (Preset speed: 50°/s)
Tilt Range:
-10 ~ +100°
Tilt Speed:
1° ~ 40°/s (Preset speed: 40°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol
DORI
Detect:
70.9-247.5m
Observe:
28.4-99m
Recognise:
14.2-49.5m
Identify:
7.1-24.8m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.005Lux, 0Lux with IR on
IR Range:
45-50m
IR Control:
CDS Auto
White Light Range:
12-15m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes (30W POE injector required)
Main Stream:
2880x1620@30fps
Sub Stream:
1280x720@30fps
General
Power:
12V DC (+/- 25%) / PoE (IEEE802.3 at)
Housing:
Metal
Power Consumption:
Max 18W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC / UL
Weight:
1.32kg
Interface
Built-in Microphone:
Yes
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)
Reset Button:
Yes
PTZ Control:
Onvif

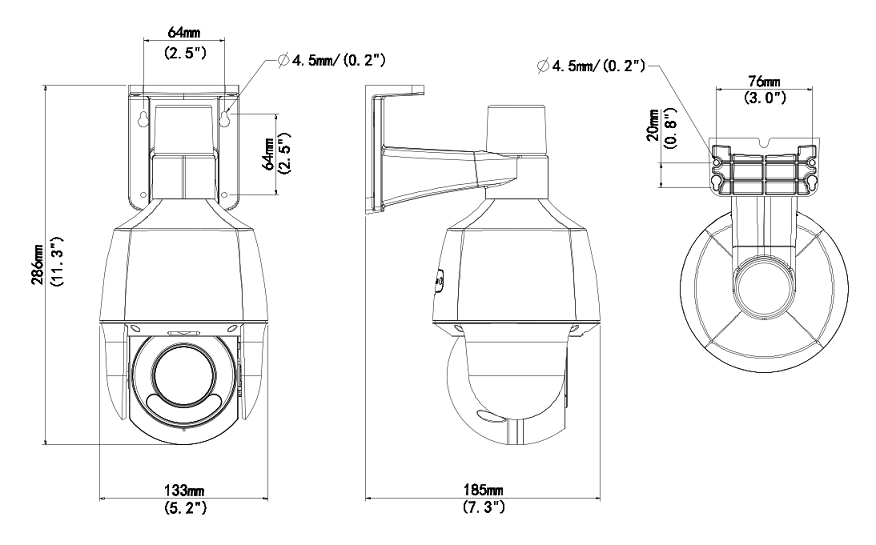

All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
Active Deterrence
This PTZ camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.
AI (Artificial Intelligence)
AI allows the camera to work out if the movement detected was caused by a human, vehicle, or non-motor vehicle. The technology, known as SIP (Smart Intrusion Prevention), allows the camera to filter out 97% of false triggers from light, animals, and nature. This feature requires an AI-compatible NVR.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
LightHunter
LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Auto Tracking - Tracking a specific target until it is out of range
- Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
- Enter Area - Entering into a pre-defined virtual region
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
- Tamper Identification - Detect when the camera has been physically tampered with
