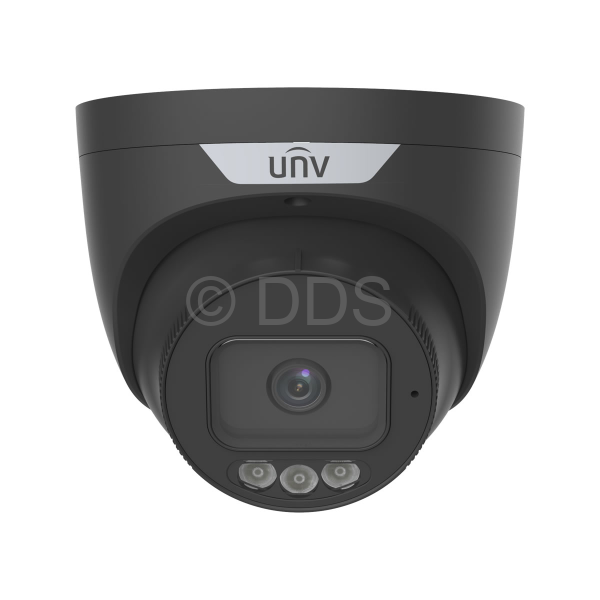

Black Tri-Guard 2.0 Turret Camera (5MP, AI, Mic, WDR)
Save
100%
100%
Part of the Uniview Tri-Guard 2.0 series, this turret IP dome camera boasts an impressive 5 megapixel recording resolution with a 2.8mm fixed-focal lens. This camera has the ColourHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting Ultra265 compression, up to 30m of IR range and up to 30m of White Light; as well as red and blue warning lights. This camera also has smart video-analytic features built-in, with deep-learning AI. This allows it to accurately detect humans while ignoring other movements such as trees or animals.
- Active Deterrence
- Up to 30m White Light Range
- Play Pre-Recorded Messages
- Two-Way Audio (Built-in Microphone and Speaker)
- Resolution 5MP (2880 x 1620), POE
- Fixed 2.8mm Lens, Viewing Angle 109° (H)
- Smart IR, Up To 30m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67
- 4kV Surge Protection
Camera
Image Sensor:
ColourHunter CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
130dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
109°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB
DORI
Detect:
63.0m
Observe:
25.2m
Recognise:
12.6m
Identify:
6.3m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.001Lux, 0Lux with IR on
IR Range:
25-30m
IR Control:
CDS Auto
White Light Range:
25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes
Main Stream:
2880x1620@25fps
Sub Stream:
1280x720@30fps
General
Power:
DC 12V±25% / PoE (IEEE 802.3af)
Housing:
Metal
Power Consumption:
Max 10W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
690g
Interface
Built-in Microphone:
Yes
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)
Reset Button:
Yes
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:

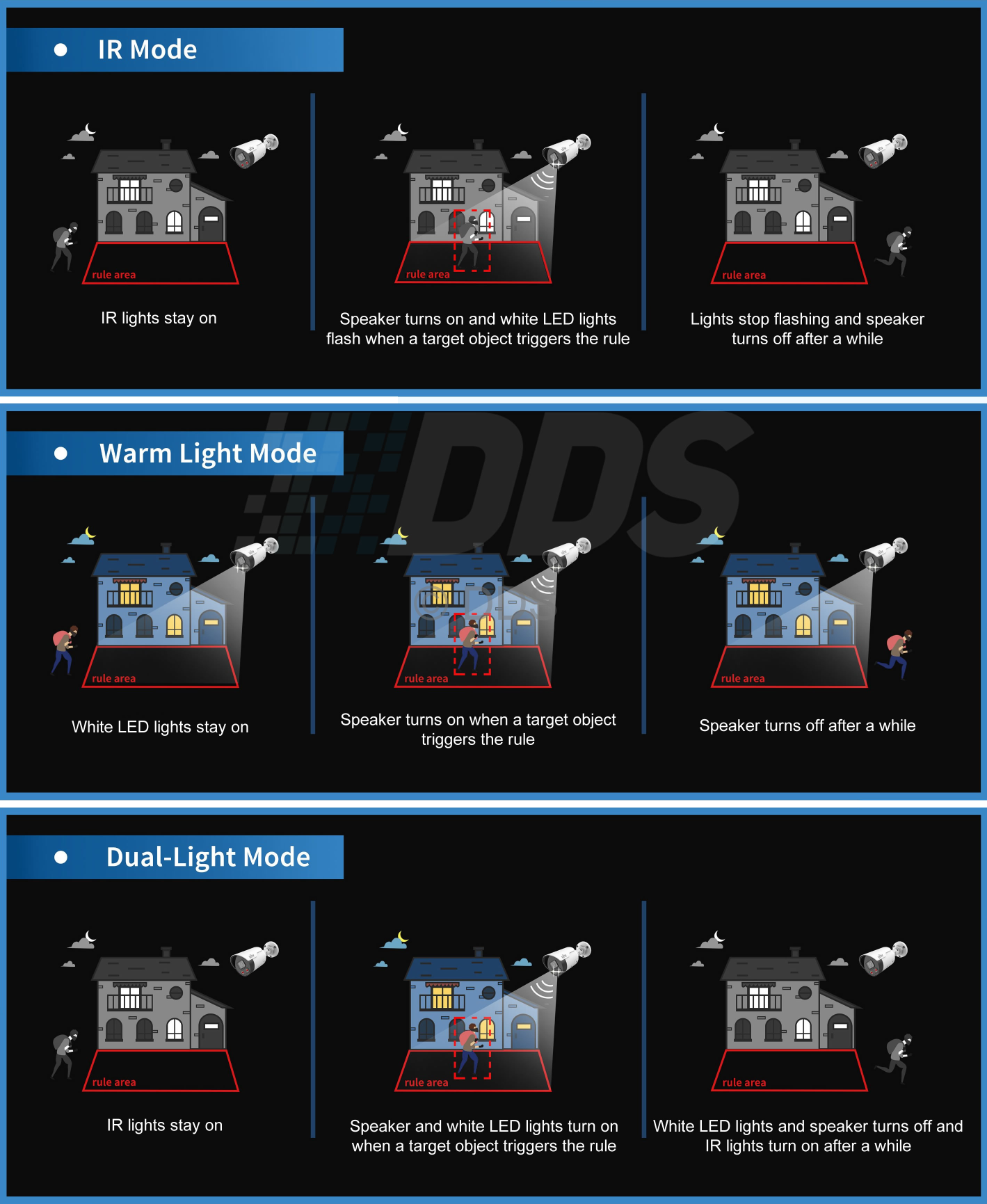

Active Deterrence
This camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
ASM (Auto Scene Match)
ASM is a feature which allows a camera to analyse the scene it's looking at, and adjust its image settings according to give the best possible picture. This feature requires WDR to be enabled.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
- Enter Area - Entering into a pre-defined virtual region
- Face Detection - Detect a human face
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Motion Detection - Movement within a pre-defined virtual region
- People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
- Tamper Identification - Detect when the camera has been physically tampered with
