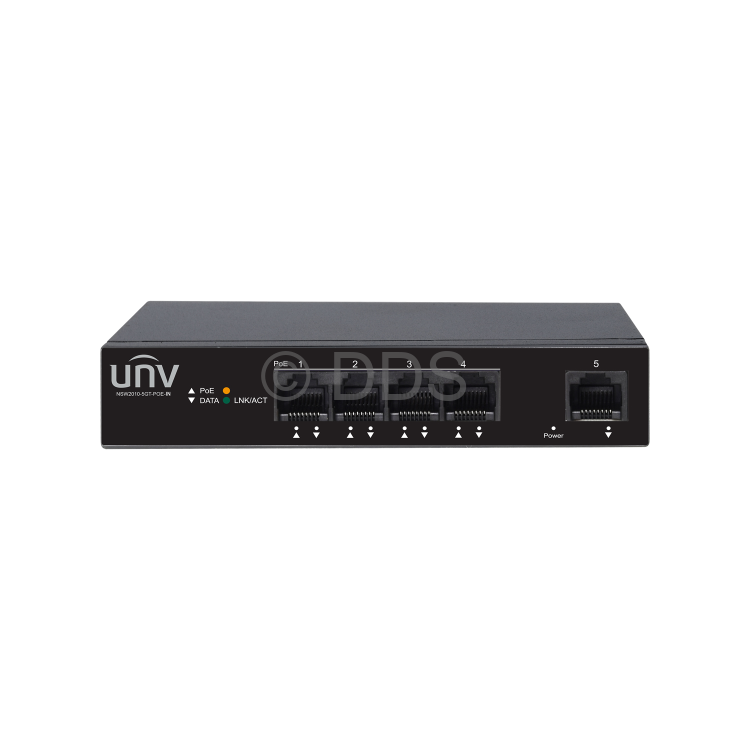

Uniview Gigabit POE Ethernet Switch (4 Ports, 1 Uplink)

Save
100%
Uniview Gigabit POE Ethernet Switch (4 Ports, 1 Uplink)
Call us for a price

NSW2010-5GT-POE-IN

- 4x 1000Mbps POE Ports + 1x 1000Mbps Uplink Port
- Total output power 60 watts
- POE+ (max. 30W per port)
- Switch capacity: 10Gbps, Forwarding Performance: 7.44Mbpps, MAC Address Table: 2K
- 48vDC POE Power



Technical Specifications
Ports 4 x 1000Mbps POE ports + 1 x 1000Mbps Uplink
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching Capacity 10Gbps
Forwarding Performance 7.44Mpps
Packet Buffer 1Mbit
MAC Address Table 2K
POE 802.3at/af
Max. PoE Power Max capacity: 60W
Max capacity for single port: 30W
Cooling Fans 0
Working Temperature 0°C - 40°C
Indicator PWR:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal

LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data

Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps (1Gbps)
Working Mode N/A
Power Supply AC: 100-240V, 50/60Hz
Weight <1kg
Dimensions (W x D x H) 140mm x 76.7mm x 27.7mm
