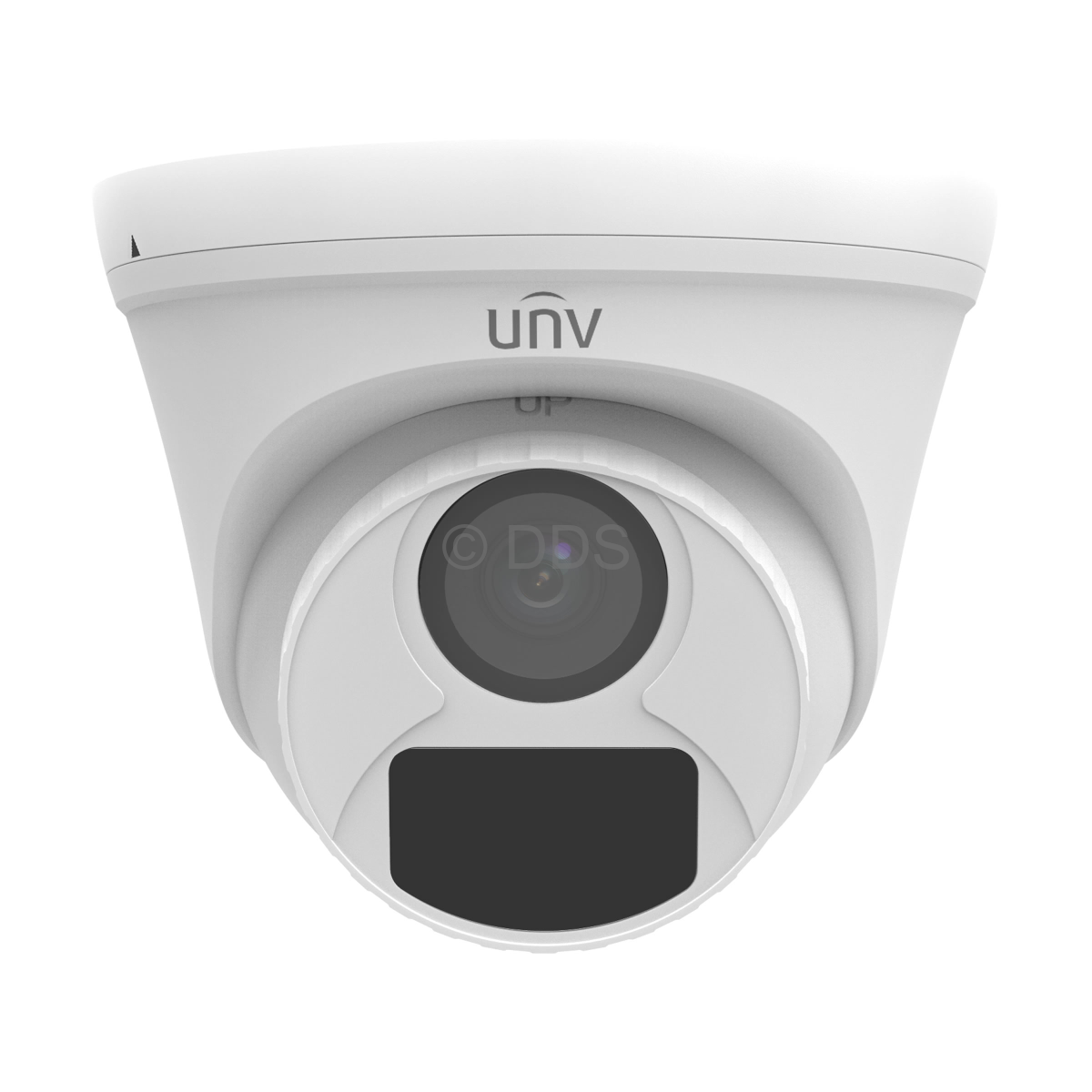

Turret Dome Camera (5MP)
Save
100%
100%
Part of the UNV range, this Uniview turret HD camera boasting an impressive 5 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supports AHD, TVI, CVI & 960H technologies and has a night vision range of 20m.
- Resolution 5MP (2880 x 1620)
- Fixed 2.8mm Lens, Viewing Angle 102.2° (H)
- Smart IR, Up To 20m IR Range
- Day/Night, IR Cut Filter, 2D DNR
- WDR, OSD
- Supports H.264 or H.265
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Built-in surge protection, up to 4kV
- IP67 Rated
Camera
Image Sensor:
CMOS (1/2.7")
Resolution:
5MP
Effective Pixels (H x V):
2880 x 1620
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/25~1/50000s
Signal-to-noise Ratio:
>56dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
dWDR
Digital Noise Reduction:
2D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.8mm Lens
Field of View:
102.2°
Scanning:
Progressive Scan
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.02Lux, 0Lux with IR on
IR Range:
15-20m
IR Control:
CDS Auto
General
Power:
DC 12V±25%
Housing:
Plastic
Power Consumption:
Max 5.04W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
≤95% RH
Ingress Protection:
IP67
Approvals:
CB / CE / FCC
Weight:
182g
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
