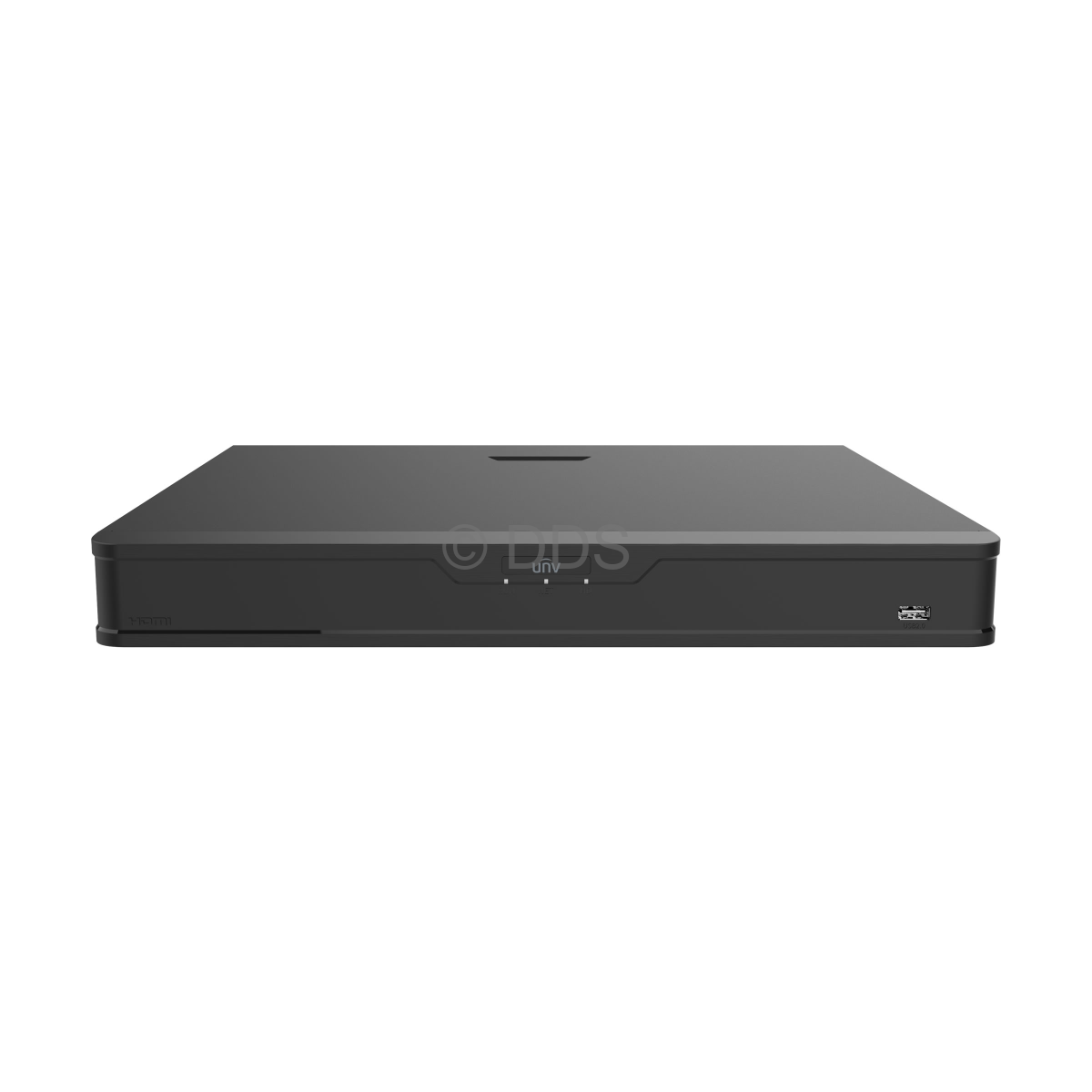

UNV Hybrid DVR (32ch: 16HD+16IP)

Call us for a price

XVR302-16U3

UNV Hybrid DVR range, this DVR (Digital Video Recorder) has HD recording and playback of all channels. It includes a user-friendly mouse driven interface with full remote network and mobile phone access. The DVR can also auto-detect ONVIF compatible IP cameras; it also supports AHD, TVI, CVI, and Analogue cameras.

- 32 Channel Video & Audio (up to 16 BNC and up to 16 IP cameras)
- Hybrid DVR (5-in-1)
- Supports up to 8MP Cameras
- Supports Audio-over-Coax Cameras (TVI only)
- Bandwidth IN: 80Mbps, OUT: 160Mbps
- HDMI, VGA & CVBS Output
- ONVIF Compliance (Profiles S, T)
- Supports H.264 and H.265
- Fanless design
- Two-way Audio
- Mac Compatible
- Compatible with Sentinel Remote Monitoring



Click here to select Hard Drive options

Video/Audio Input

Video Input:
32ch H.264/H.265
Incoming Bandwidth:
80Mbps
Outgoing Bandwidth:
160Mbps
Audio Input:
1ch, RCA
Supported Technologies:
AHD, TVI, CVI, Analogue, IP

Video/Audio Output

Live View/ Playback/ Recording Resolution:
8MP/5MP/4MP/1080P/720P/D1/VGA/CIF/QCIF
Frame Rate:
8MP@8fps / 5MP@12fps / 4MP@15fps / 1080P@25fps
Playback Capacity:
8ch 1080P/8ch 4MP/8ch 5MP/8ch 8MP
HDMI Output:
3840x2160, 1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768
Audio Output:
1ch, Line out

Hard Disk

Drive quantity:
Up to 2 SATA drives
Drive capacity:
Up to 8TB each

Network

Network Interface:
1 RJ45 10M/100M/1000M
Protocol:
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
POE Interface:
N/A
POE Max Power:
N/A

Storage and Backup

Recording Mode:
Manual, Continuous, Schedule, Motion, Sensor, Pre/Post
Playback:
Search by Time, Calendar, Events
Backup Devices:
Via USB Memory Stick, HDD or over the network
Live View:
1, 4, 6, 8, 9 or 16 screens, Digital Zoom

General

Power Supply:
12V DC
Power Consumption:
Max 12W (without HDD, USB)
Operating Temperature:
-10°C ~ 55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
380mm(W) x 326mm(D) x 53mm(H)

Application

Supported OS:
Windows 10+, MacOS X 10.11+

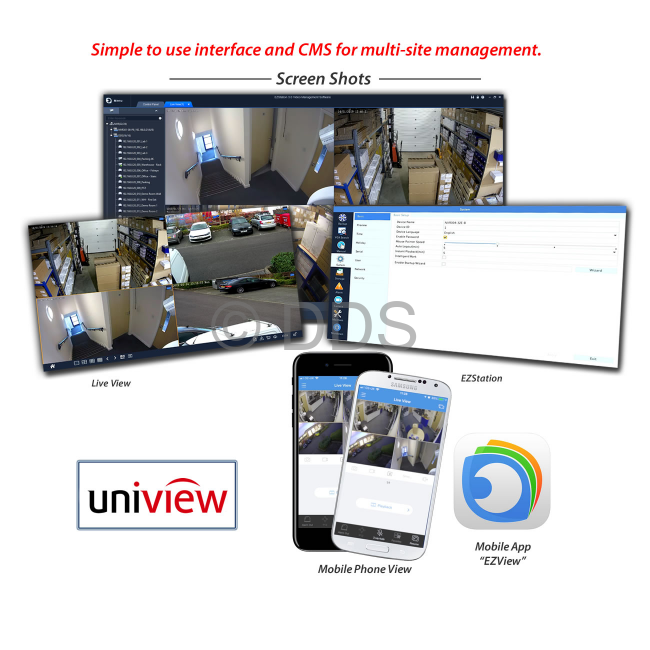

Remote Software:
Internet Explorer 11+, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
EZView
Notifications:
Email or Push

Interface

Video Outputs:
HDMI (x1), VGA (x1), BNC (x1)
USB:
USB 3.0 (x1), USB 2.0 (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x8), Alarm output (x4)
PTZ Control:
Onvif / RS-485
Control:
Mouse control
