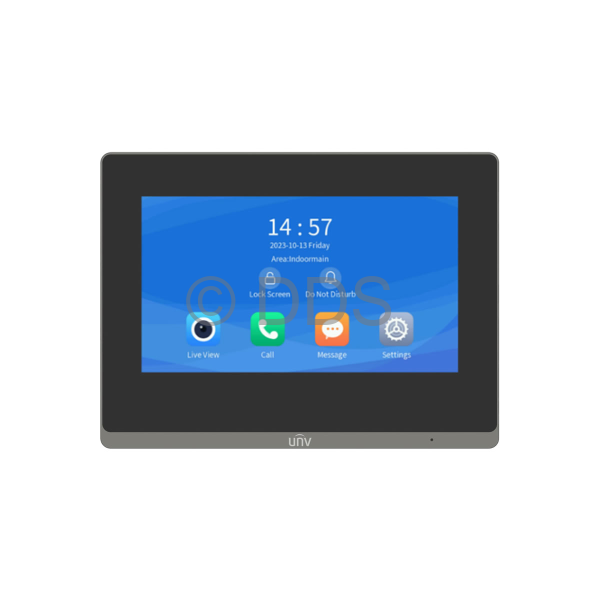

Uniview Indoor Monitor
Save
100%
100%
The indoor monitor supports calls with the indoor monitor and to the app and also supports remotely opening doors/gates. It has a 7 inch touch screen which is able to connect with the outdoor stations as well as IP cameras, for easy access to your CCTV.
- Resolution: 1024 x 600, POE
- Connects with Outdoor Stations and IP Cameras
- Built-in Microphone
- Built-in Speaker
- Support Wi-Fi
| Technical Specifications | |
| Display Size | 7-inch |
| Display Type | Ultra-thin TFT LCD touch screen |
| Display Resolution | 1024 x 600 |
| Operating System | Linux |
| Audio quality | Noise reduction, echo cancellation, auto gain control |
| Protocol | Uniview private protocol |
| Audio compression | G711, MP3 (128kbps) |
| Ingress protection | N/A |
| Interface | Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), IO input (x4) |
| Door Lock | 2 relay, Max. 30VDC 2A/ 125VAC 0.5A |
| Onboard Recording | Maximum 32GB MicroSD, capable of storing 100 live video snapshots, 200 call records and call snapshots |
| Power | DC12V ±25% or PoE Consumption: <10W |
| Network | Network Port: 10/100mbps Wi-Fi: 802.11 b/g/n |

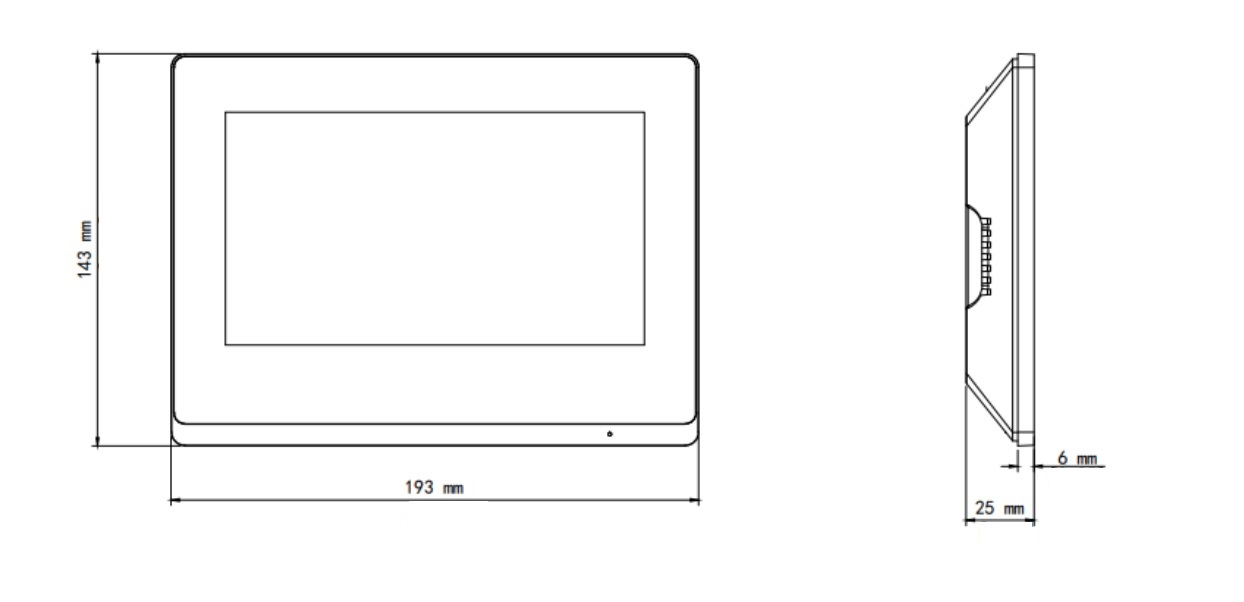

| Dimensions | 193.2mm x 143.4mm x 25mm |
All dimensions are in millimetres (mm)
