Uniview Intercom Kit

Home/Uniview IP/Uniview Intercoms/Uniview Intercom Kit

3 of 8

Save
100%

Call us for a price

Order Code: KIT/201S/372S

Description
Products

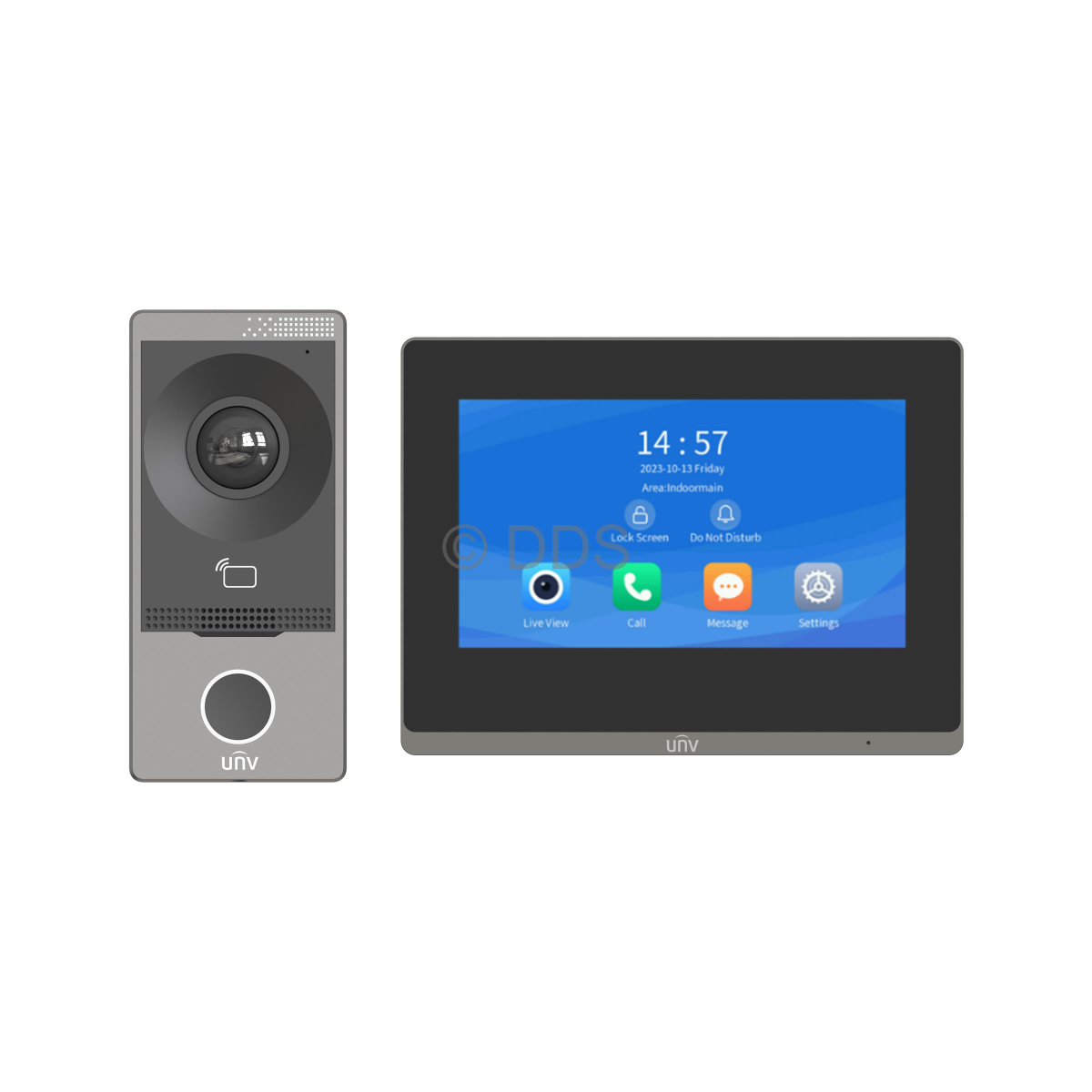

The Uniview video intercom kit comprises the indoor monitor (OEI-372S-H-W) and outdoor station (OEU-201S-HMK-W). The kit supports calls with the indoor monitor and to the app and also supports remotely opening doors/gates. The outdoor station features an IC card reader which supports 13.56MHz credentials. The outdoor station features a 2MP camera and infrared.

Kit includes:
- OEI-372S-H-W indoor monitor
- OEU-201S-HMK-W outdoor station
- Mounting brackets
- 32GB MicroSD card
- Power supply x2

Technical Specifications
OEU-201S-HMK-W (Outdoor Station)
Camera Resolution	1920 x 1080
Illumination	Infrared (up to 3m)
WDR	Supported
Field of View	Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2°
Audio quality	Noise reduction, echo cancellation, auto gain control
Protocol	Uniview private protocol
Audio compression	PCM, G711, MP3 (128kbps)
Ingress protection	IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08
Interface	Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), IO input (x4)
Card capacity	10,000 (supports 13.56MHz)
Power	DC12V ±25% or PoE Consumption: <10W
Network	Network Port: 10/100mbps Wi-Fi: 802.11 b/g/n
Dimensions	79mm x 171mm x 34mm
OEI-372S-H-W (Indoor Monitor)
Display Size	7-inch
Display Type	Ultra-thin TFT LCD touch screen
Display Resolution	1024 x 600
Operating System	Linux
Audio quality	Noise reduction, echo cancellation, auto gain control
Protocol	Uniview private protocol
Audio compression	G711, MP3 (128kbps)
Ingress protection	N/A
Interface	Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), IO input (x4)
Door Lock	2 relay, Max. 30VDC 2A/ 125VAC 0.5A
Onboard Recording	32GB MicroSD card, capable of storing 100 live video snapshots, 200 call records and call snapshots
Power	DC12V ±25% or PoE Consumption: <10W
Network	Network Port: 10/100mbps Wi-Fi: 802.11 b/g/n
Dimensions	193.2mm x 143.4mm x 25mm

Save
100%

Uniview Outdoor Station

Order Code: OEU-201S-HMK-W

The Uniview outdoor station has a 2MP camera, giving a clear full HD view. It has a 3m infrared range, built-in microphone and speaker for 2-way audio; as well as an IC card reader which supports 13.56MHz credentials, and 2 door lock interfaces.

- Resolution: 2MP (1920 x 1080), POE
- Smart IR, Up To 3m IR Range
- Built-in Microphone
- Built-in Speaker
- Support Wi-Fi

Call us for a price £136.50 You save: £136.50

Save
100%

Uniview Indoor Monitor

Order Code: OEI-372S-H-W

The indoor monitor supports calls with the indoor monitor and to the app and also supports remotely opening doors/gates. It has a 7 inch touch screen which is able to connect with the outdoor stations as well as IP cameras, for easy access to your CCTV.

- Resolution: 1024 x 600, POE
- Connects with Outdoor Stations and IP Cameras
- Built-in Microphone
- Built-in Speaker
- Support Wi-Fi

Call us for a price £127.00 You save: £127.00
