Uniview Intercom Kit
Save
100%
100%

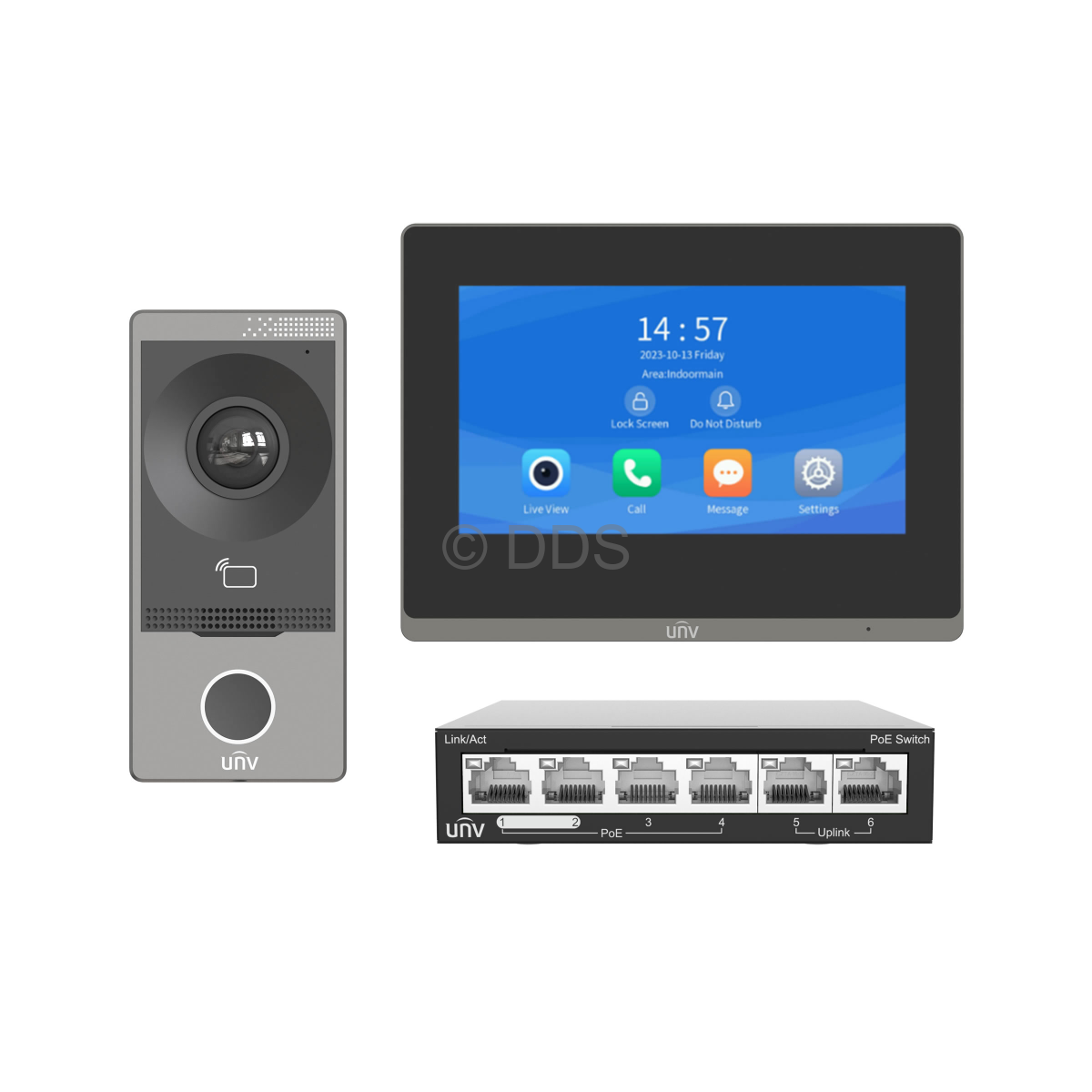

The Uniview video intercom kit comprises of the indoor monitor (OEI-372S-H-W), outdoor station (OEU-201S-HMK-W) and a 4 port POE switch (NSW2020-6T-POE-IN). The kit supports calls with the indoor monitor and to the app and also supports remotely opening doors/gates. The outdoor station features an IC card reader which supports 13.56MHz credentials. The outdoor station features a 2MP camera and infrared.
Kit includes:
- OEI-372S-H-W indoor monitor
- OEU-201S-HMK-W outdoor station
- NSW2020-6T-POE-IN POE switch
- Mounting brackets
- 32GB MicroSD card
| Technical Specifications | |
| OEU-201S-HMK-W (Outdoor Station) | |
| Camera Resolution | 1920 x 1080 |
| Illumination | Infrared (up to 3m) |
| WDR | Supported |
| Field of View | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
| Audio quality | Noise reduction, echo cancellation, auto gain control |
| Protocol | Uniview private protocol |
| Audio compression | PCM, G711, MP3 (128kbps) |
| Ingress protection | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 |
| Interface | Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), IO input (x4) |
| Card capacity | 10,000 (supports 13.56MHz) |
| Power | DC12V ±25% or PoE Consumption: <10W |
| Network | Network Port: 10/100mbps Wi-Fi: 802.11 b/g/n |
| Dimensions | 79mm x 171mm x 34mm |
| OEI-372S-H-W (Indoor Monitor) | |
| Display Size | 7-inch |
| Display Type | Ultra-thin TFT LCD touch screen |
| Display Resolution | 1024 x 600 |
| Operating System | Linux |
| Audio quality | Noise reduction, echo cancellation, auto gain control |
| Protocol | Uniview private protocol |
| Audio compression | G711, MP3 (128kbps) |
| Ingress protection | N/A |
| Interface | Power supply (x1), network interface (x1), RS485 (x1), door lock interface (x2), IO input (x4) |
| Door Lock | 2 relay, Max. 30VDC 2A/ 125VAC 0.5A |
| Onboard Recording | 32GB MicroSD card, capable of storing 100 live video snapshots, 200 call records and call snapshots |
| Power | DC12V ±25% or PoE Consumption: <10W |
| Network | Network Port: 10/100mbps Wi-Fi: 802.11 b/g/n |
| Dimensions | 193.2mm x 143.4mm x 25mm |
| NSW2020-6T-POE-IN (POE Switch) | |
| Ports | 4 x 100Mbps POE ports + 2 x 100Mbps Uplinks |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching Capacity | 1.2Gbps |
| Forwarding Performance | 0.90Mpps |
| Packet Buffer | 448Kbit |
| MAC Address Table | 1K |
| POE | 802.3at/af |
| Max. PoE Power | Max capacity: 60W Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Working Temperature | 0°C - 40°C |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input PoE-MAX: Off: Total PoE power in use is <80% Steady on: Total PoE power in use is >85% LINK/ACT: |
| Working Mode | Default (Normal mode): All ports can communicate with each other. EXTEND (Surveillance mode): Transmission distance up to 250 meters. |
| Power Supply | AC: 100-240V, 50/60Hz |
| Weight | <0.19kg |
| Dimensions (W x D x H) | 108mm x 100mm x 26mm |
